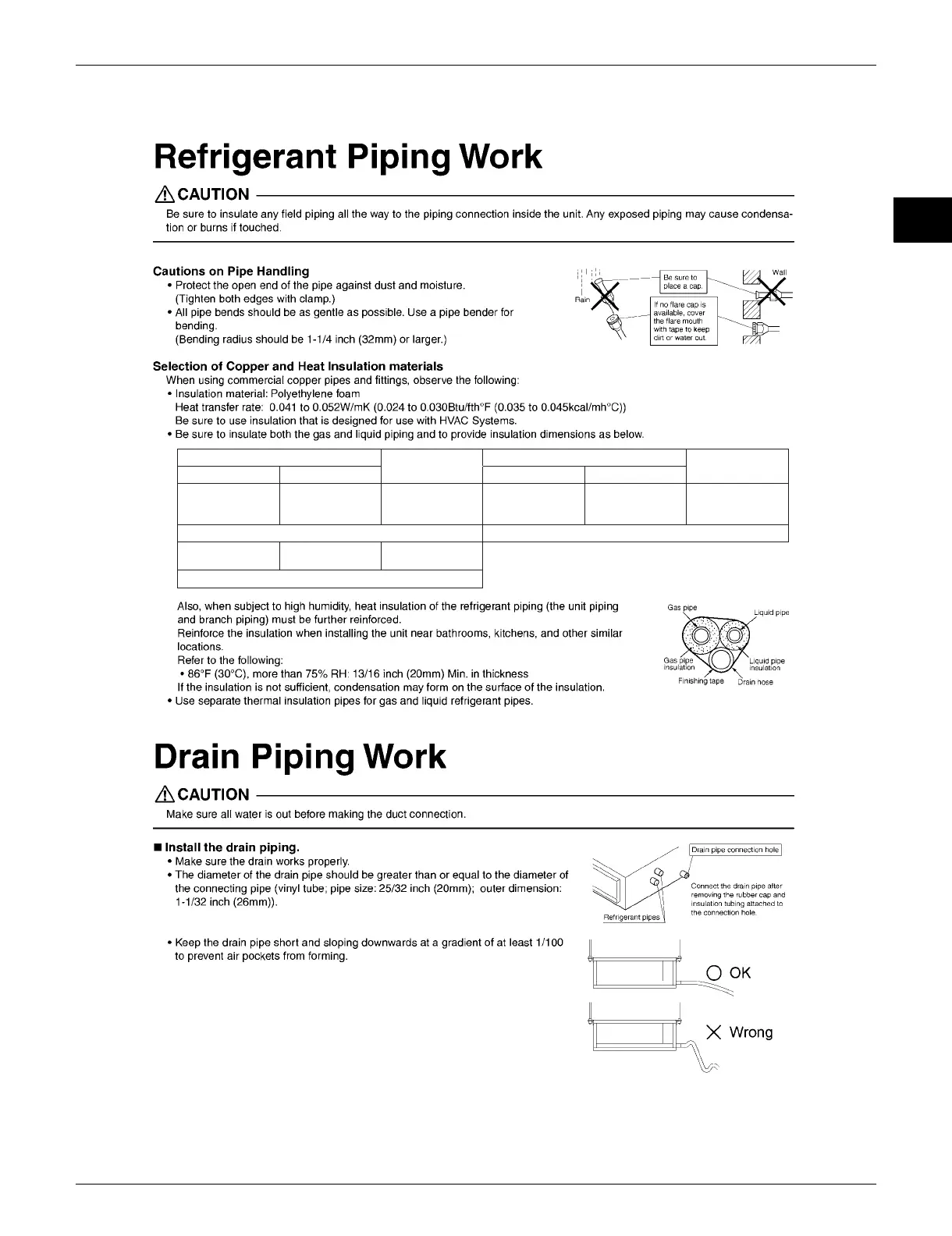

EDUS121131 Indoor Units
Installation Manual 277
2
Gas side
Liquid side
Gas pipe thermal insulation
Liquid pipe thermal
insulation
FDXS CDXS FDXS CDXS
O.D. 3/8 inch
(9.5mm)
O.D. 1/2 inch
(12.7mm)
O.D. 1/4 inch
(6.4mm)
I.D. 15/32-19/32
inch
(12-15mm)
I.D. 9/16-5/8
inch
(14-16mm)
I.D. 5/16-13/32
inch
(8-10mm)
Minimum bend radius Thickness 13/32 inch (10mm) Min.
1-3/16 inch (30mm)
or more
1-9/16 inch (40mm)
or more
1-3/16 inch (30mm)
or more
Thickness 0.031 inch (0.8mm) (C1220T-O)
