Outdoor Unit
Indoor Unit
1. Air outlet
2. Air outlet grille: (Field supply)
• Appearance of the Air outlet grille and Air inlet
grille may differ with some models.
3. Receiver
4. Suction grille: (Option)
• Appearance of the suction grille and Air inlet
grille may differ with some models.
5. Air inlet
6. Room temperature sensor:
• It senses the air temperature around the unit.
7. Operation lamp (green)
8. TIMER lamp (yellow)
9. HOME LEAVE lamp (red):
• Lights up when you use HOME LEAVE
operation.
10. Indoor Unit ON/OFF switch:
• Push this switch once to start operation.
Push once again to stop it.
• This switch is useful when the remote
controller is missing.
•
The operation mode refers to the following table.

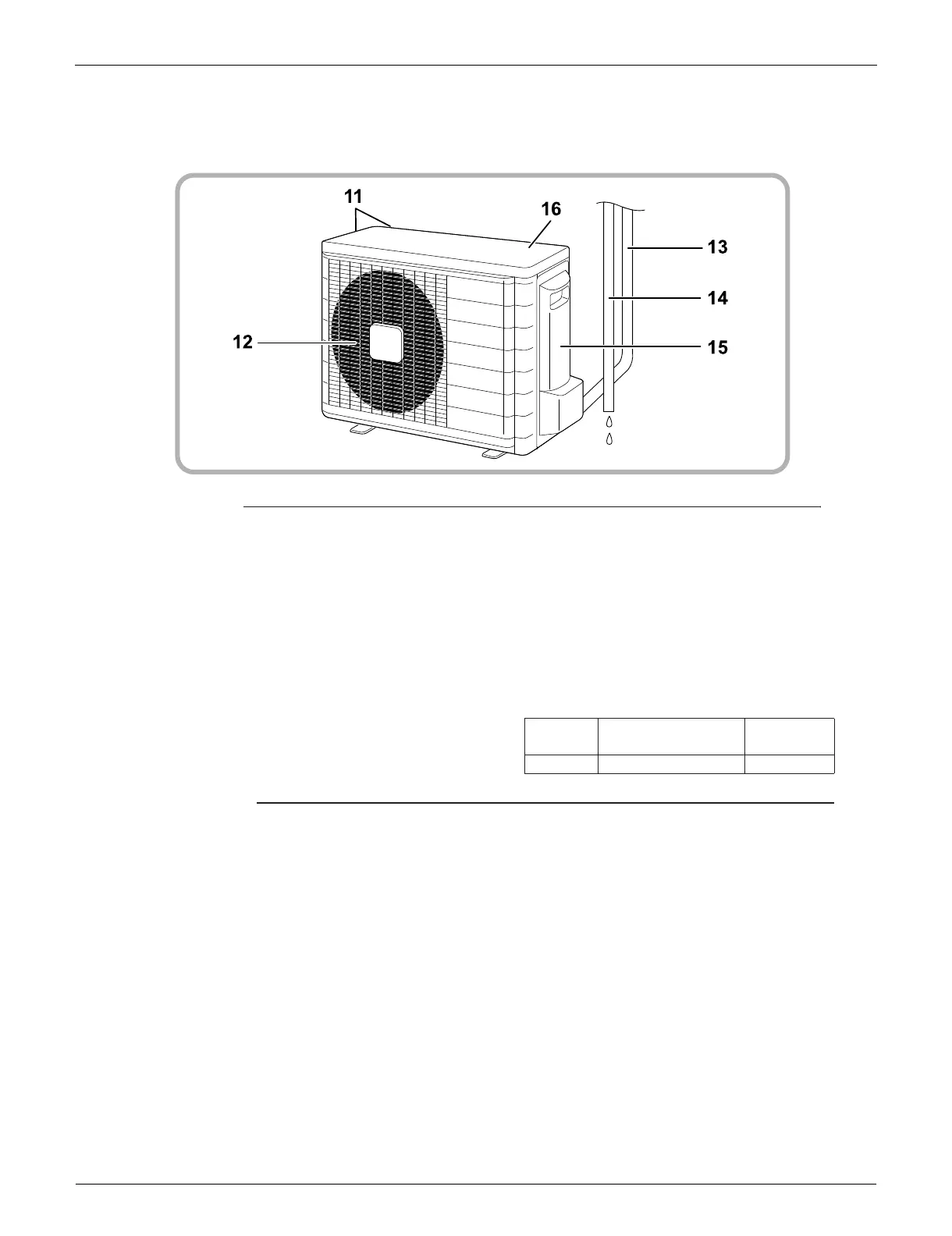

Outdoor Unit
11. Air inlet: (Back and side)
12. Air outlet
13. Refrigerant piping and inter-unit cable
14. Drain hose
15. Earth grounding terminal:
• It is inside of this cover.
16. Outside air temperature sensor:
• It senses the ambient temperature around the
unit.
Appearance of the outdoor unit may differ from some models.
Mode
Temperature
setting
Air flow rate
AUTO 77°F AUTO
