ED34-862 Accessories
FXSQ-M 241
6

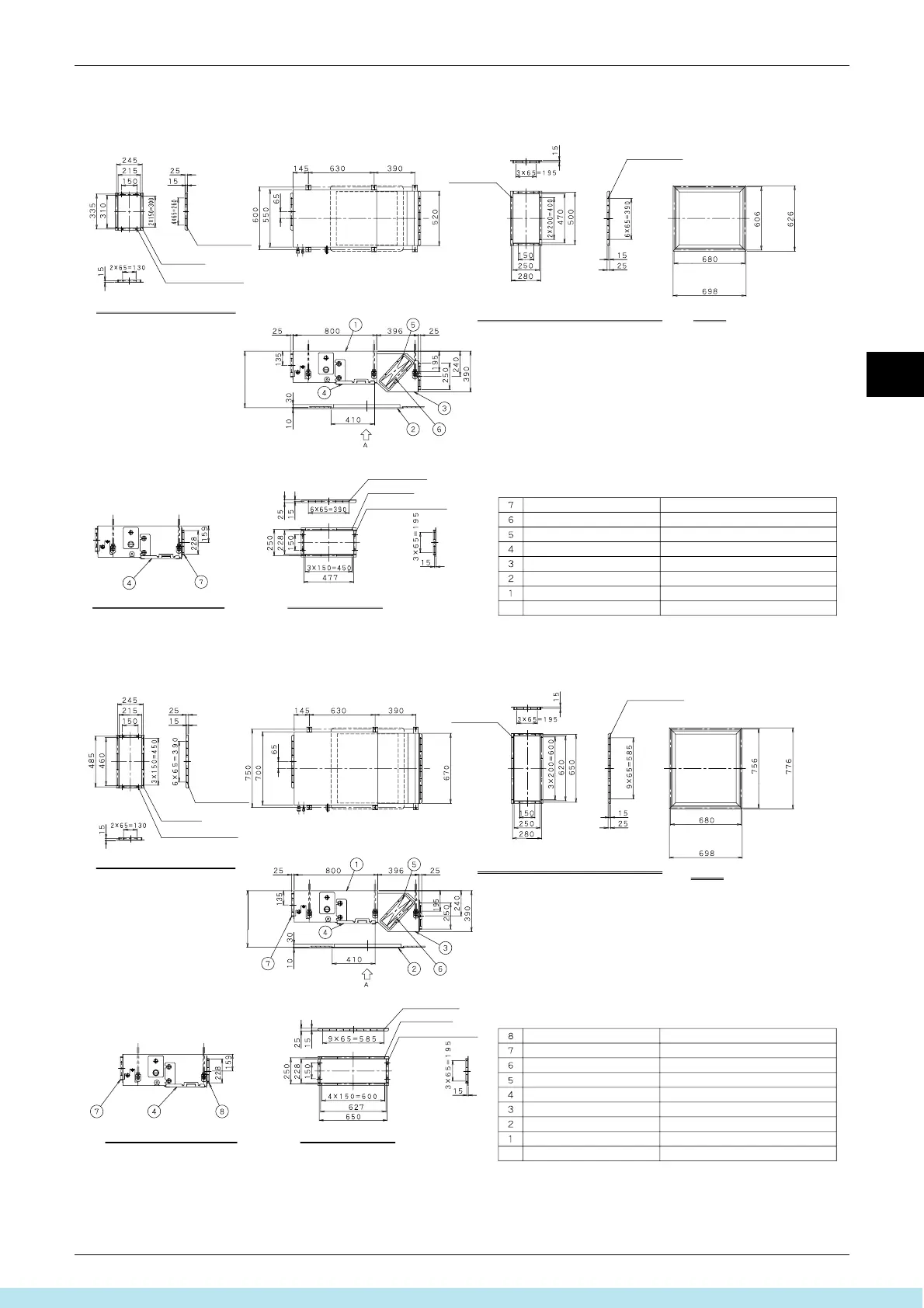

Duct Style Installation
FXSQ20~32M
FXSQ40 · 50M
JC : DU220-248B
Note)
1. When optional accessory other than these kits will be built in, refer to the
external drawing with optional accessories.
2. Parts names ~ show optional accessories.
Number
Suction inlet flange
Long life filter
High efficiency filter
Rear-suction sealing plate
Rear-suction filter chamber
Access panel
Built-in unit body
Name
(with rear-suction sealing plate)
Description
10-φ7 hole
22-φ4.7 hole
16-φ4.7 hole
22-φ4.7 hole
6-φ7 hole
8-φ7 hole
4- key shape hole
4- key shape hole
Details of discharge outlet flange
540 mm or more
Required
installation
space
(Opening on
a ceiling)
(Opening on
a ceiling)
Suction flange
(filter chamber for rear-suction type) details
A view
At installation of suction flange Suction flange details
JC : DU425-2115F
Note)
1. When optional accessory other than these kits will be built in, refer to the
external drawing with optional accessories.
2. Parts names ~ show optional accessories.
Number
Suction inlet flange
Suction flange
Long life filter
High efficiency filter
Rear-suction sealing plate
Rear-suction filter chamber
Access panel
Built-in Hi type body
Name
(with rear-suction sealing plate)
Description
12-φ7 hole
28-φ4.7 hole
20-φ4.7 hole
28-φ4.7 hole
8-φ7 hole
10-φ7 hole
4- key shape hole
4- key shape hole
Details of discharge outlet flange
(Opening on
a ceiling)
(Opening on
a ceiling)
Suction flange
(filter chamber for rear-suction type) details
A view
At installation of suction flange Suction flange details
540 mm or more
Required
installation
space
