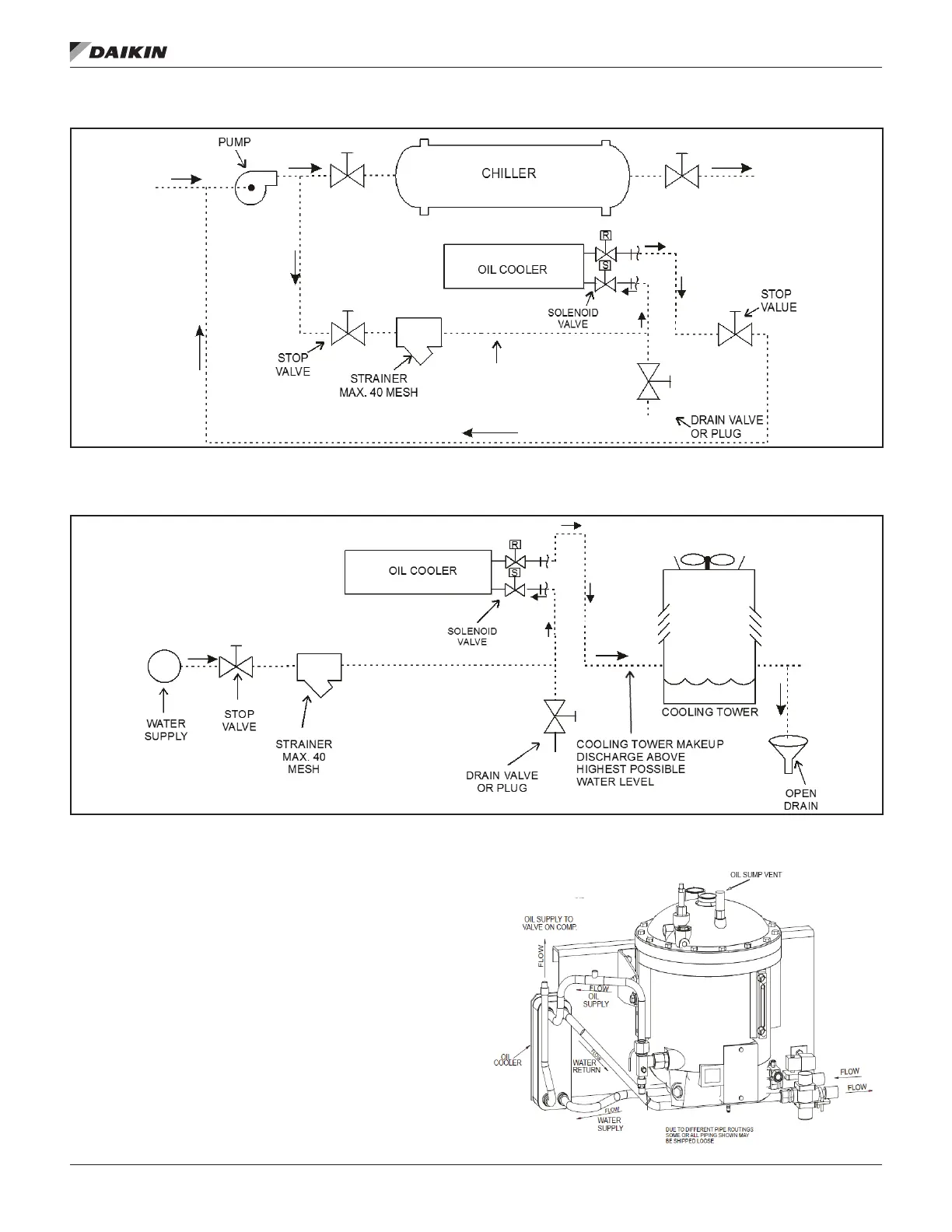

Figure 9: Oil Cooler Piping Across Chilled Water Pump - Models WSC/HSC/TSC 079-126
NOTE:
Figure 10: Oil Cooler Piping With City Water - Models WSC/HSC/TSC 079-126
Oil Heater
The oil sump is equipped with an immersion heater that is
installed in a tube so that it can be removed without disturbing
the oil.
Figure 11: Oil Cooler - Oil Sump Water Connections
Models 079-126
