Air Conditioner Service Manual
70

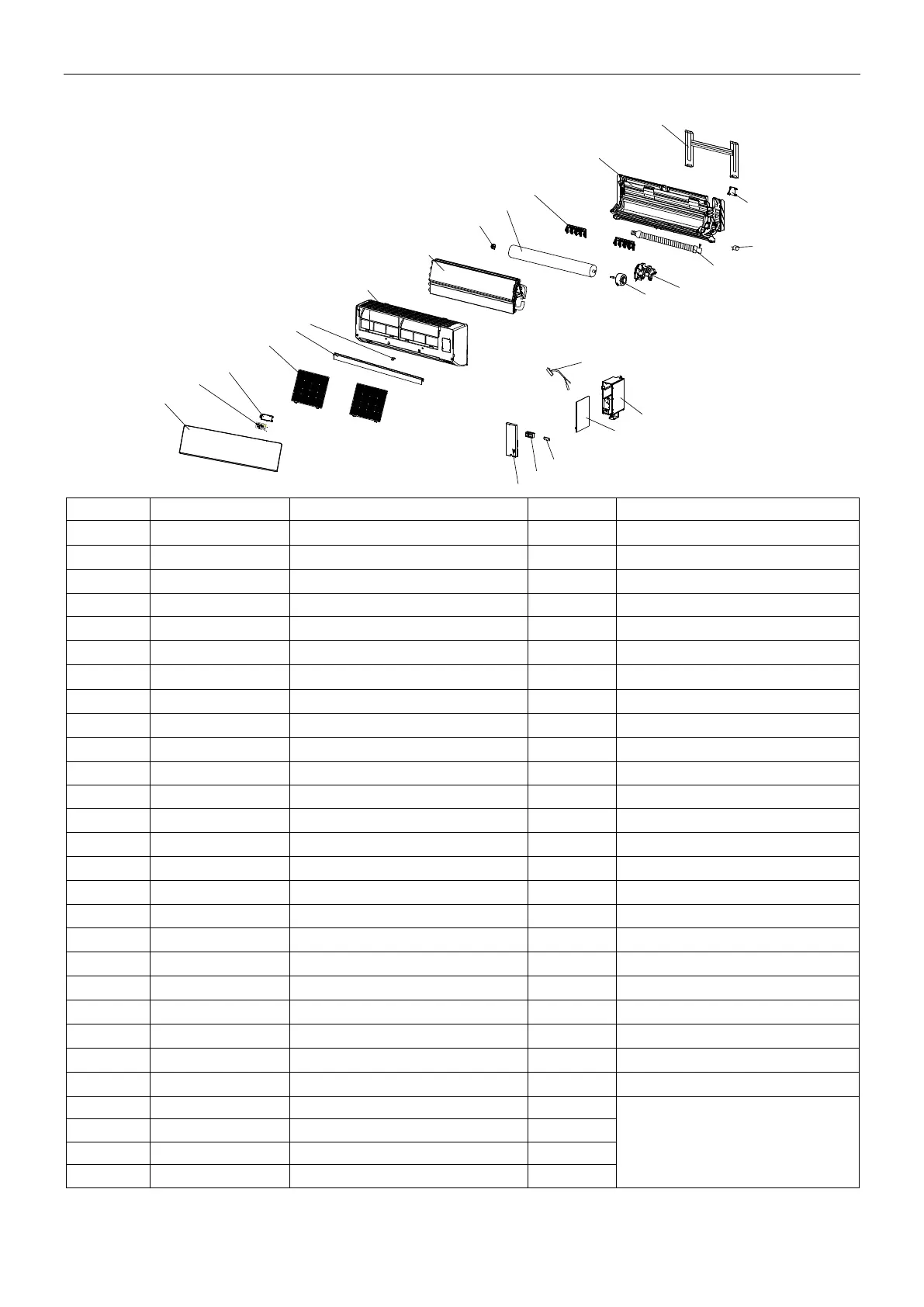

Indoor Unit- DS-12KIDT-2(W)
20
21
23
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
22
18
24
19
No.
Part No.
Part Name
Q’ty
Remark
1
41109-000042
Installation Plate
1
2
41199-002735
Base
1
3
41101-000081
Vertical Vane Assembly
2
4
42004-000039
Cross Fan
1
5
42007-000001
Bearing Mount
1
6
92011-002804
Evaporator
1
7
41106-002371
Face Frame
1
8
41108-000066
Screw Cover
1
9
41103-000101
Vane
1
10
42008-000037
Air Filter
2
11
42003-000016
Display PCB Box
1
12
31102-000085
Display PCB
1
13
41106-001204
Front Panel
1
14
41201-000068
Electrical Box Cover
1
15
11304-100028
Terminal
1
16
42001-000103
Cable Clamp
1
17
31101-000186
Main PCB
1
18
41105-000104
Electrical Box
1
19
10104-100014
Indoor Sensor Assembly
1
20
22001-000262
Indoor Motor
1
21
42003-000060
Indoor Motor Cover
1
22
42009-000011
Drainage Hose
1
23
22001-000313
Vane Motor
1
24
41101-000242
In And Out Pipe Fixer
1
25
22013-001432
Remote Controller
1
Not shown in Explosion view
26
A1101-003130
Indoor Carton
1
27
A2006-000052
Left Foaming
1
28
A2006-000032
Right Foaming
1
