Air Conditioner Service Manual
71

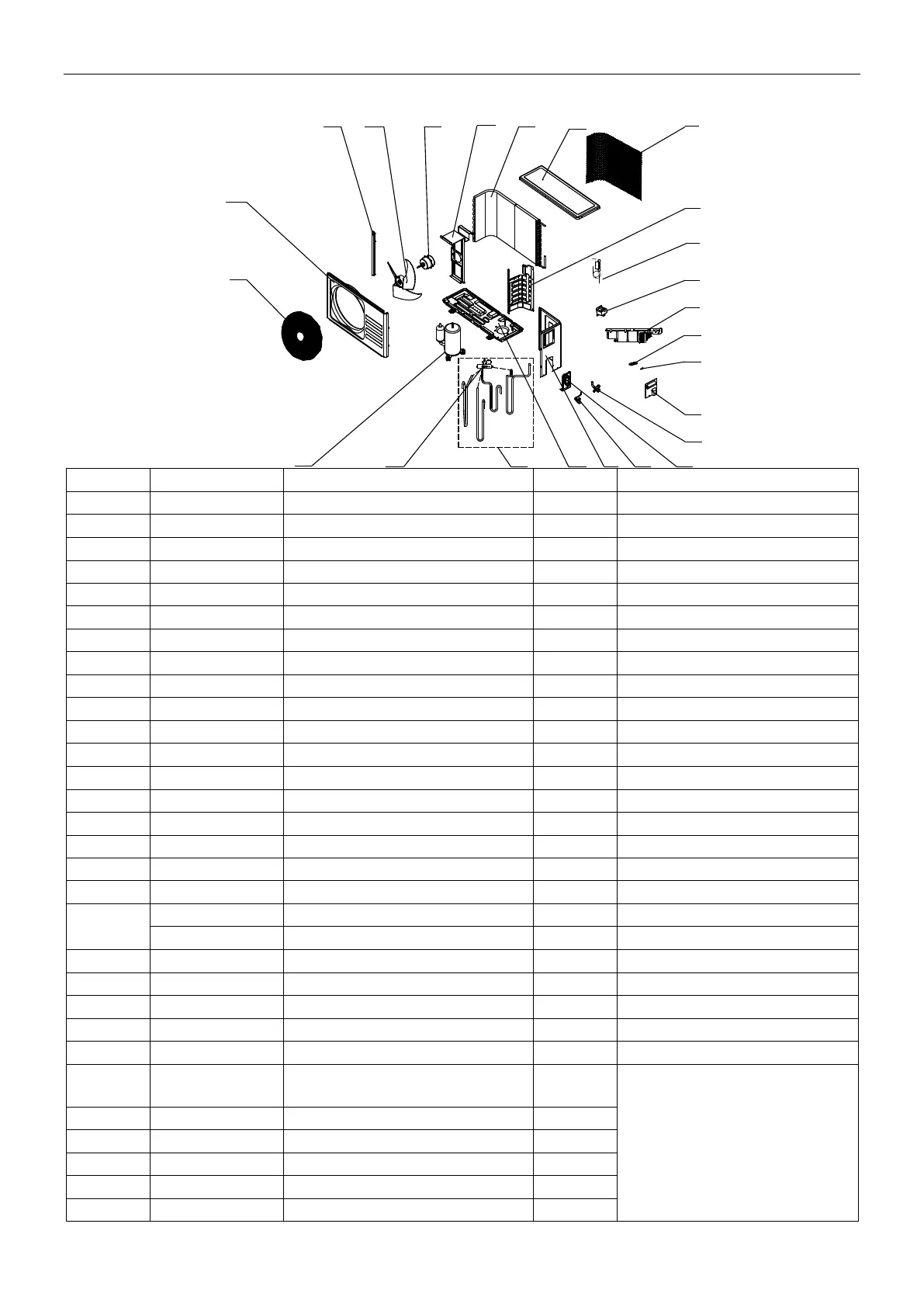

Outdoor Unit- DOS-12KIDT-2(W)
10
11
12
8
9
7
6
5
17
13
14
16
15
19
18
20
21
23
22
24
4
3
2
1
25
No.
Part No.
Part Name
Q’ty
Remark
1
42011-000127
Grille
1
2
41207-000029
Top cover
1
3
92011-000657
Condenser
1
4
41203-000054
Outdoor motor supporter
1
5
22001-000049
Outdoor motor
1
6
42004-000107
Propeller fan
1
7
41205-000121
Left grille supporter
1
8
41206-000054
Front plate
1
9
42011-000100
Fan guard
1
10
92014-000542
Compressor and accessories
1
11
92008-000209
4-way valve
1
12
92007-000950
4-way valve assembly
1
13
41202-000177
Base
1
14
41205-000079
Right plate
1
15
92008-000051
Two-way valve
1
16
41204-000018
Valve supporter
1
17
92008-000146
Three-way valve
1
18
41201-000029
Electronic Box Cover
1
19
42001-000035
Cable clamp
1
42001-000038
Cable clamp
1
20
11304-100004
Terminal
1
21
31201-001003
Outdoor PCB Assembly
1
22
22011-000002
Inductor
1
23
92007-001891
Capillary assembly
1
24
41208-000141
Partition plate
1
25
10104-100030
Pipe Temp. sensor and outdoor
Temp. sensor
1
Not shown in explosion view
26
10104-100034
Discharge Temp. sensor
1
27
A2005-000523
Base carton
1
28
A1201-007583
Cabinet carton
1
29
A1202-000031
Base foaming
1
30
41213-000023
Cover foaming
1
