Air Conditioner Service Manual
72

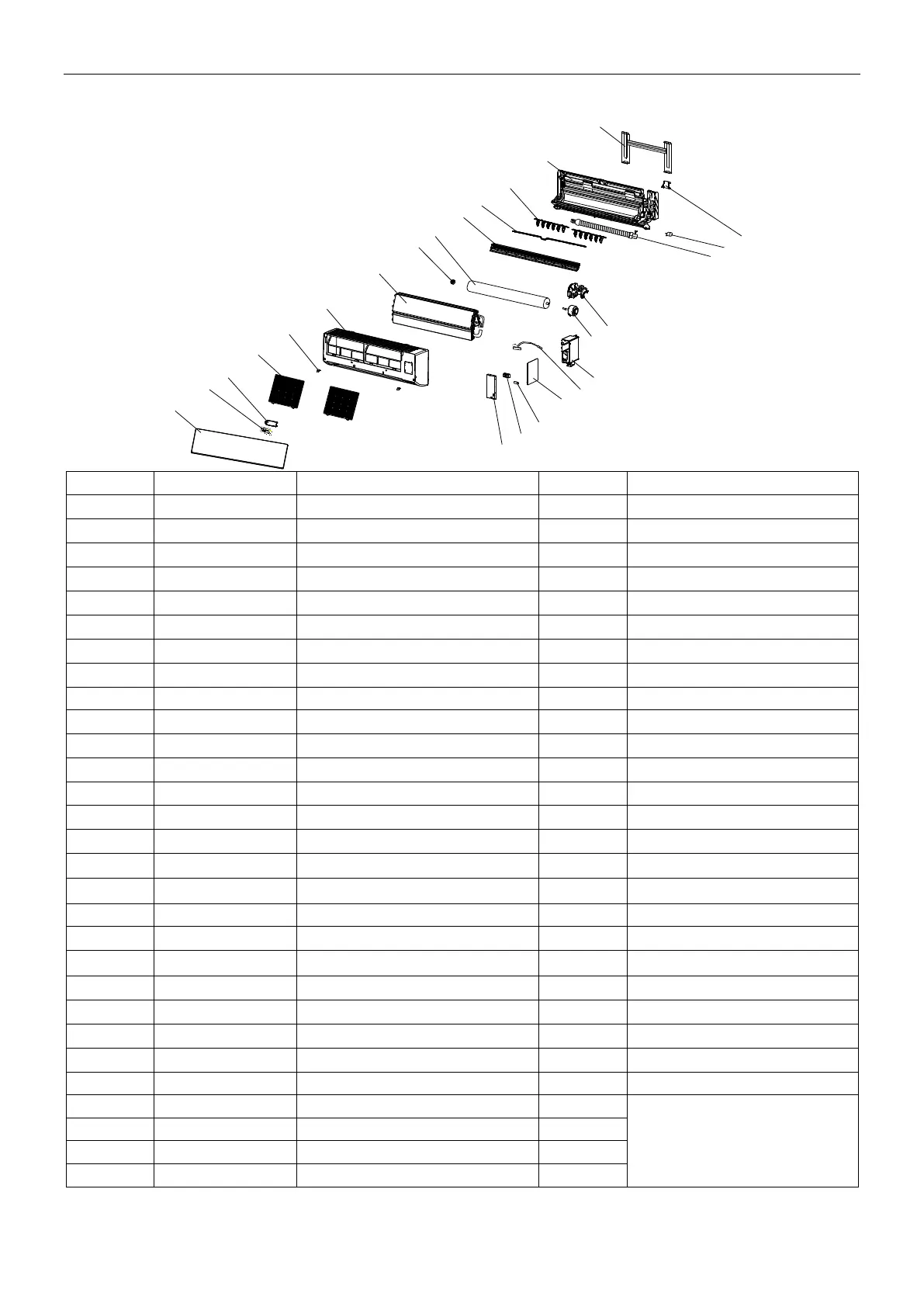

Indoor Unit- DS-18KIDT(W)
18
19
17
14
13
12
11
10
9
8
7
6
5
4
3
2
1
20
21
23
24
25
22
16
15
No.
Part No.
Part Name
Q’ty
Remark
1
41109-000041
Installation Plate
1
2
41102-000048
Base
1
3
41101-000067
Vertical Vane Assembly
1
4
41101-000193
Vertical Vane Connector
1
5
41103-000149
Vane
1
6
42004-000012
Cross Fan
1
7
42007-000001
Bearing Mount
1
8
92011-002777
Evaporator
1
9
41106-002356
Face Frame
1
10
41108-000066
Screw Cover
3
11
42008-000075
Air Filter
1
12
42003-000016
Display PCB Box
1
13
31102-000085
Display PCB
1
14
41106-001867
Front Panel
1
15
41105-000146
Electrical Box Cover
1
16
11304-100028
Terminal
1
17
42001-000103
Cable Clamp
1
18
31101-000058
Main PCB
1
19
10104-100014
Indoor Sensor Assembly
1
20
41105-000104
Electrical Box
1
21
22001-000266
Indoor Motor
1
22
41108-000013
Indoor Motor Cover
1
23
42009-000011
Drainage Hose
1
24
22001-000321
Vane Motor
1
25
41101-000242
In And Out Pipe Fixer
1
26
22013-001432
Remote Controller
1
Not shown in Explosion view
27
A1101-003053
Indoor Carton
1
28
A2006-000046
Left Foaming
1
29
A2006-000027
Right Foaming
1
