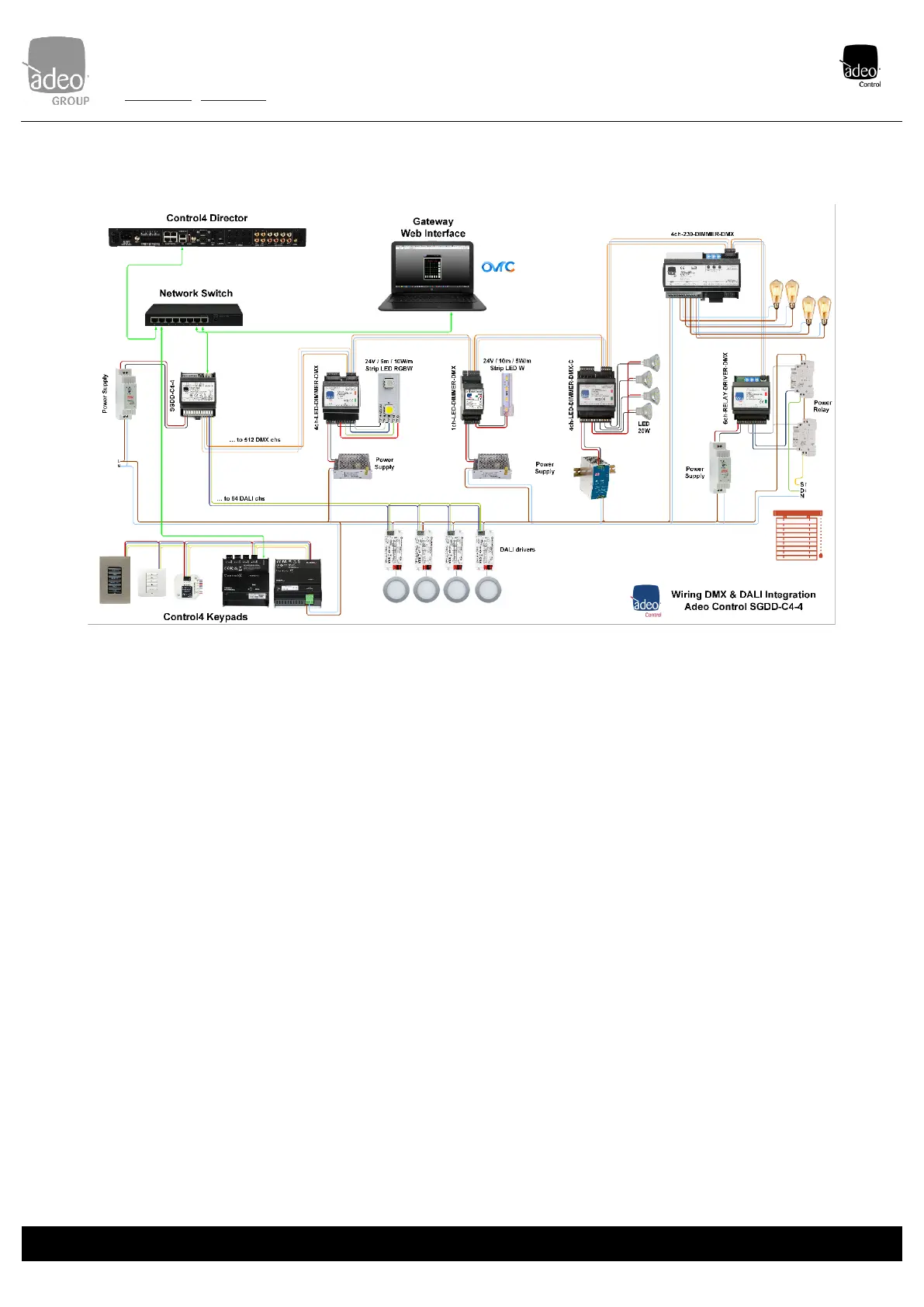

25. DALI and DMX integration example
26. Difference between DALI Type 6 and DALI Type 8
DT6, 'Single-Channel' commands use a single address to control a single channel. DALI type 6 multi-channel commands use X
number of addresses to control X number of channels.
For example, if we need to control an RGB LED strip, we will use 3 addresses (out of 64) to control the 3 colours individually. If the
device provides for it, we could also control the intensity (Master), so we will have to provide an additional address.
DT8 commands use one address to control two or more channels.
For example, if we need to control a Tunable White (or Dynamic White) LED strip, we can use a single address (out of 64) and send
many more commands, which obviously include controlling the intensity and temperature of the light.
