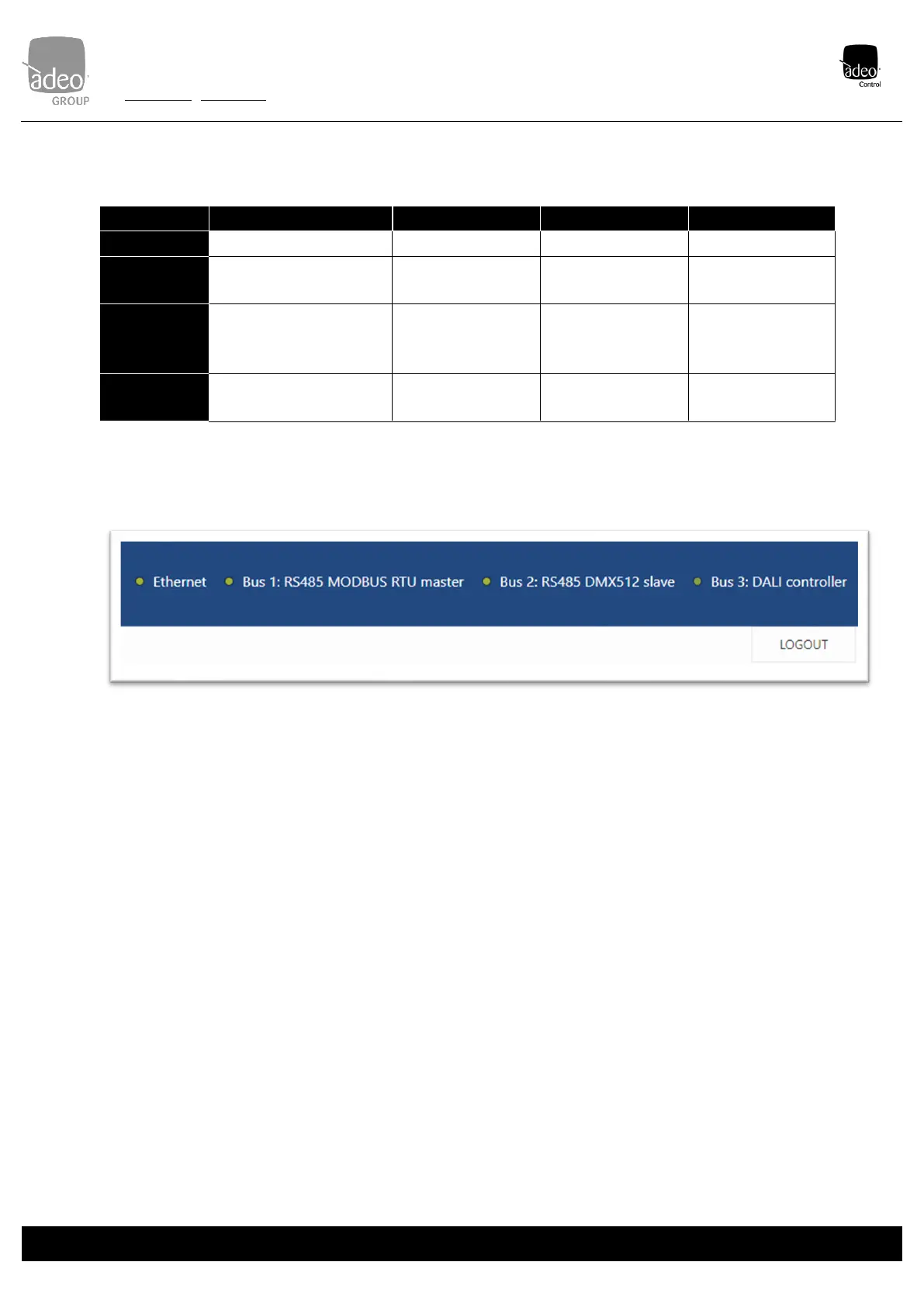

6. Status LED
LED1(left)
LED2
LED3
LED4(right)
Function
Ethernet
BUS1(DMX/RTU)
BUS2(DMX/RTU)
BUS DALI
ON
Connected with Ethernet
communication
Connected with
communication
Connected with
communication
Connected with
communication
Flashing
Ethernet cable connection
Connected without
communication (only
RTU)
Connected without
communication (only
RTU)
Connected without
communication
OFF
Not connected
Not connected
Not connected
Not enabled (without
power supply DALI)
The same status LEDs are also visible at the top right of the web interface, with these statuses:
• GREEN: permanently lit: active;
• FLASHING YELLOW: no communication or not enabled
7. Local Button
The device is equipped with 8 local contacts that cannot be used at present. Future updates are planned.
