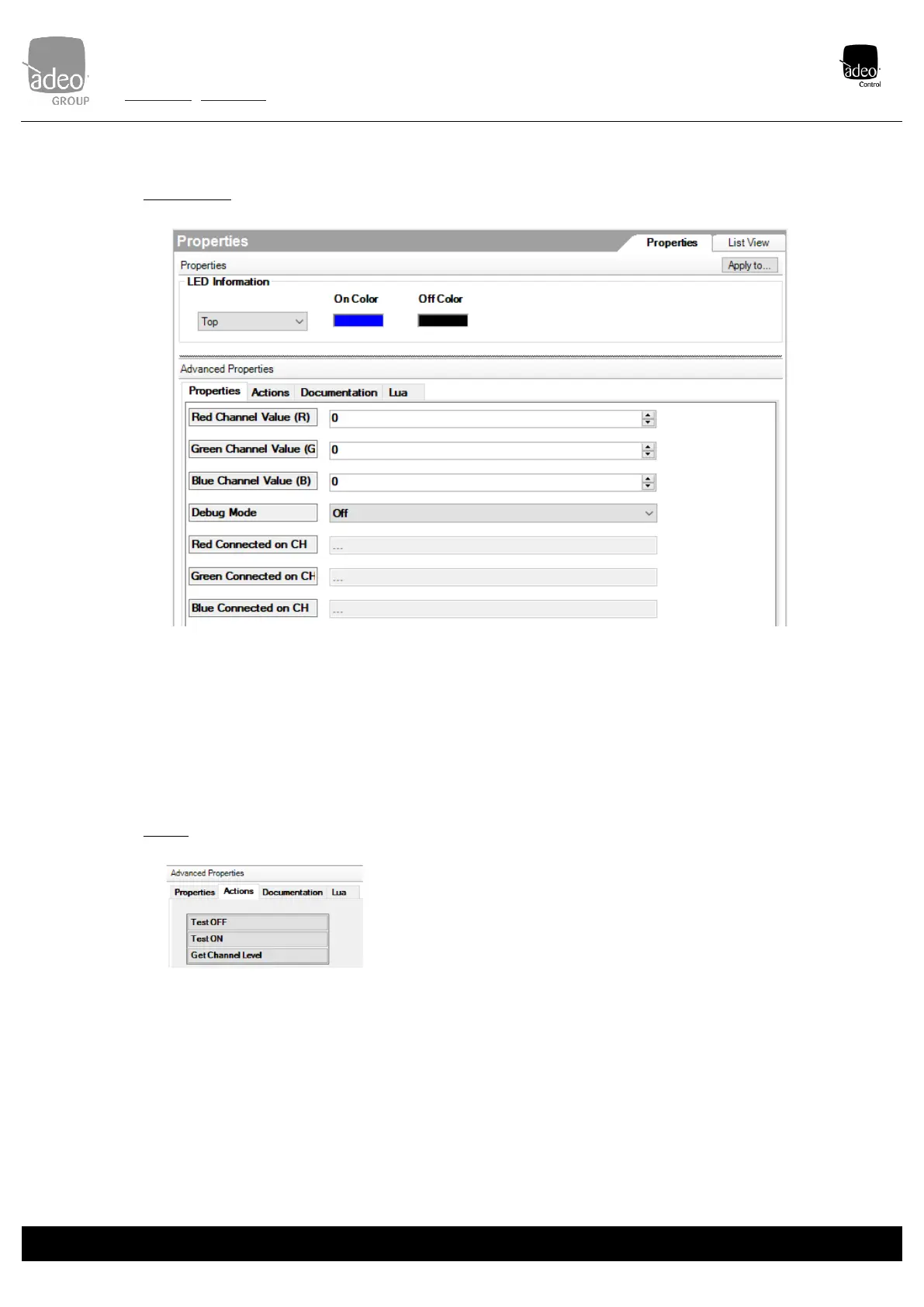

36. Adeo Control SGDD-C4-4 Switch RGB Driver (Adeo_Control_SGDD-C4-4_SW_RGB.c4z)
System Design
Used as a non-dimmable light V2 driver. Supports Advanced Lighting and Keypad Command Assignment.
XXX Channel Value Select the combination of values to obtain the desired RGB color
Debug Mode Turn Debugging on or off in Lua
XXX Connected on CH Automatically shows the channel assigned in Connections
Actions
In Actions you can test the connection and the correct response of
the associated channel.
