3.6 Sensor Output
Color Scan Direction
Purpose: Selects the forward or reverse color scan direction or external
direction control. This accommodates object direction change
on a web and allows you to mount the camera “upside down”.
Syntax:
scd i
Syntax Elements:
i
Shift direction. Allowable values are:
0 = Forward CCD shift direction.
1 = Reverse CCD shift direction.
2 = External direction control via Camera Link control:
CC3 (CC3=1 forward, CC3=0 reverse).
Notes: To obtain the current value of the shift direction, use the
command
gcp or get scd.
Related Commands:
smm
Example:
scd 0

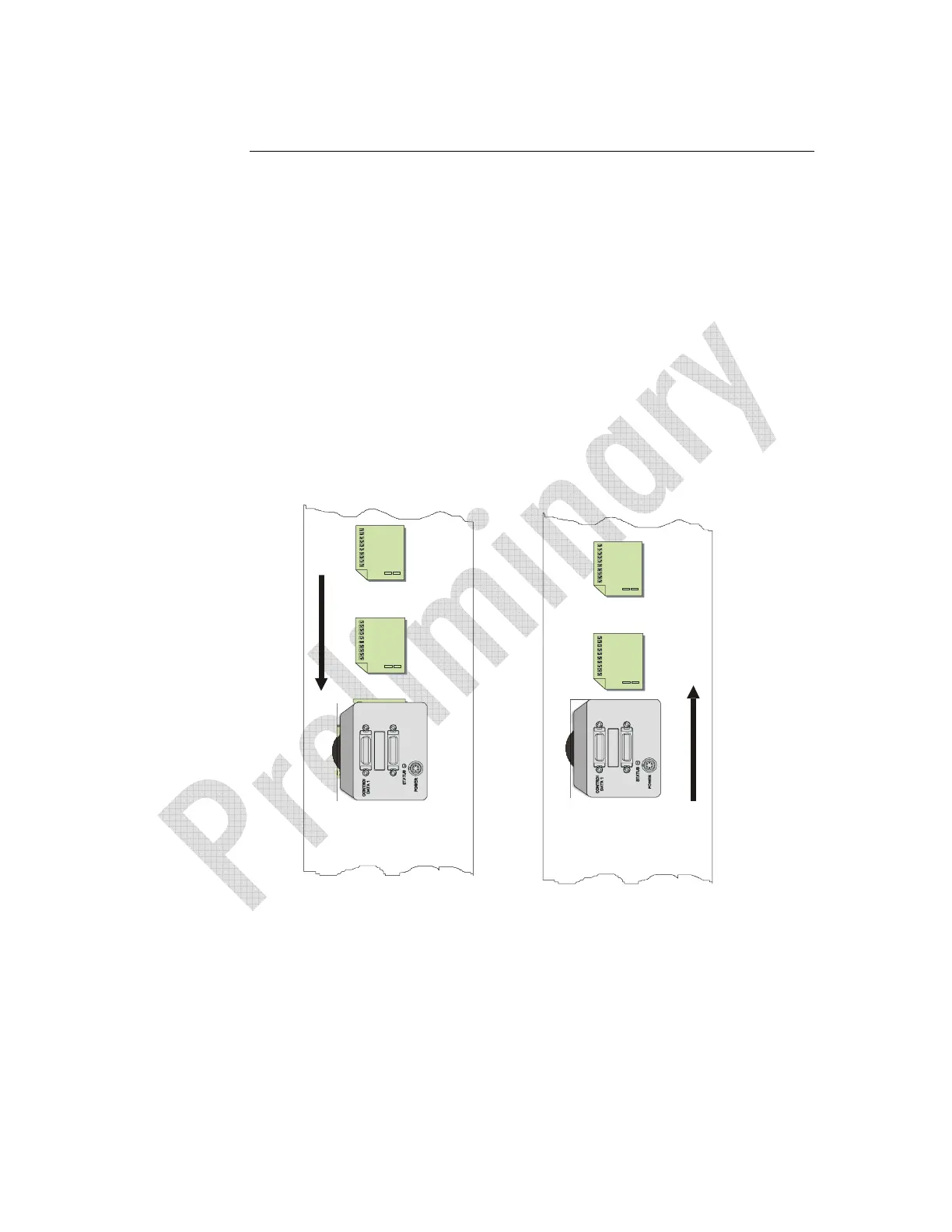

Direction of
Object Movement
Camera should operate in
Reverse CCD Shift Direction
scd 1
Direction of
Object Movement
Camera should operate in
Forward CCD Shift Direction
scd 0
Sensor Readout Direction (Mirroring Mode)
Purpose: Selects the camera’s horizontal readout direction.
Syntax:
smm i
Syntax Elements:
i
Direction of sensor readout
0 = Left to right = 1 to n
1 = Right to left = n to 1
