STANDARD TYPE GEARBOX PARTS LISTS
Dana Incorporated IMM-0018EN - Installation and Maintenance Manual
4.1.2 TYPE: 01L
NOTE:

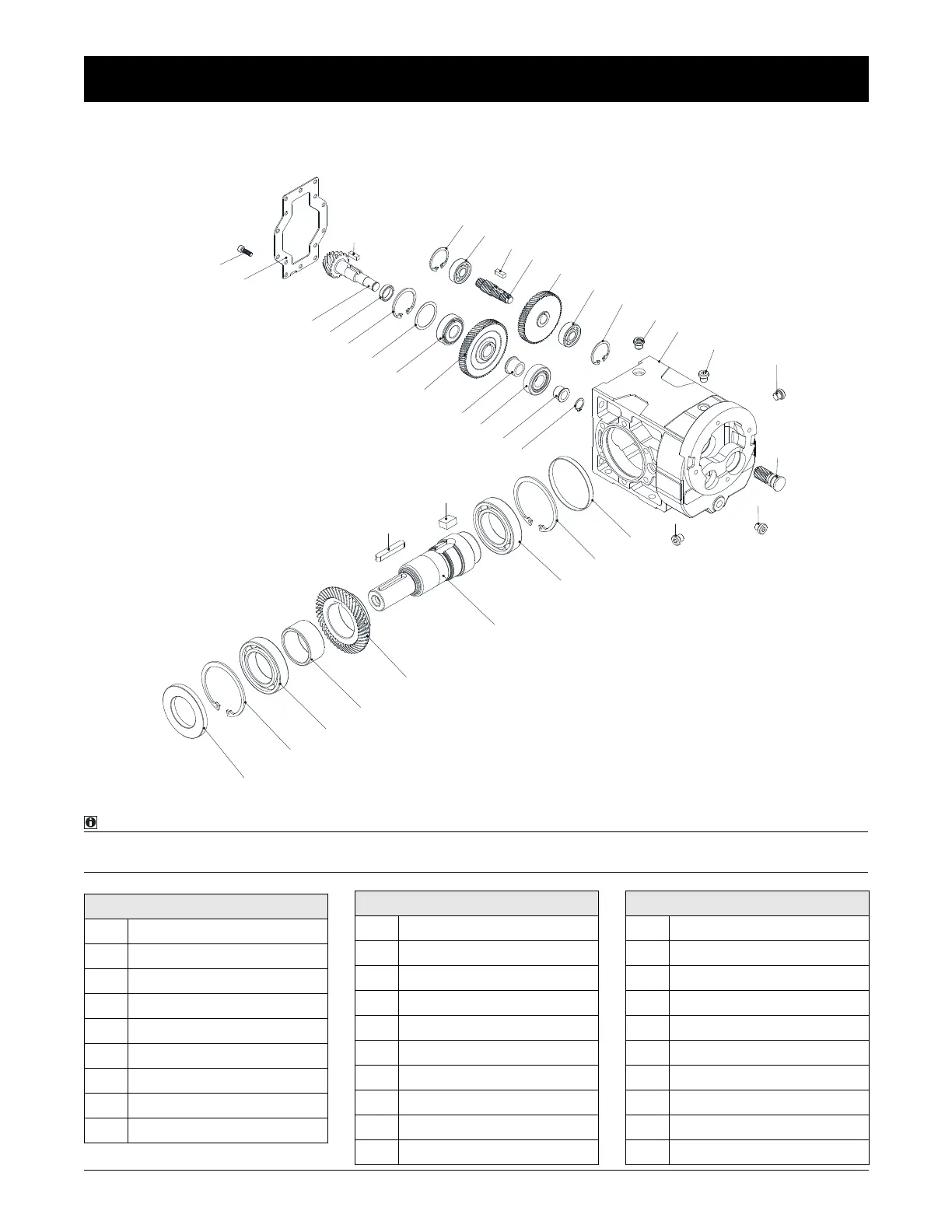

Standard types basic part diagram.
Parts may differ for special applications.
20
4
6
13
23
22
17
5
9
5
14
22
23
18
16
8
10
4
15
21
28
19
7
12
25
29
27
16
2
3
2
2
1
2
11
2
26
24
Standard Part List
1Pinion
2Plug
3Housing
4Circlip
5Bearing
6 Gear
7Pinion Shaft
8Key
9Bolt
10 Cover Plate
11 Key
12 Pinion Shaft
13 Shim Ring
14 Circlip
15 Shim Ring
16 Bearing
17 Gear
18 Spacer
19 Spacer
Standard Part List
20 Circlip
21 Closing Cap
22 Circlip
23 Bearing
24 Key
25 Output Shaft
26 Key
27 Gear
28 Spacer
29 Oil Seal
Standard Part List
