MECHANICAL INSTALLATION
Dana Incorporated IMM-0018EN - Installation and Maintenance Manual

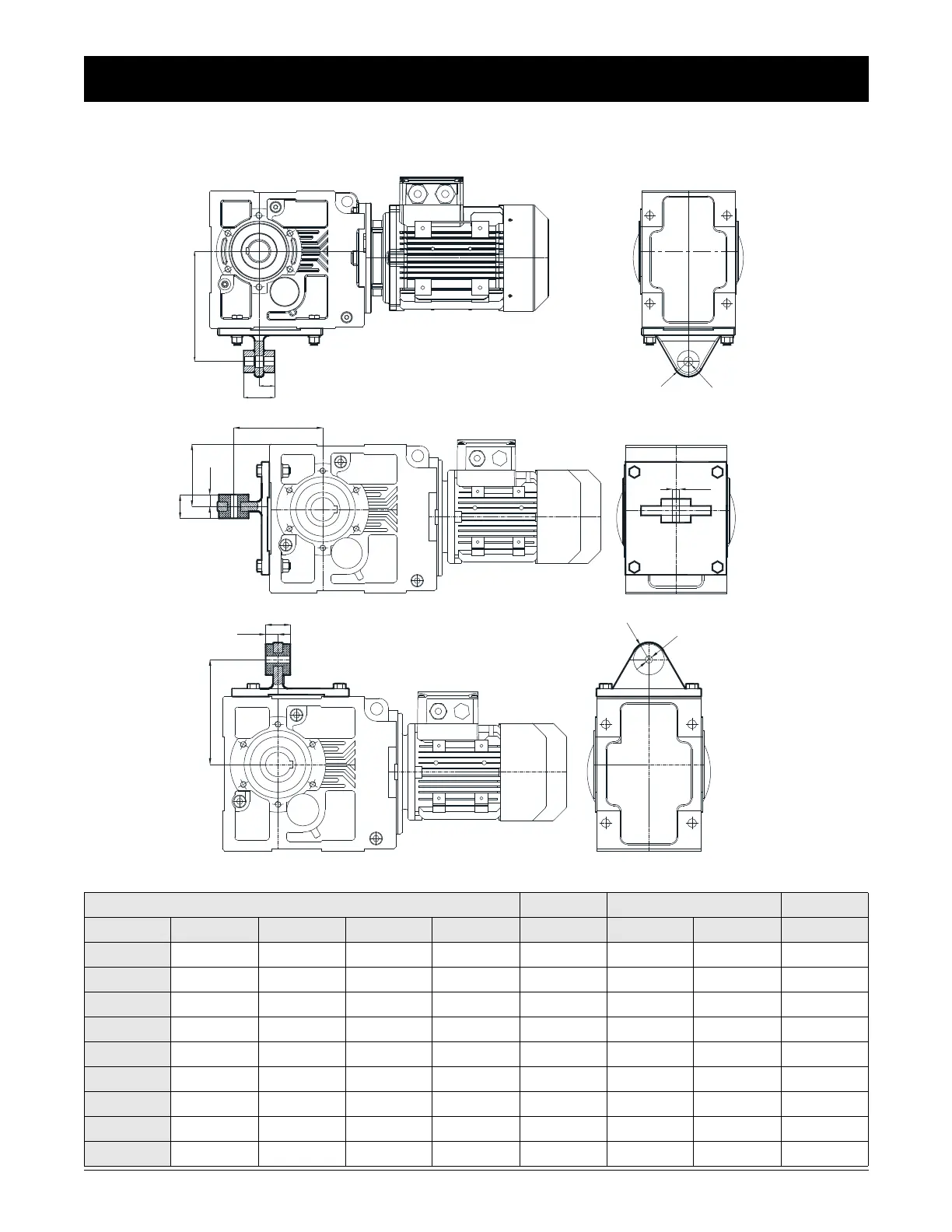

8.11 FOR THE FIXING BOLD POSITION REFER TO THE FOLLOWING DIMENSIONS
Table 10:
Std T1 T2
Type b b1 d R h h1 h2 h3
KR273.10 56 28 Ø17 22,5 160 119 73 141
KR283.10 76 38 Ø22 27,5 192 140 77 150
KR373.10 76 38 Ø22 27,5 200 150 105 170
KR473.10 80 40 Ø22 27,5 250 182 155 210
KR573.10 105 52,5 Ø26 42,5 300 220 180 251
KR673.10 110 55 Ø26 42,5 350 245 200 260
KR773.10 155 77,5 Ø32 50 450 335 260 360
KR873.10 160 80 Ø32 55 550 400 263 410
KR973.10 190 95 Ø38 70 700 530 380 550
Std
T1
T2
d
b
R
h
b1
h2
Ød
b1
b
h1
d
b
R
b1
h3
