MECHANICAL INSTALLATION
41Dana IncorporatedIMM-0018EN - Installation and Maintenance Manual
8.3 DISASSEMBLING CUSTOMER SHAFT WITH SHOULDER

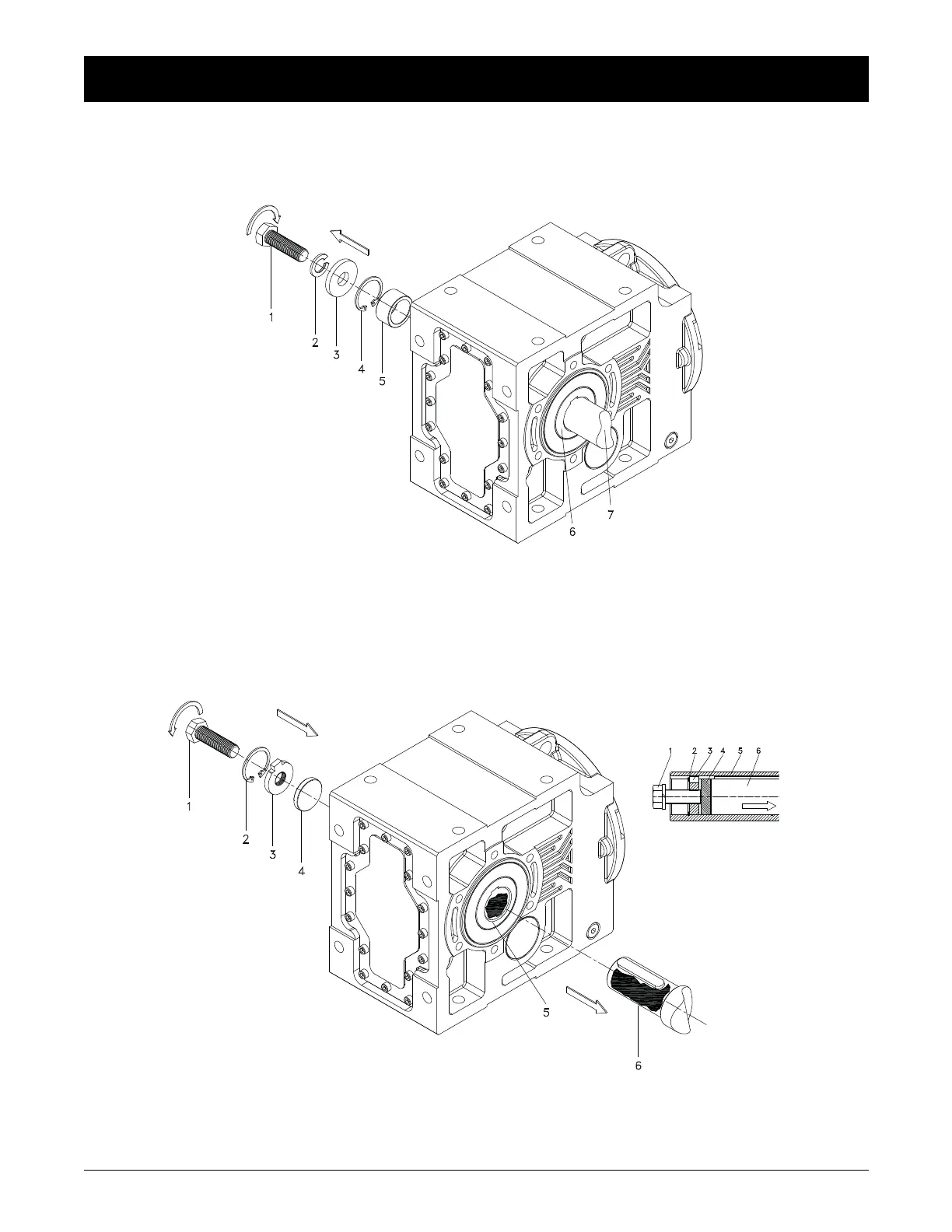

Disassemble the bolt and take out the parts as shown
1 - Short retaining bolt
2 - Lock washer
3 - Washer
4 - Circlip
5 - Hollow shaft
6 - Customer Shaft
Use the disassemble set from YILMAZ REDÜKTÖR and fasten the bold as shown bellow to take out the out-
put shaft. For disassemble sets look the following pages.
1 - Retaining bolt
2 - Circlip
3 - Fixed Nut
4 - Forcing Washer
5 - Hollow shaft
6 - Customer Shaft
