3 UNIT DESIGNATION

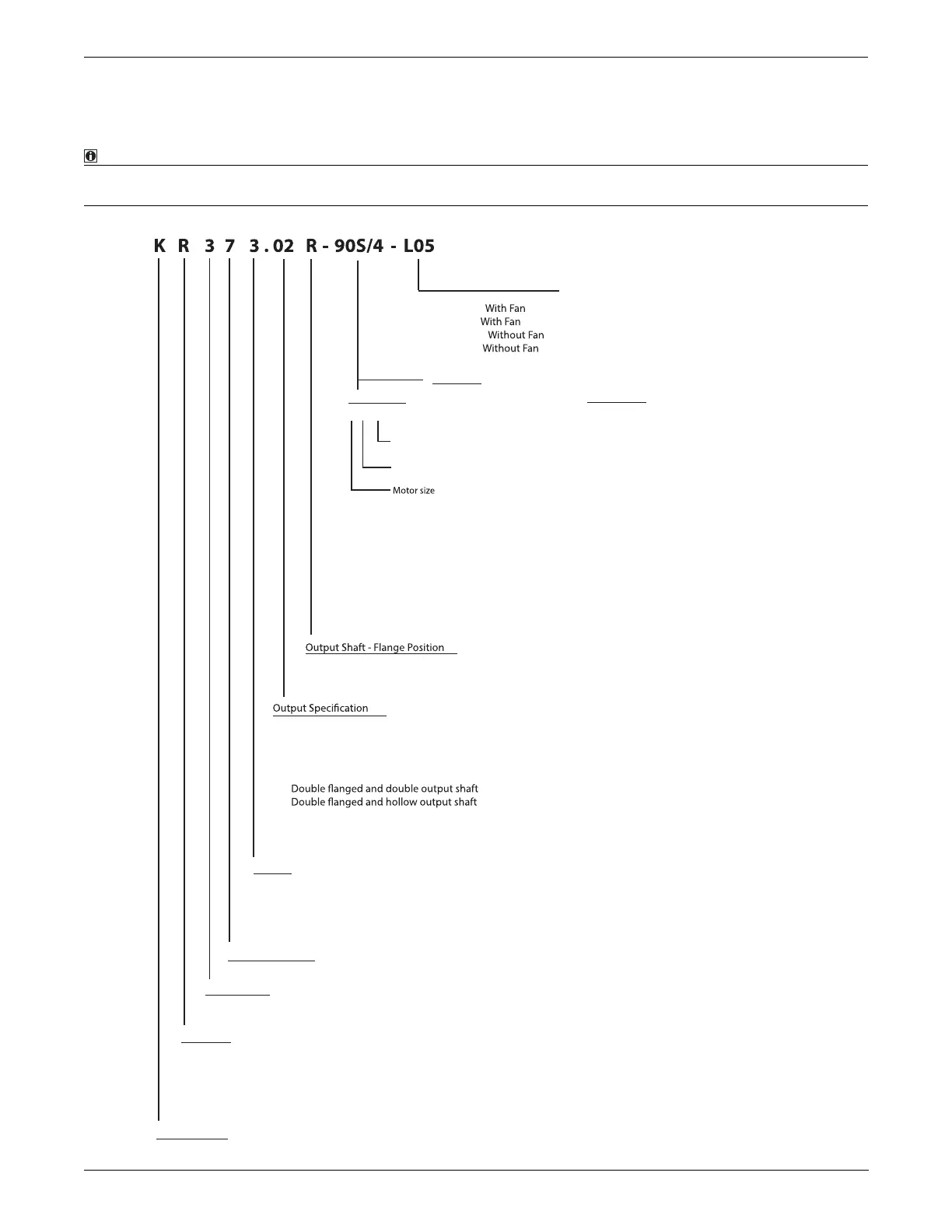

3.1 DETAILED UNIT DESIGNATION
NOTE:
Detailed K Series gear units designation for ordering
(This Designation is different from the short nameplate designation)
A06
90 S / 4
: 63 B5 A10 : 100 B5 A20 : 200 B5
B06 : 63 B14 B10 : 100 B14 A22 : 225 B5
A07 : 71 B5 A11 : 112 B5 A25 : 250 B5
A08 : 80 B5 A13 : 132 B5 A31 : 315 B5
B08 : 80 B14 B13 : 132 B14
A09 : 90 B5 A16 : 160 B5
B09 : 90 B14 A18 : 180 B5
Gearbox Type
K Serie
Input Type
R : With Motor
N :IEC B5 / B14 Flanged without Motor
V :IEC B5 / B14 Flanged with Motor
T :Without Motor
Housing Size
0...8
Revision Number
0,7
00 :Hollow output shaft
01 :Solid output shaft
02 :Solid output shaft and with Flange
03 :Flanged and hollow output shaft
04 :With double output shaft
05 :
08 :
0S :Shrink disk output
0E :Extruder output
Stage
2 Stages
3 Stages
4 Stages
5 Stages
6 Stages
For KN Types
L-220V
P-24V
S-220 V
Z
-24 V
10- 100 N
m
20- 200 Nm
30- 300 Nm
40- 400 Nm
50- 500 Nm
00- 5 Nm
01- 10 Nm
02- 25 Nm
04- 40 Nm
05- 50 Nm
Motor Size
For KV types
Pole Number
Frame Lenght
Brake
