LUBRICATION
Dana Incorporated IMM-0018EN - Installation and Maintenance Manual
10.3 OIL PLUGS AND OIL QUANTITIES

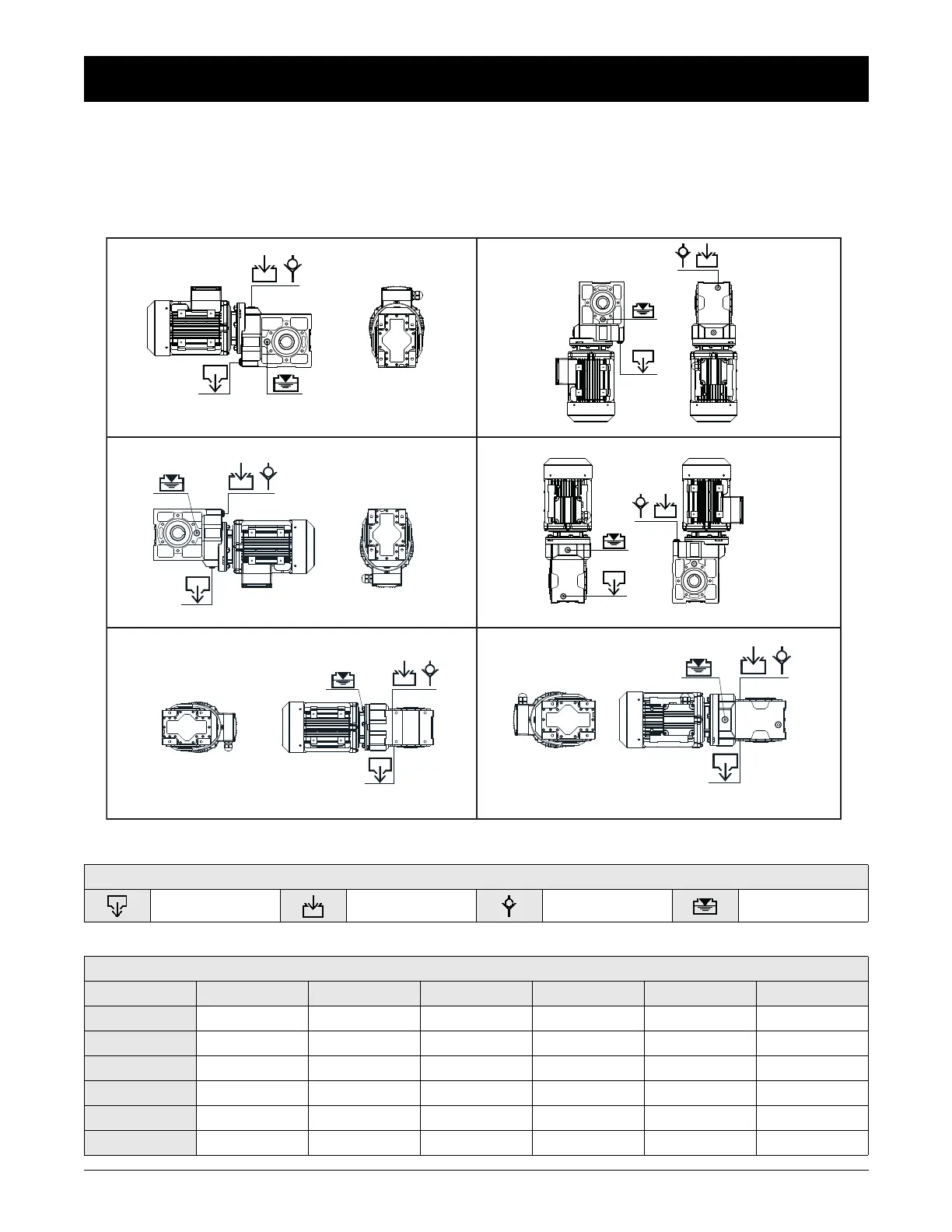

10.3.1 K.00. - K.20. TWO - THREE STAGE HELICAL-BEVEL GEARED GEARBOXES OIL LEVEL
PLUGS
*: For K002 and K003 this plug doesn't exist. Please refer to oil quantities.
Table 15:
Symbols:
Drain Plug Oil Filling Vent Plug Oil Level
Oil Quantities (lt)
Type M1 M2 M3 M4 M5 M6
K.002 0,3 0,6 0,5 0,8 0,65 0,65
K.003 0,3 0,6 0,5 0,8 0,65 0,65
K.102 0,55 0,8 0,85 1,1 0,8 0,8
K.103 0,50,70,81,00,80,8
K.202 1,0 1,35 1,5 1,7 1,4 1,4
K.203 0,9 1,25 1,4 1,4 1,6 1,3
M6M5
M4M3
M2M1
