DANA BREVINI K Series User Manual

STANDARD TYPE GEARBOX PARTS LISTS
11Dana IncorporatedIMM-0018EN - Installation and Maintenance Manual
4.1.3 TYPE: 01R
NOTE:

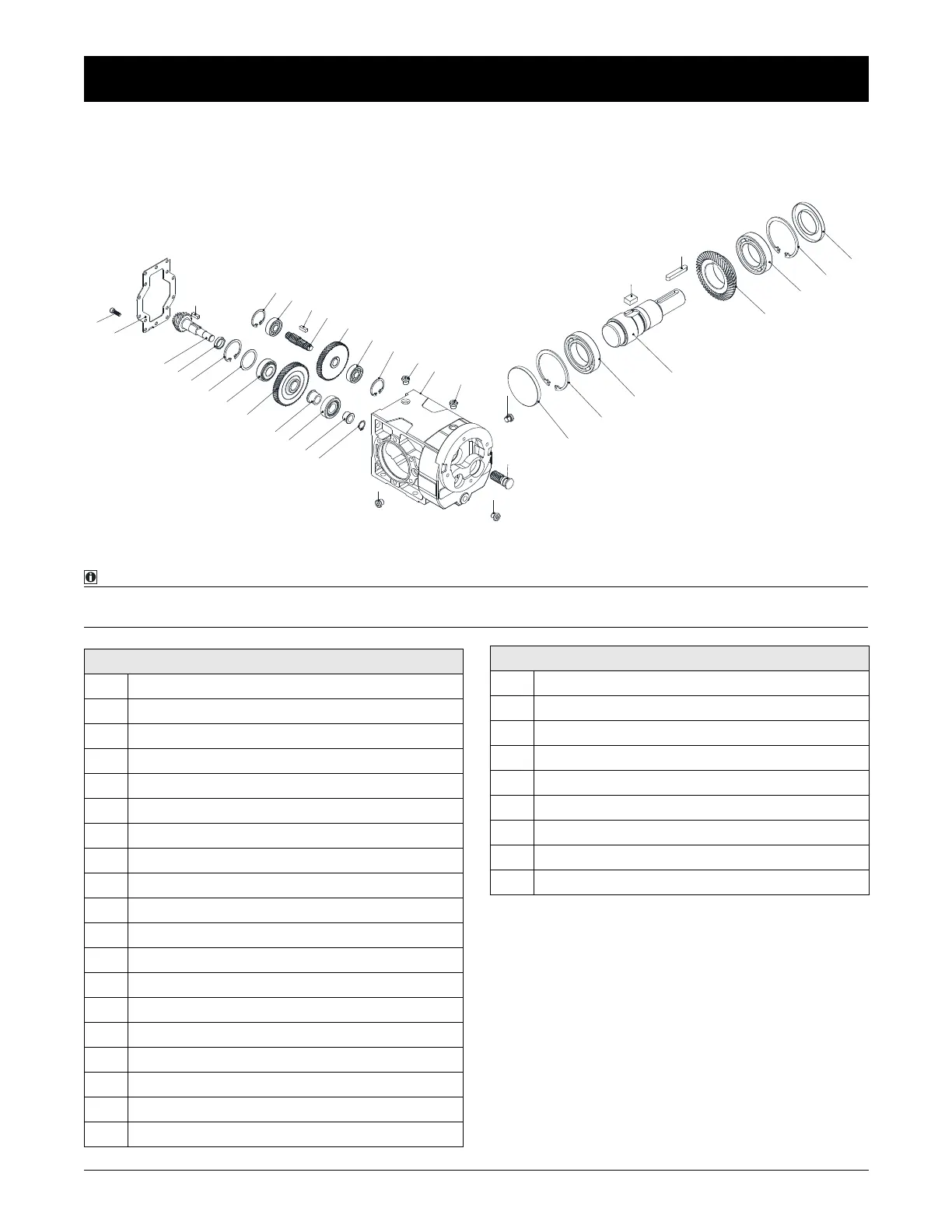

Standard types basic part diagram.
Parts may differ for special applications.
3
22
13
23
17
8
4
20
2
9
23
14
22
18
7
10
24
15
28
16
4
6
12
27
16
5
2
5
19
26
25
21
2
2
1
2
11
Standard Part List
1Pinion
2Plug
3Housing
4Circlip
5Bearing
6 Gear
7Pinion Shaft
8Key
9Bolt
10 Cover Plate
11 Key
12 Pinion Shaft
13 Shim Ring
14 Circlip
15 Shim Ring
16 Bearing
17 Gear
18 Spacer
19 Spacer
20 Circlip
21 Closing Cap
22 Circlip
23 Bearing
24 Output Shaft
25 Key
26 Key
27 Gear
28 Oil Seal
