LUBRICATION
61Dana IncorporatedIMM-0018EN - Installation and Maintenance Manual

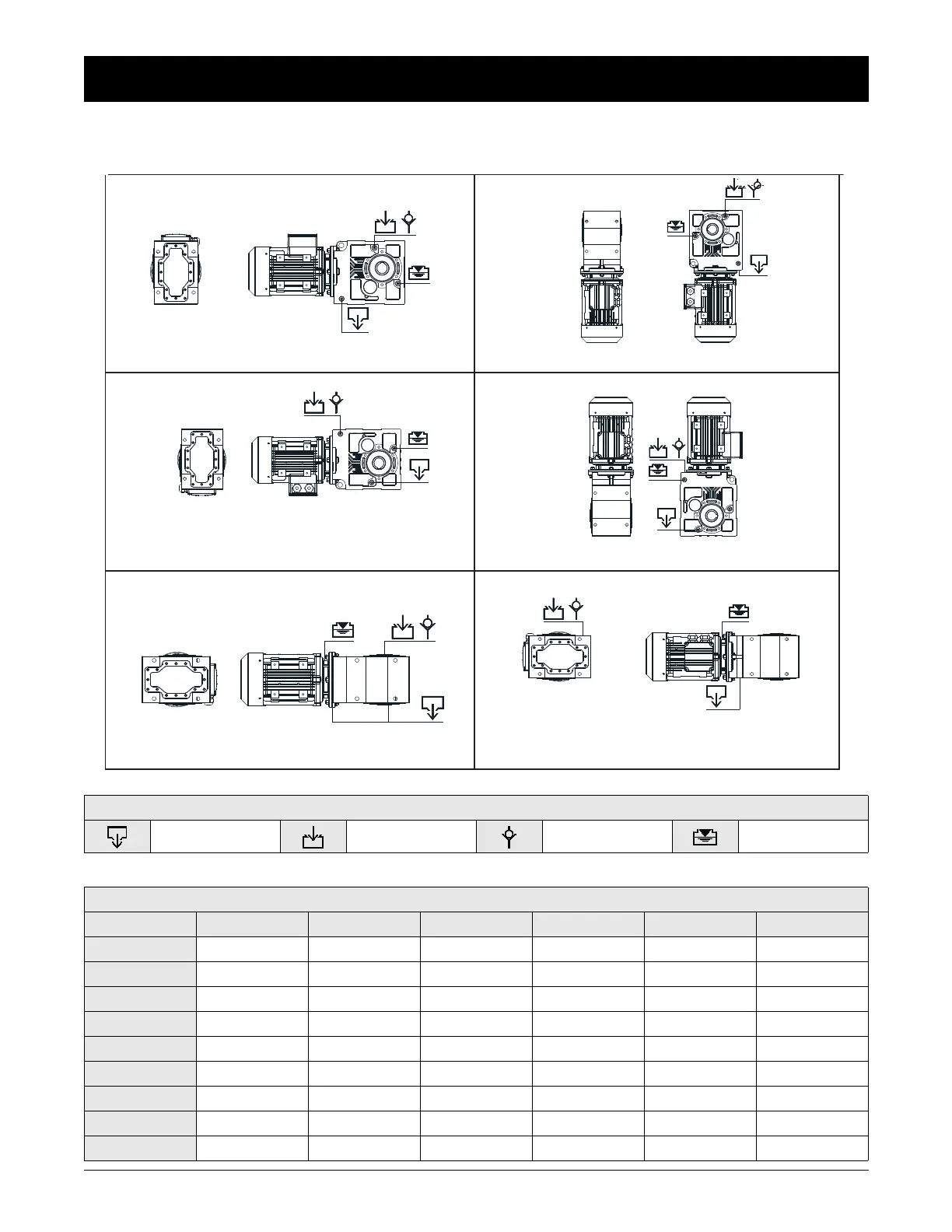

10.3.2 K.27.. - K.97.. THREE STAGE K SERIES OIL LEVEL PLUGS
Table 16:
Symbols:
Drain Plug Oil Filling Vent Plug Oil Level
Oil Quantities (lt)
Type M1 M2 M3 M4 M5 M6
K.273 0,81,82,22,31,41,5
K.283 1,22,42,52,91,91,7
K.373 1,43,33,44,01,92,2
K.473 2,75,96,57,84,04,5
K.573 4,1 9,0 9,7 11,5 5,5 6,6
K.673 8,7 16,3 18,0 22,5 11,7 13,2
K.773 13,0 28,0 30,0 35,0 18,0 20,0
K.873 28,0 49,0 46,0 63,0 30,0 36,0
K.973 47,0 85,0 84,0 117,0 77,0 64,0
