DANA BREVINI K Series User Manual

STANDARD TYPE GEARBOX PARTS LISTS
19Dana IncorporatedIMM-0018EN - Installation and Maintenance Manual
4.2 SIZE: K27...K97...
4.2.1 TYPE: 00
NOTE:

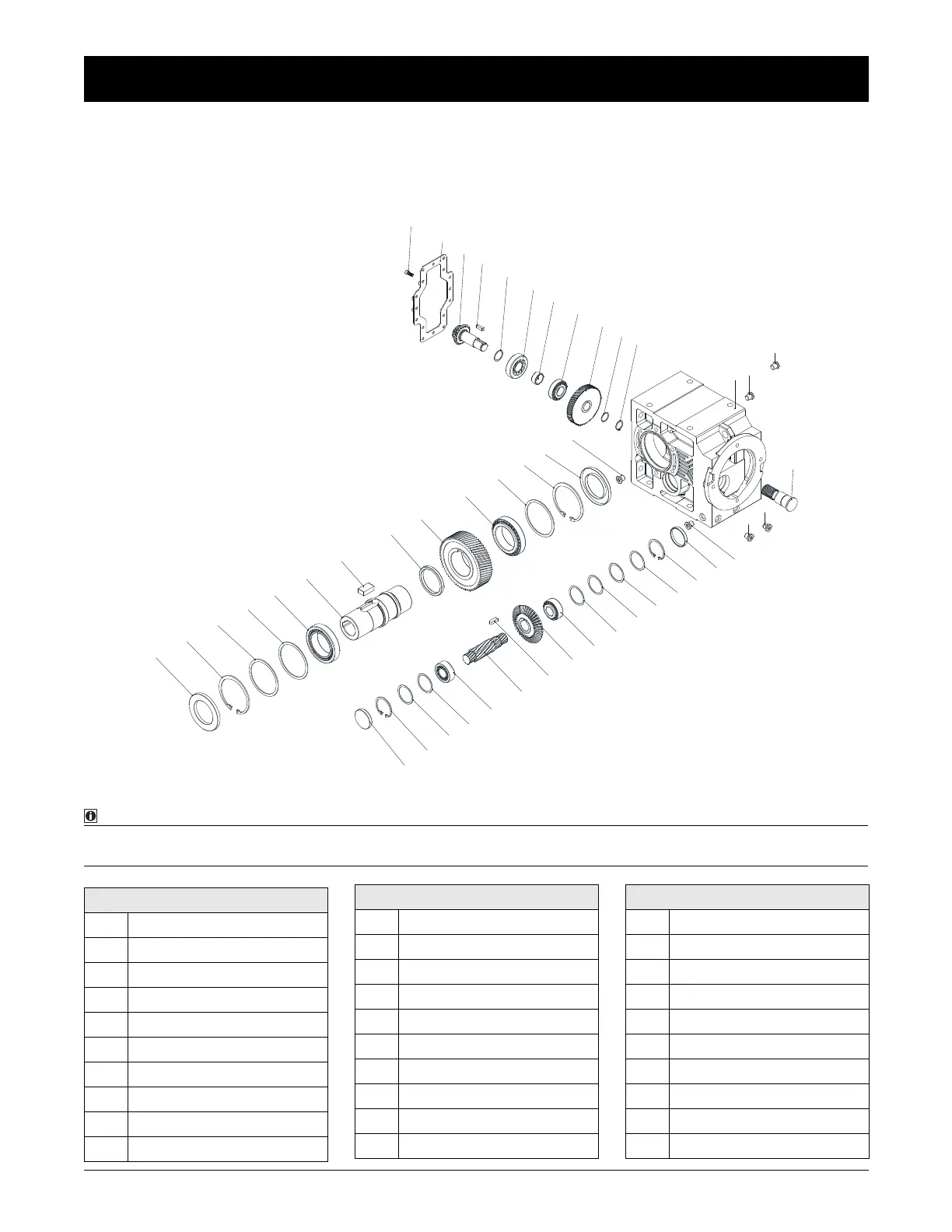

Standard types basic part diagram.
Parts may differ for special applications.
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
22
21
20
19
18
17
16
15
2
2
2
1
3
2
2
23
24
25
25
26
27
28
29
26
25
24
30
2
25
25
25
Standard Part List
1Pinion
2Plug
3Housing
4Circlip
5 Shim Ring
6 Gear
7Bearing
8Spacer
9Bearing
10 Shim Ring
11 Key
12 Pinion Shaft
13 Cover Plate
14 Bolt
15 Oil Seal
16 Circlip
17 Shim Ring
18 Bearing
19 Gear
20 Shim Ring
Standard Part List
21 Key
22 Output Shaft
23 Closing Cap
24 Circlip
25 Shim Ring
26 Bearing
27 Pinion Shaft
28 Key
29 Gear
30 Shim Ring
Standard Part List
