DANA BREVINI K Series User Manual

MECHANICAL INSTALLATION
45Dana IncorporatedIMM-0018EN - Installation and Maintenance Manual

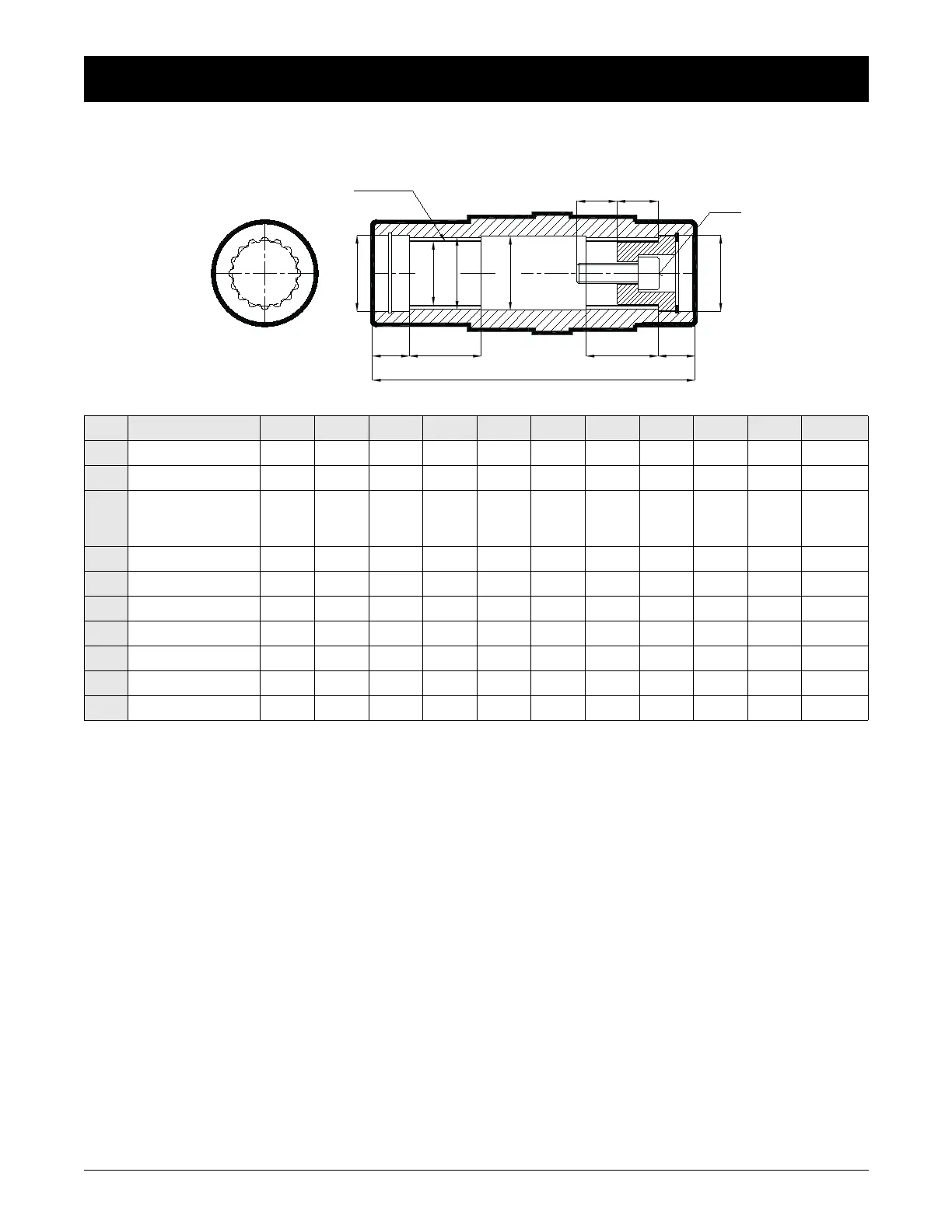

8.7 K.00.. - K.97.. DIMENSIONS OF SPLINED HOLLOW SHAFT TO DIN 5480
Table 7:
Type DIN5480 ød ød1 ød2 øda2 ødf2 l l1 l2 l3 l4 MxL
K00 N25x1,25x30x18x9H 27 26 44 22,5 25,25 115 17 22 20 20 M10x60
K10 N30x1,25x30x22x9H 32 31 53 27,5 30,25 120 18 25 20 20 M10x60
K20
K27
K28
N35x2x30x16x9H 37 36
64
58
63,5
31 35,4
140
157
166
18 35 20 20
M10x70
M10x90
M10x100
K37 N45x2x30x21x9H 47 46 74 41 45,4 185 25 45 24 32 M16x110
K47 N50x2x30x24x9H 55 51 84 46 50,4 215 25 55 24 32 M16x130
K57 N65x2x30x31x9H 72 66 104 61 65,4 246 25 65 30 40 M20x150
K67 N70x2x30x34x9H 72 71 119 66 70,4 308 25 75 30 40 M20x210
K77 N85x3x30x27x9H 90 86 139,5 79 85,6 363 26 90 30 40 M20x240
K87 N100x4x30x24x9H 110 101 169 92 100,8 428 30 105 41 50 M24x290
K97 N120x4x30x28x9H 130 121 179 112 120.8 500 35 120 41 50 M24x340
Ø da2
Ød
l2
l3
Ø df2
Ød1
l1
l4
MxL
DIN5480
l1 l2
l
Ød
