54
MECHANICAL INSTALLATION
Dana Incorporated IMM-0018EN - Installation and Maintenance Manual

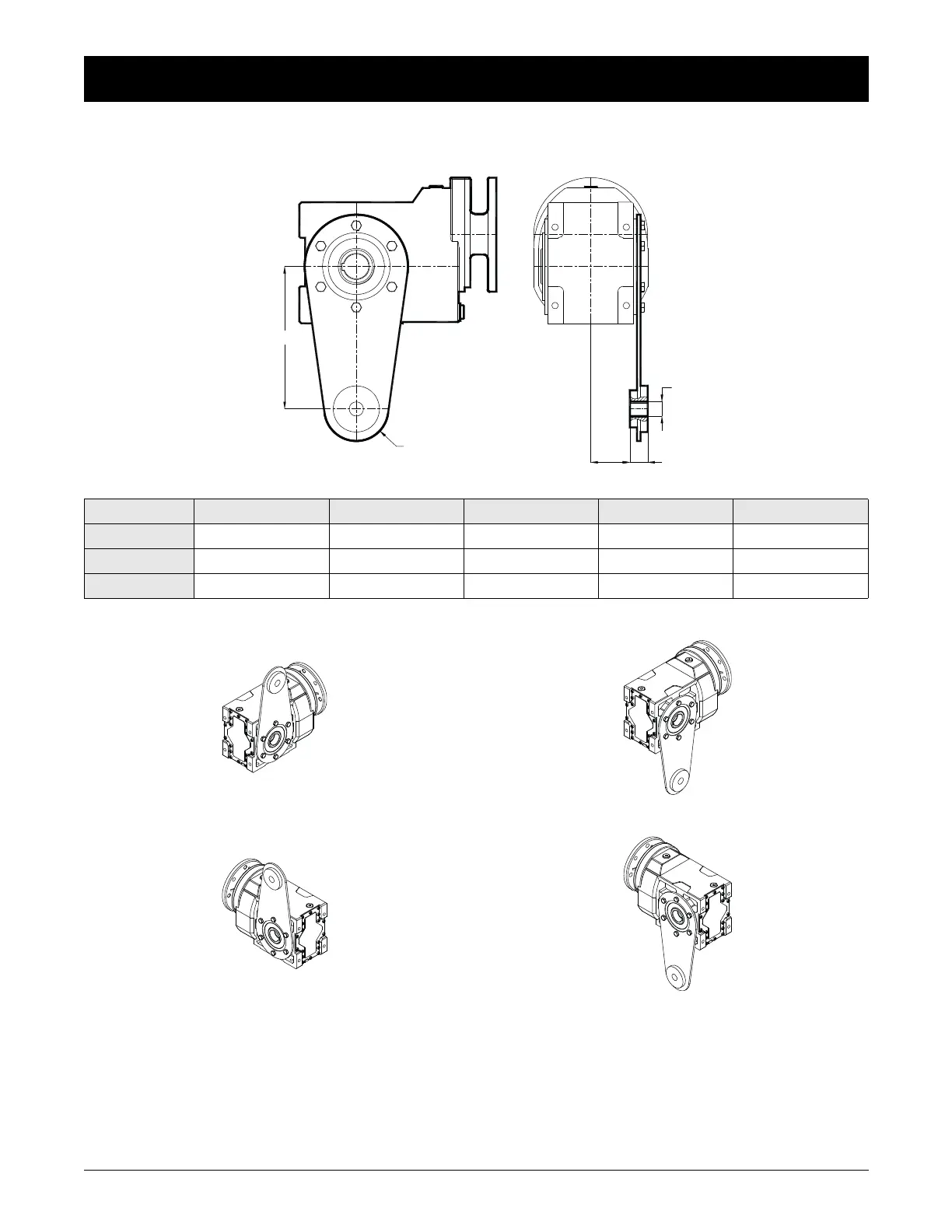

8.12 K.00.. - K.20.. TORQUE ARM ASSEMBLY DETAILS
Table 12:
Type b e d r h
K.00.. 47 16 10 32 100
K.10.. 49.5 16 10 36 150
K.20.. 54.5 25 20 45 200
L1 L2
R1 R2
d
h
r
b
e
