Compression mode setup
10. Adjusting the lever hoist

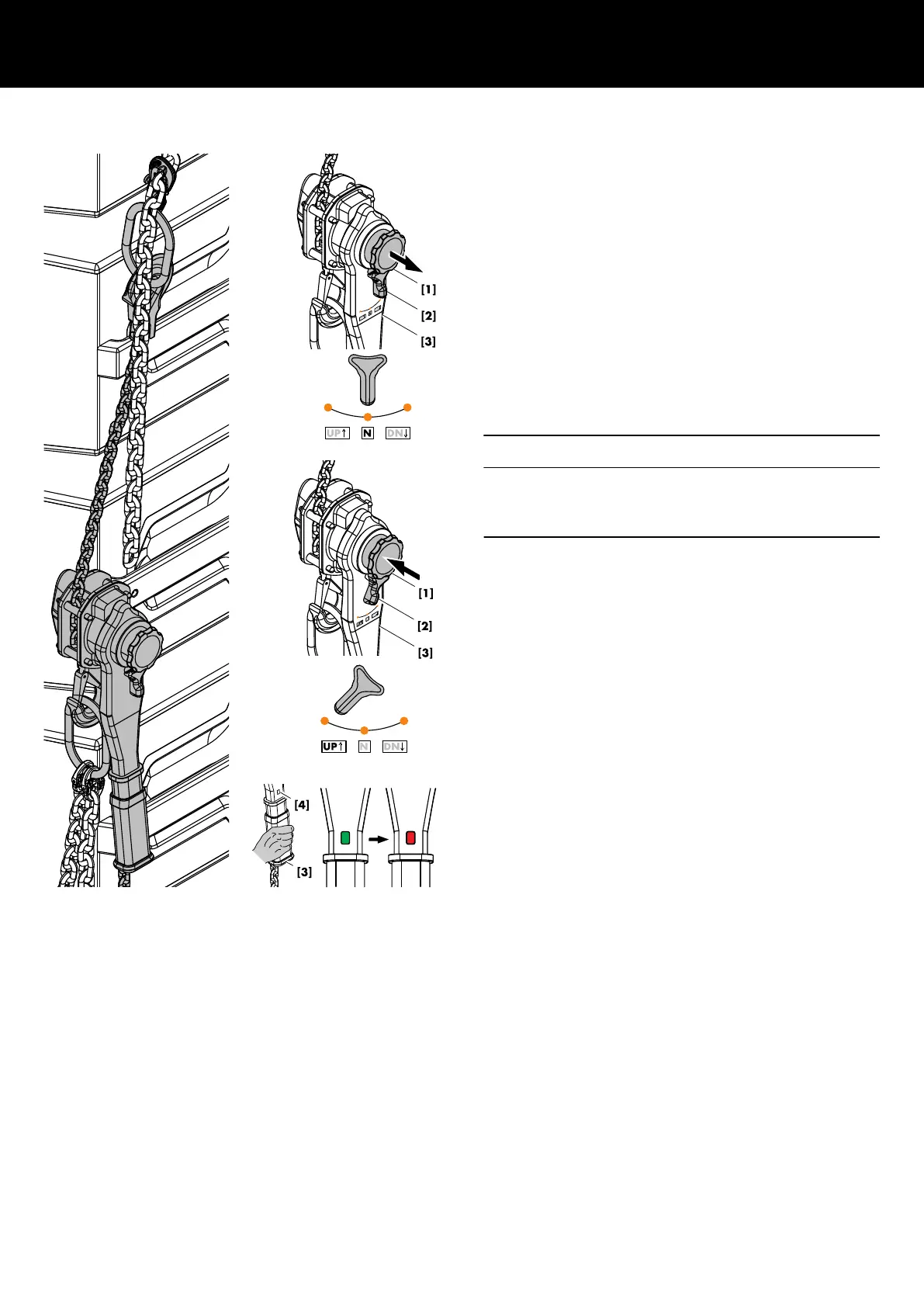

To adjust the lever hoist, proceed as follows:
Note: For better illustration, the compression chain is not
shown in full length.
1. Set the lever mode selector [2] to the neutral (N) position.
2. Pull the free chain knob [1].
↳
In this mode, the load chain can be freely pulled through
the hoist to its required length.
11. Curving the array
Before curving the array, recheck the actual status of the entire
assembly according to the checklist given in Þ Chapter 11 "Safety
and system checks" on page 71.
To curve the array proceed as follows:
NOTICE!
To provide correct detection of the compression force applied,
operate the hoist by holding the lever grip [3] in the middle as
shown in the graphic opposite.
1. Push the free chain knob [1].
2. Set the lever mode selector [2] to the UP position.
3. Operate the lever [3] clockwise until the array is completely
curved.
↳
The maximum permitted compression force has been
achieved when the lever handle kinks and the load
indicator [4] changes from green to red.
4. Stop further operation and set the lever mode selector [2]
back to the neutral (N) position and place the lever [3] into its
straight position (back into place).
