13
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
13
Locomotive/Locomotive function decoder from fi rmware version 3.12
2
4
6
8
10
12
14
16
18
20
22
1
3
5
7
9
12
13
15
17
19
21

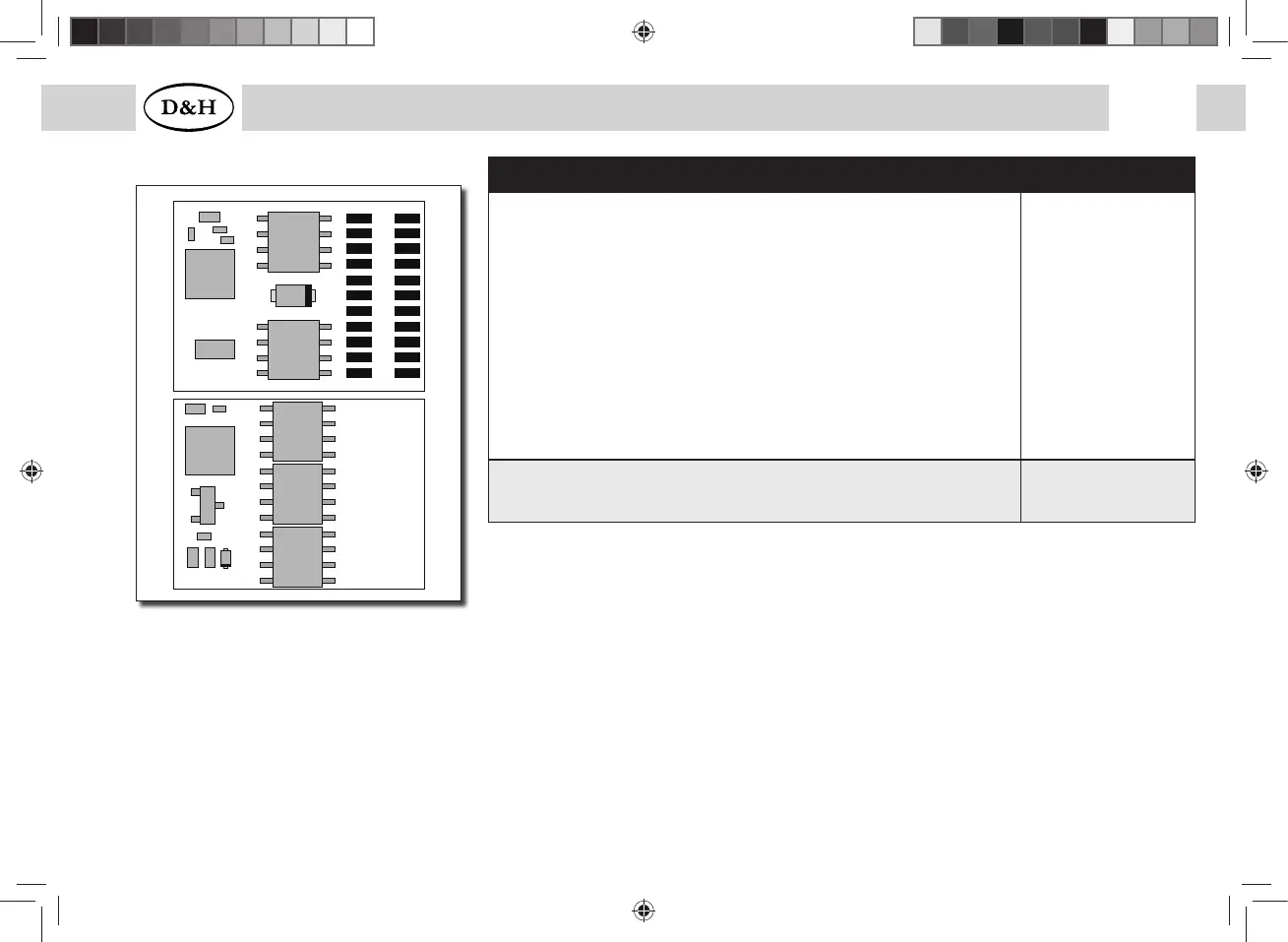

DH22A (2
nd
generation)
Specifi cations
DH22A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Switching voltage at AC analog:
Max. 45 V peak = 30 V eff.
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated)
20,7 x 15,8 x 5,2
2,0 A
2,0 A
30 V
X
each 150 mA
each 300 mA
each 1,0 A
unamplifi ed *)
X
Connecting options
22 pin connector for direct plugging (PluX22)
DH22A-4
*) Unamplifi ed function outputs: See supplement 3.
