Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
16
Locomotive/Locomotive function decoder from fi rmware version 3.12

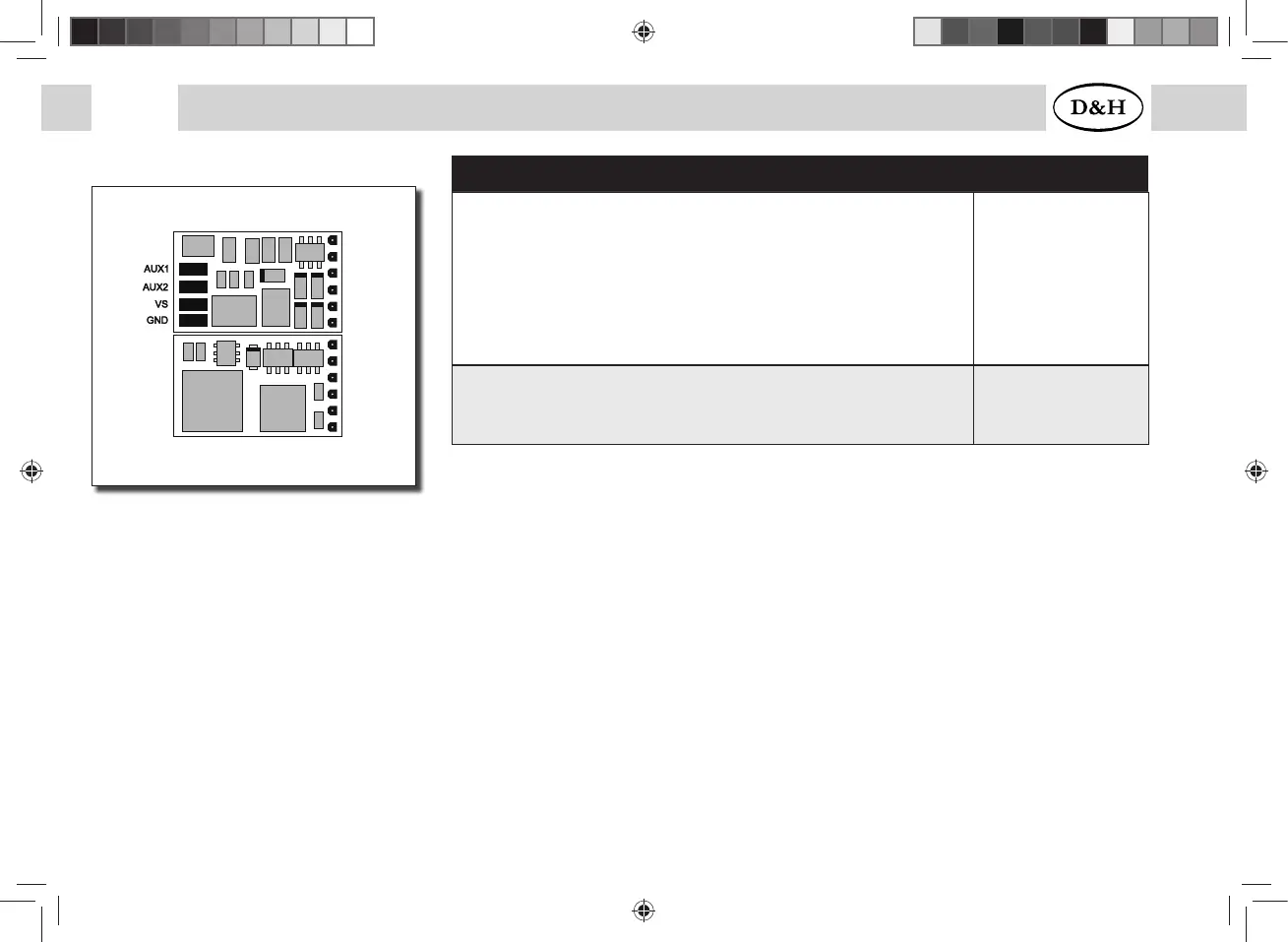

Specifi cations PD06A
Dimensions [mm]
Total load
Motor voltage
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
6,8 x 11,4 x 2,8
0,5 A
6 V
0,2 A
18 V
each 150 mA
each 300 mA
Connecting options
Without connection wires
With connection wires
PD06A-0
PD06A-3
M2
G2
M1
G1
LV
LR
PD06A
M1, M2 ..............Motor connection 1, 2
G1, G2 ............... Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2 .....Additional function 1, 2 (each 300 mA)
VS ......................Supply voltage
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
