Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
17
Locomotive/Locomotive function decoder from fi rmware version 3.12
Specifi cations PD12A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
24,2 x 11,0 x 2,4
1,0 A
1,0 A
30 V
each 150 mA
each 300 mA
Connecting options
Without connection wires
With connection cable for interface per NEM652
With connection wires
12 pin connector for direct plugging (PluX12)
PD12A-0
PD12A-2
PD12A-3
PD12A-4

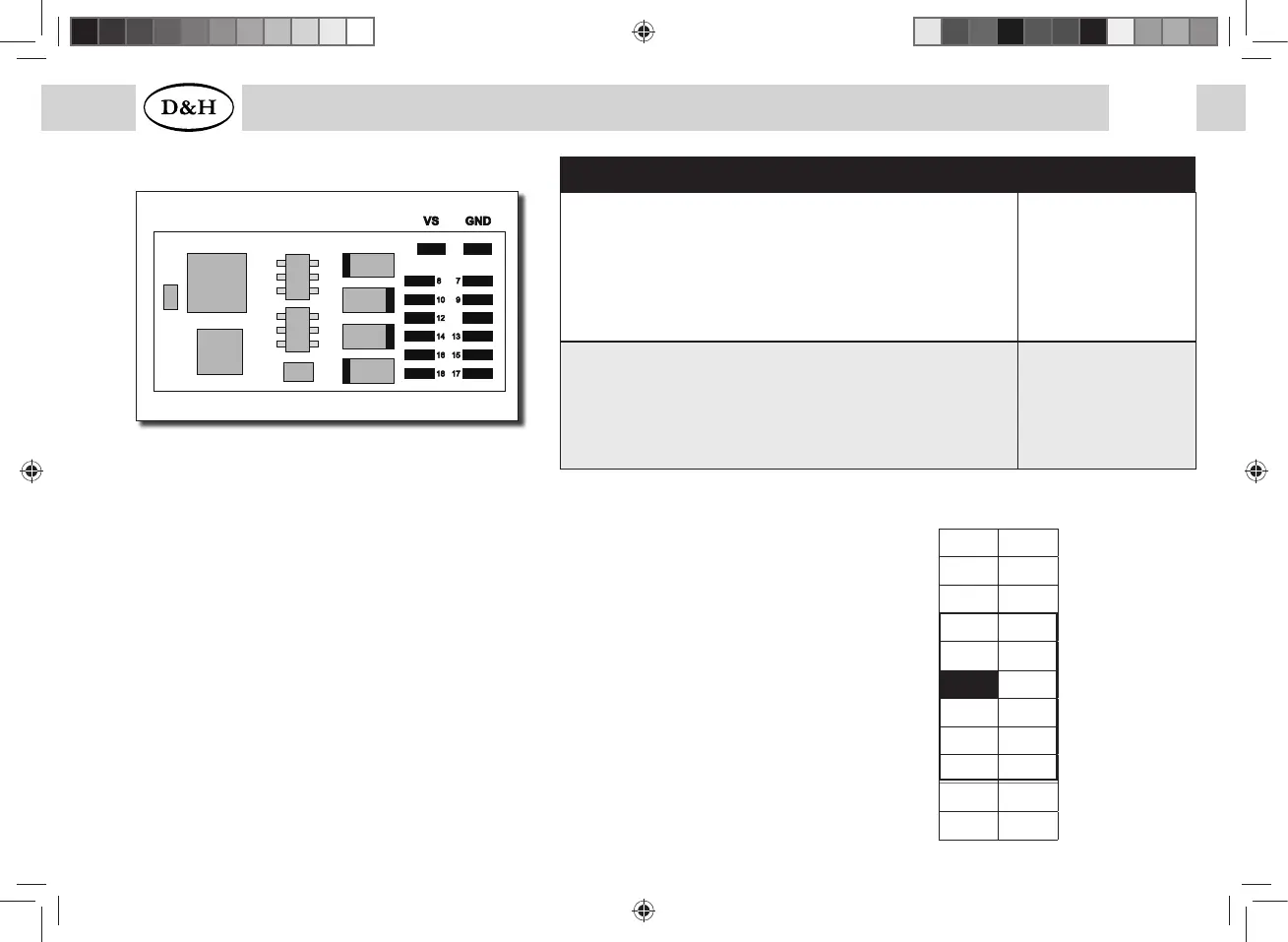

PD12A
PluX12-Interface
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
LV
VS
Index
LR
--
--
M1
M2
G1
G2
AUX1
AUX2
M1, M2 ..............Motor connection 1, 2
G1, G2 ............... Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2 .....Additional function 1, 2 (each 300 mA)
VS ......................Supply voltage
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
