Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
18
Locomotive/Locomotive function decoder from fi rmware version 3.12

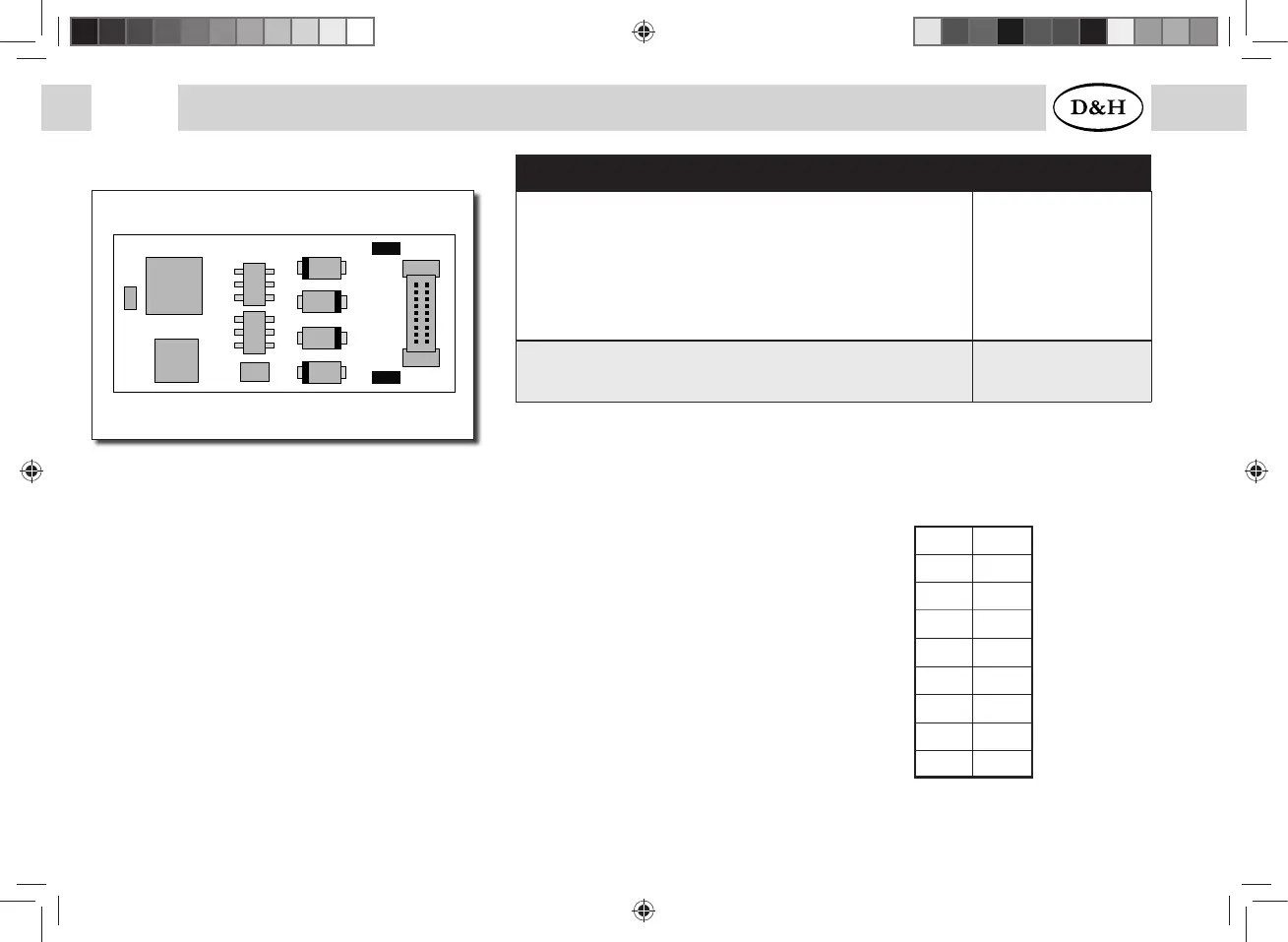

Specifi cations PD18A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
23,8 x 10,8 x 2,0
1,0 A
1,0 A
30 V
je 150 mA
je 300 mA
Connecting options
18 pin connector for direct plugging (Next18)
PD18A
Next18 interface
1 18
2 17
3 16
4 15
5 14
6 13
7 12
8 11
9 10
G1
M1
AUX1
–
GND
VS
–
LV
G2
G1
LR
–
VS
GND
–
AUX2
M2
G2
M1, M2 ..............Motor connection 1, 2
G1, G2 ............... Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2 .....Additional function 1, 2 (each 300 mA)
VS ......................Supply voltage
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
GND
VS
PD18A
