Locomotive/Locomotive function decoder from firmware version 3.12
The connections of the SUSI interface for the sound or function modules are at FH05B on the underside of the decoder, at
FH18A on the adapter N18-G and at FH22A-4 on the PluX22 plug respectively on the adapter P22-3.
Connect these modules according to the following diagram:
red wire ........................ SUSI supply voltage (ZVS)
blue wire ....................... SUSI clock (ZCLK)
gray wire ....................... SUSI data (ZDAT)
black wire ..................... Ground (GND)
Function outputs:

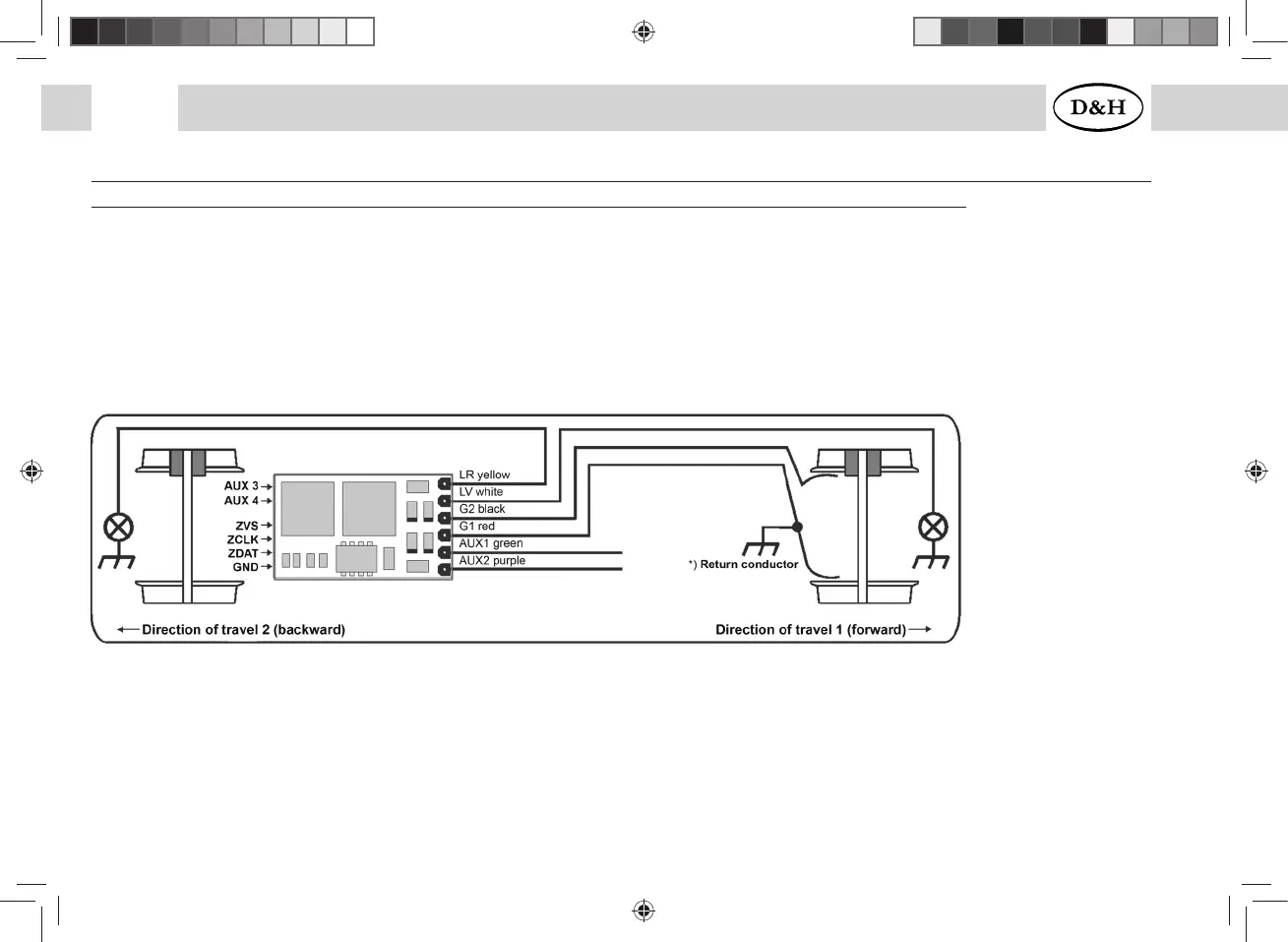

The unamplified function outputs AUX* are at the underside of the decoder. They must be connected with the consumers
via separate wires and via appropriate amplifiers.
*) Depending on the manufacturer, the return conductor can be connected to wheel 1 or 2 (red or black) and to the
locomotive chassis
