4 Operation of the DM100 DAU
The door to the DAU must be locked after the VDR has been installed and is operating normally.
This section of the manual is only relevant during installation and service.

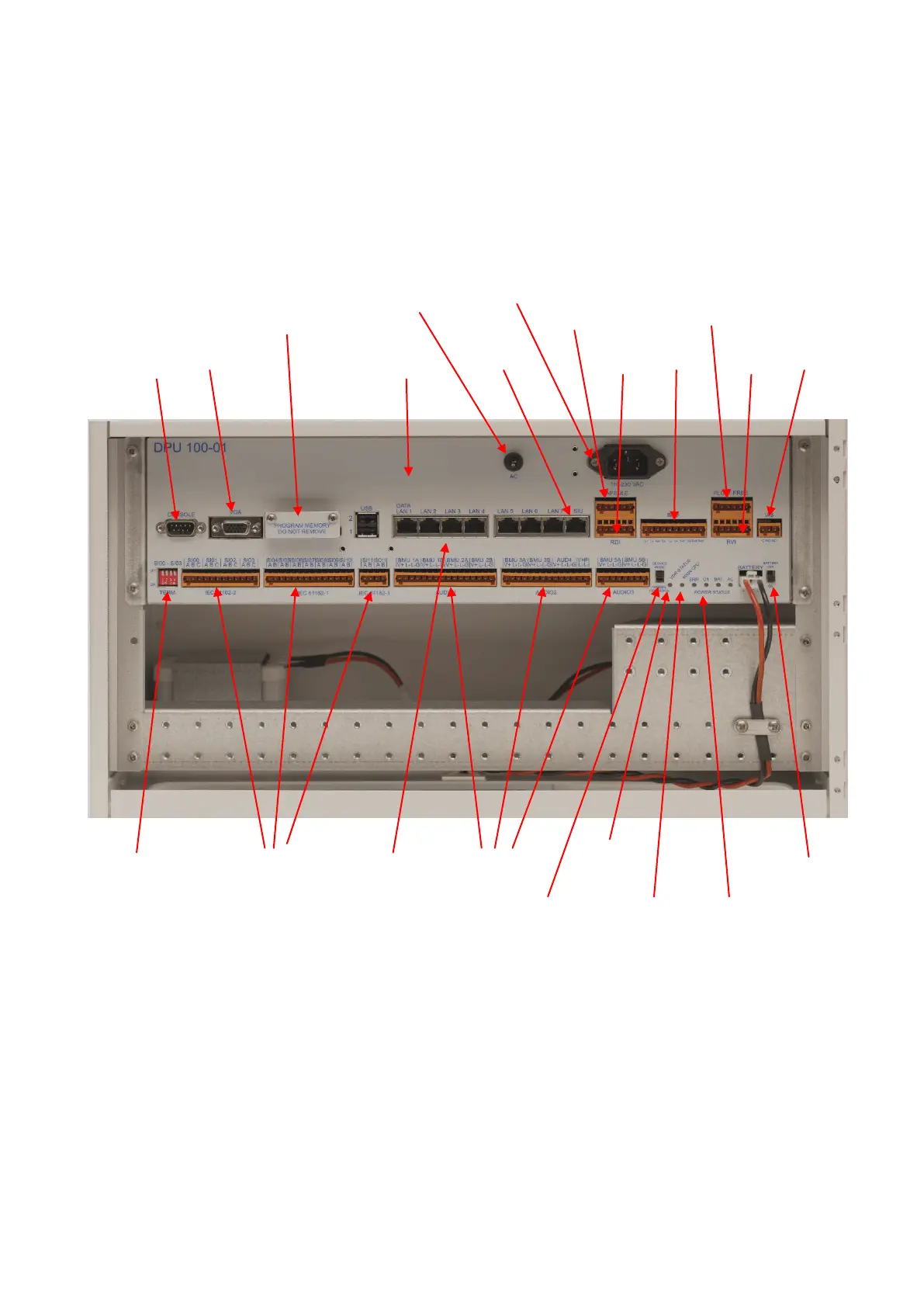

VDR status
LED
AC inlet
Program
memory
I/F to
IAS
I/F for
BCP
Service
console
Ethernet
ports
VGA
interface
Audio
interfaces
DPU
AC breaker
Power status
LEDs
Battery
switch
Interfaces
for serial data
Termination
resistors for
SI00 - SI03
Main CPU
status LED
Service mode
switch
I/F for
capsule
I/F for
RDI
I/F for
RVI
I/F for
SIU
I/F for
float-free
