7.1 Operation of RVI with AC power supply
This type is only used if the “Power over Ethernet” ports on the DPU are being used for other
purposes.
7.1.1 RVI address
Must be set to “0” for the first RVI and “1” for a second RVI.
7.1.2 Ethernet ports
ETH A must be connected to the DAU. Note that the LEDs in the Ethernet connectors (RJ45) are
inactive for this unit.
7.1.3 ST LED
The Status LED (Yellow) will flash (1Hz) after power on and then become steady if a
communication link is established to the DAU. The LED will always be switched off after one
minute.

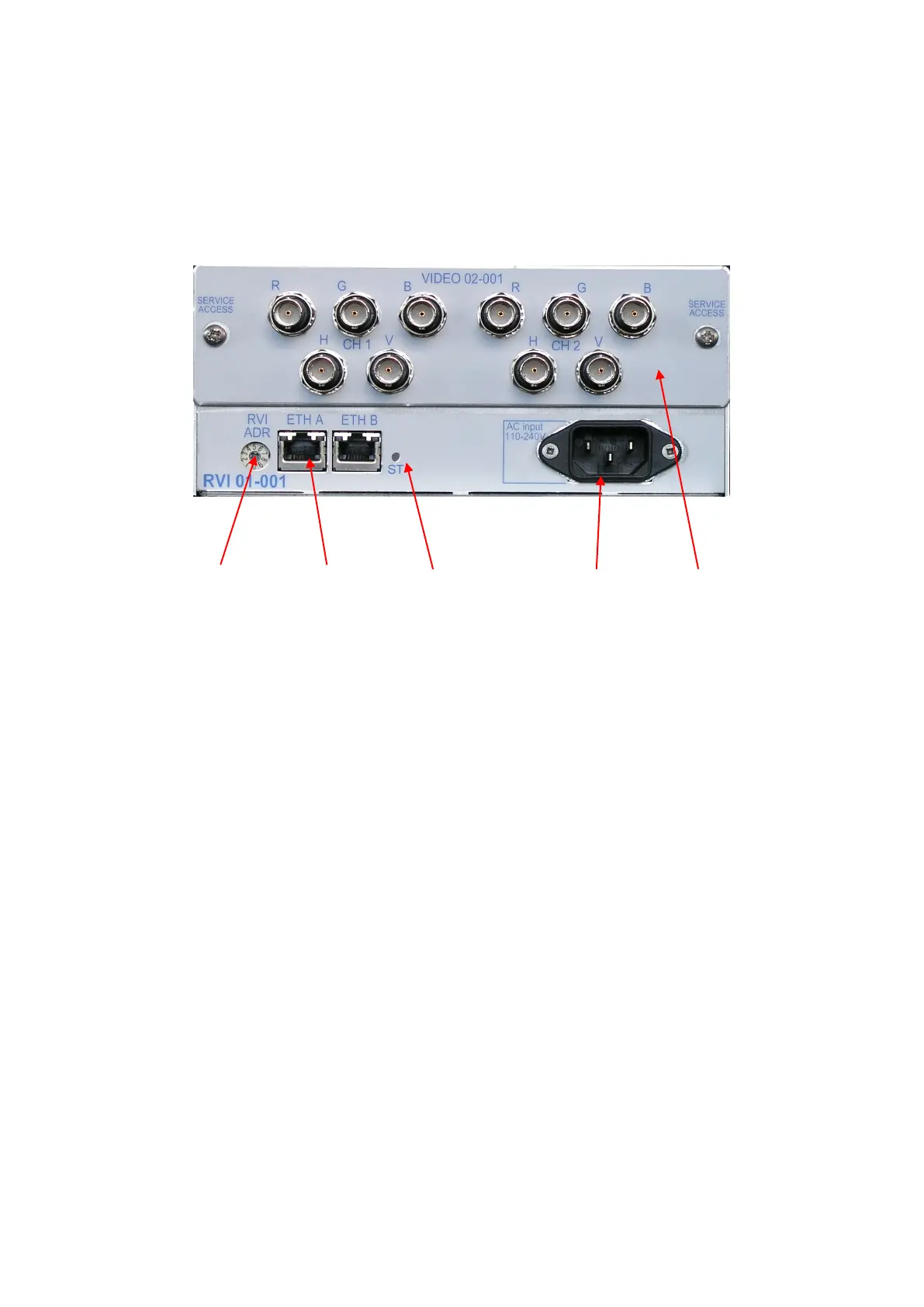

RVI address
Ethernet port
ST LED
AC inlet
Video I/F module
