7 Operation of standard RVI 02-004 and RVI 02-004D (PoE)
The DM100 will normally use an RVI 02-004 and RVI 02-004D for image capture. Another type
exists (see section 7.1) which may be used if the “Power over Ethernet” ports on the DPU are used
for other purposes.
RVI 02-004
RVI 02-004D

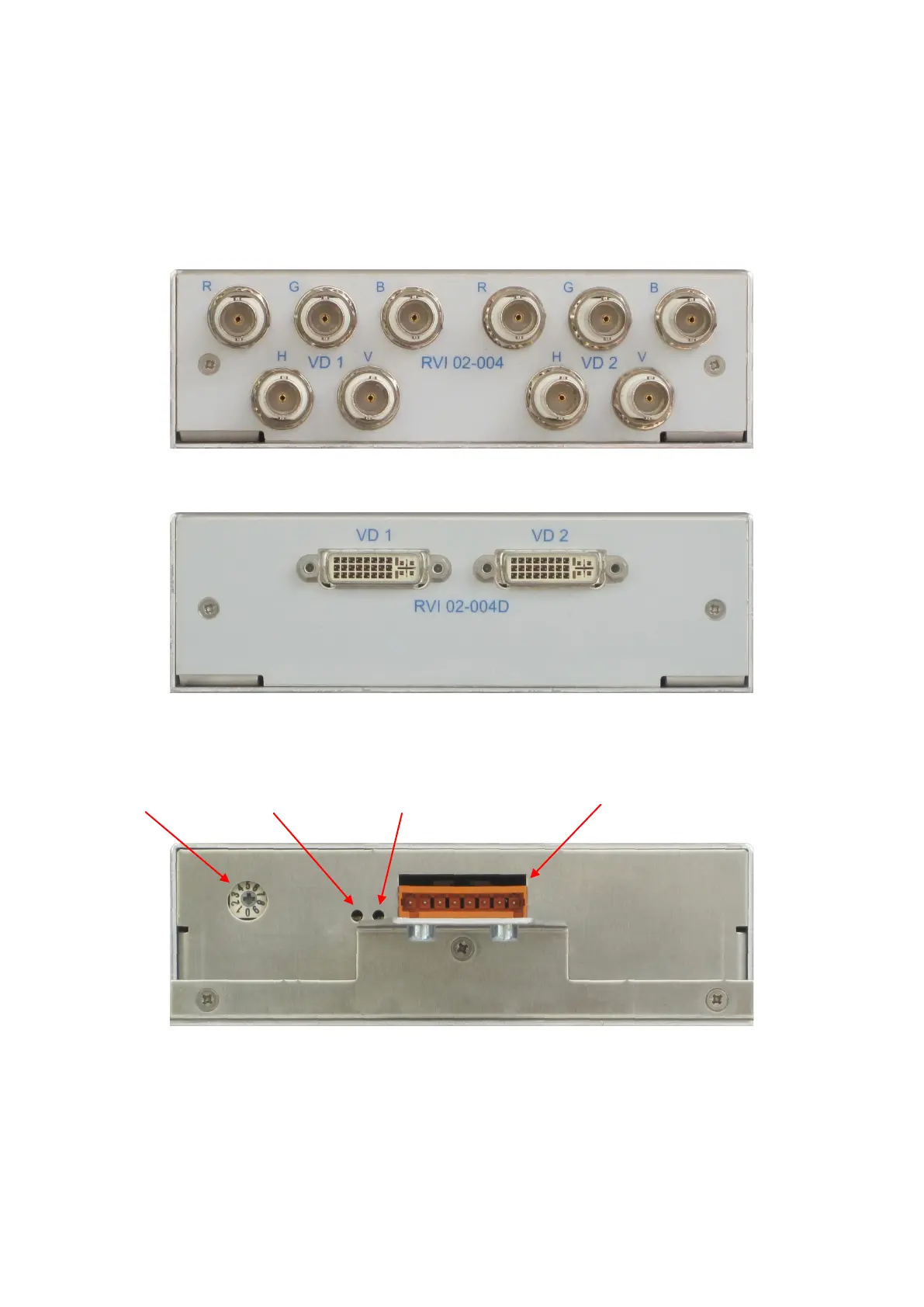

RVI 02-004(D) rear panel
Ethernet link and activity
(Green)
Ethernet link and speed
(Yellow)
Ethernet port with PoE
RVI address:
Must be set to “0”
for the first
RVI and
“1” for
a second RVI
