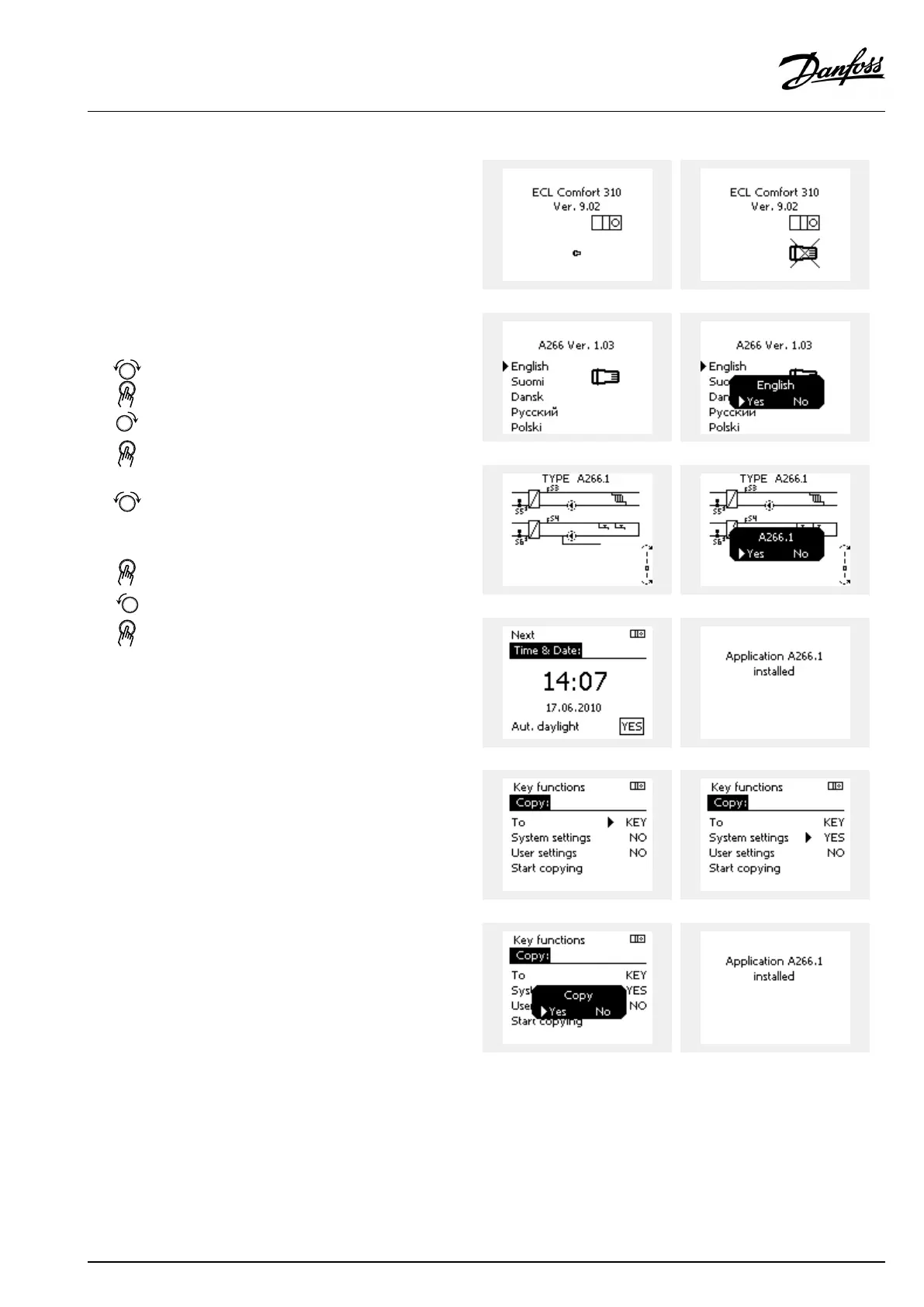

ApplicationKey:Situation1
Thecontrollerisnewfromthefactory,theECLApplicationKey
isnotinserted.
AnanimationfortheECLApplicationKeyinsertionisdisplayed.
InserttheApplicationKey.
ApplicationKeynameandVersionisindicated(example:A266
Ver.1.03).
IftheECLApplicationKeyisnotsuitableforthecontroller,a"cross"
isdisplayedovertheECLApplicationKey-symbol.
Action:Purpose:
Examples:
Selectlanguage
Confirm
Selectapplication(subtype)
Somekeyshaveonlyoneapplication.
Confirmwith‘Yes’
Set'Time&Date'
Turnandpushthedialtoselectand
change'Hours','Minutes','Date' ,
'Month'and'Year'.
Choose''Next'
Confirmwith‘Yes’
Goto‘Aut.daylight’
Choosewhether‘Aut.daylight´*
shouldbeactiveornot
YESorNO
*‘Aut.daylight’istheautomaticchangeoverbetweensummer
andwintertime.
DependingonthecontentsoftheECLApplicationKey,procedure
AorBistakingplace:
A
TheECLApplicationkeycontainsfactorysettings:
Thecontrollerreads/transfersdatafromtheECLApplicationKey
toECLcontroller.
Theapplicationisinstalled,andthecontrollerresetsandstartsup.
B
TheECLApplicationkeycontainschangedsystemsettings:
Pushthedialrepeatedly.
’NO’:
OnlyfactorysettingsfromtheECLApplicationKeywill
becopiedtothecontroller.
’YES*:
Specialsystemsettings(differingfromthefactory
settings)willbecopiedtothecontroller.
Ifthekeycontainsusersettings:
Pushthedialrepeatedly.
‘NO:
OnlyfactorysettingsfromtheECLApplicationKeywill
becopiedtothecontroller.
‘YES*:
Specialusersettings(differingfromthefactorysettings)
willbecopiedtothecontroller.
*If‘YES’cannotbechosen,theECLApplicationKeydoesnot
containanyspecialsettings.
Choose‘Startcopying’andconfirmwith'Yes'.
VI.GU.L2.02
©Danfoss|2017.09|77
OperatingGuideECLComfort210/296/310,applicationA275/A375
