76 Capacity controller RS8GN202 © Danfoss 11-2013 AK-PC 783

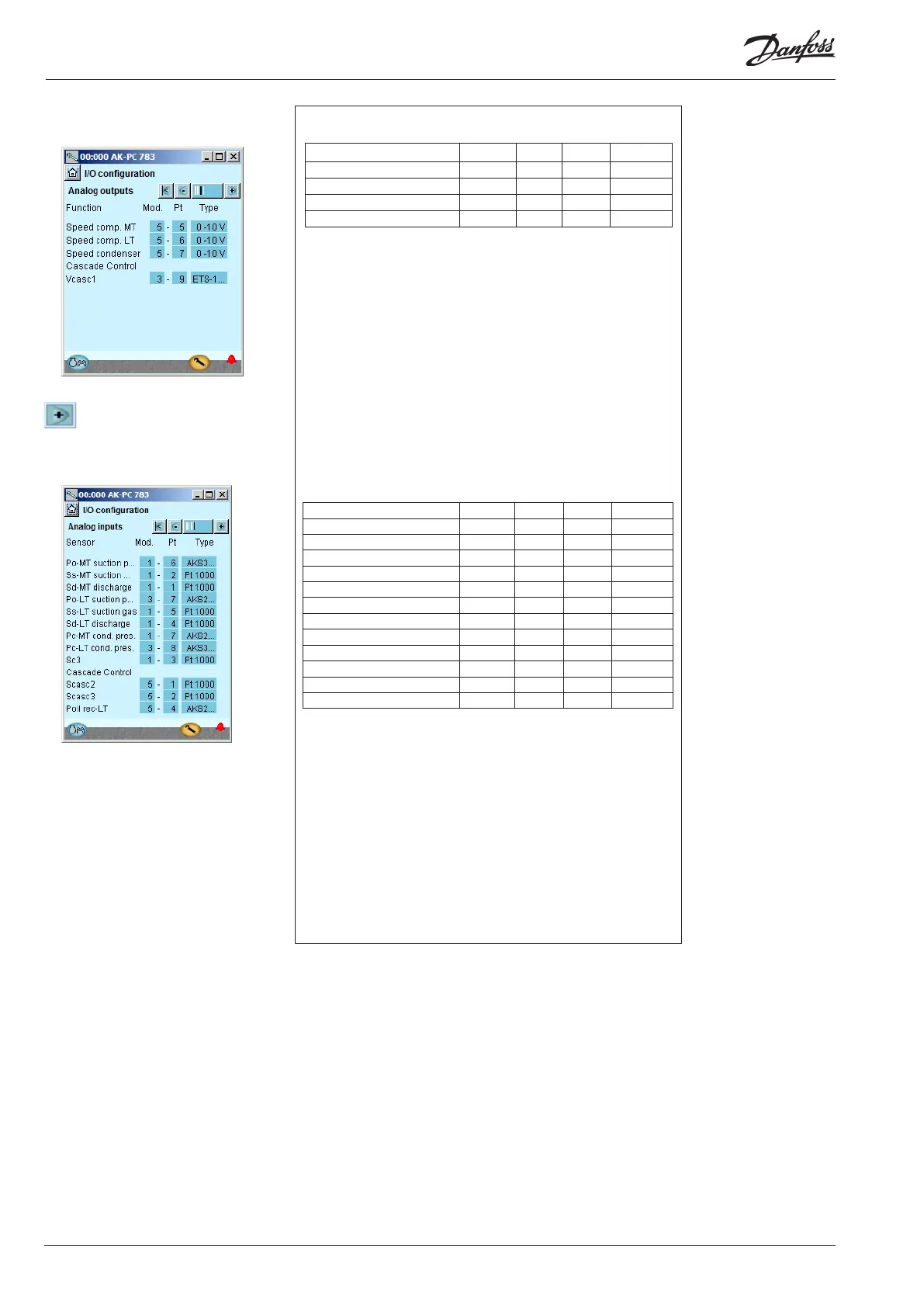

5. Conguration of Analog
outputs
Press the +-button to go on to
the next page
6. Conguration of Analog
Input signals
Conguration - continued
5 - Analog outputs
The possible signals are
the following:
0 -10 V
2 – 10 V
0 -5 V
1 – 5V
Stepper output
Stepper output 2
6 - Analog inputs
The possible signals are
the following:
Temperature sensors:
• Pt1000
• PTC 1000
Pressure transmitters:
• AKS 32, -1 – 6 bar
• AKS 32R, -1 – 6 bar
• AKS 32, - 1 – 9 bar
• AKS 32R, -1 – 9 bar
• AKS 32, - 1 – 12 bar
• AKS 32R, -1 – 12 bar
• AKS 32, - 1 – 20 bar
• AKS 32R, -1 – 20 bar
• AKS 32, - 1 – 34 bar
• AKS 32R, -1 – 34 bar
• AKS 32, - 1 – 50 bar
• AKS 32R, -1 – 50 bar
• AKS 2050, -1 – 59 bar
• AKS 2050, -1 – 99 bar
• AKS 2050, -1 – 159 bar
• User dened (only
ratiometric, min. and max
value of the pressure
range must be set)
S4 Cold brine
Pctrl
Po suction pres.
Ss suction gas
Sd disch. temp.
Pc Cond. Pres.
S7 Warm brine
Sc3 air on
Ext. Ref. Signal
• 0 – 5 V,
• 0 -10 V
Olie receiver
Prec
Stw2,3,4,8
Shr2,3,4,8
HC 1-5
Heat recovery
Saux 1 - 4
Paux 1 - 3
Voltage input 1 - 5
• 0 -5 V,
• 0 -10 V,
• 1 – 5 V,
• 2 – 10 V
PI-in temp
PI-ref temp
PI- in voltage
PI-in pres.
PI-ref pres.
Function Output Module Point Type
Stepper signal for ETS-valve Step 1 3 9 Steppes
Speed control, compressor, MT AO1 5 5 0 - 10 V
Speed control, compressor, LT AO2 5 6 0 - 10 V
Speed control, EC motor AO3 5 7 0 - 10 V
Sensor Input Module Point Type
Disch. gas temperature - Sd-MT AI1 1 1 Pt 1000
Suction gas temperature - Ss-MT AI2 1 2 Pt 1000
Outdoor temp - Sc3 AI3 1 3 Pt 1000
Disch. gas temperature - Sd-LT AI4 1 4 Pt 1000
Suction gas temperature - Ss-LT AI5 1 5 Pt 1000
Suction pressure - P0-MT AI6 1 6 AKS 32R-12
Condenser pressure - Pc-MT AI7 1 7 AKS 32R-34
Suction pressure - P0-LT AI7 3 7 AKS 2050-59
Condenser pressure - Pc-LT AI8 3 8 AKS 2050-59
Temp. heat exchanger Scasc2 AI1 5 1 Pt 1000
Temp. heat exchanger Scasc3 AI2 5 2 Pt 1000
Oil receiver, Prec Oil AI4 5 4 AKS 2050-59
