2.1.6 Function Setups
The Function set-up provides quick and easy access to all parameters required for the majority of ADAP-KOOL applications including most VAV and CAV
supply and return fans, cooling tower fans, Primary, Secondary and Condenser Water Pumps and other pump, fan and compressor applications.
How to access Function Set-up - example
How to change the output on “Analog output 42”
130BT110.1
0

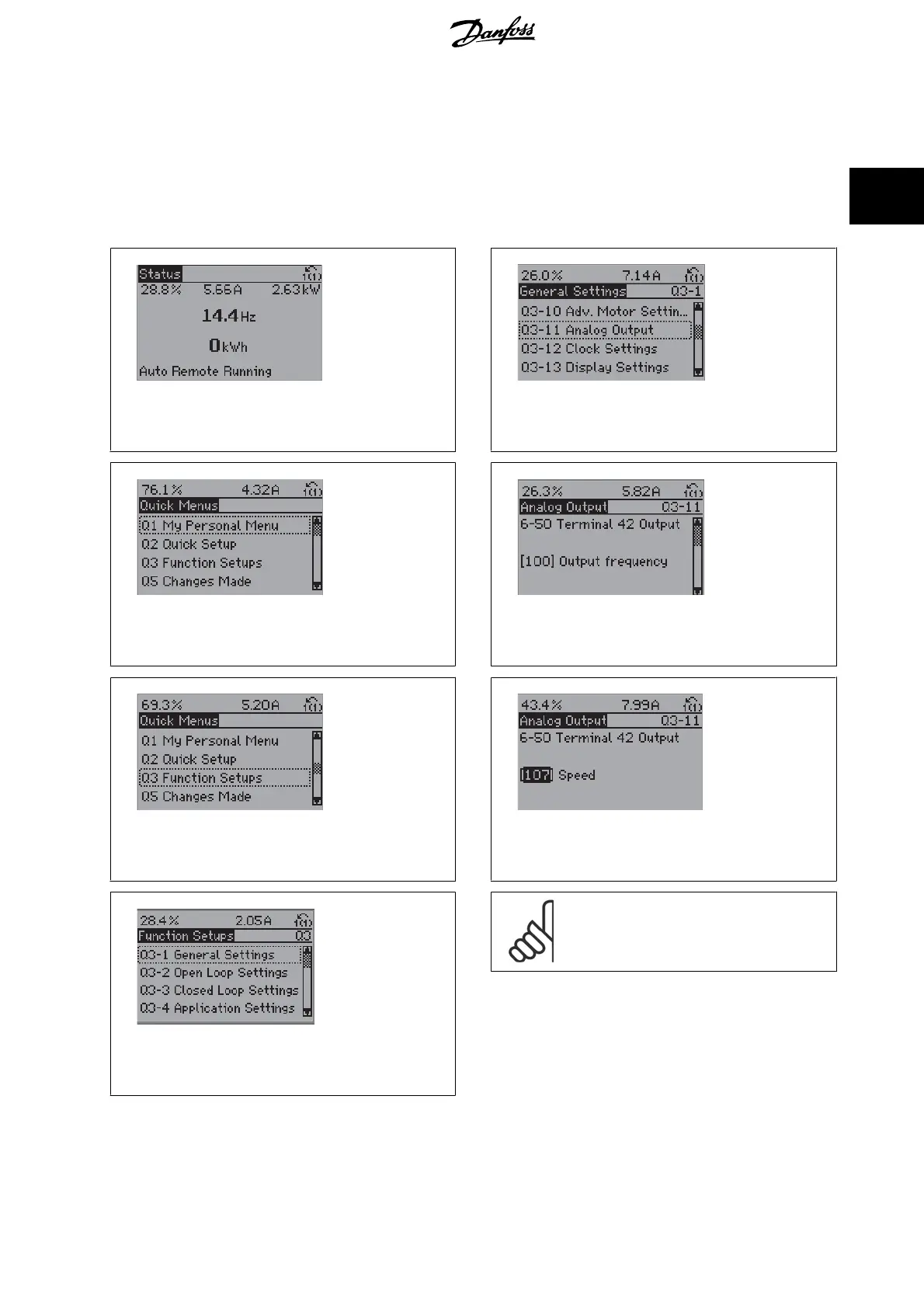

Illustration 2.7: Step 1: Turn on the frequency converter
(yellow LED lights)
130B
T111.1
0
Illustration 2.8: Step 2: Press the [Quick Menus] button
(Quick Menus choices appear).
130B
T112.1
0
Illustration 2.9: Step 3: Use the up/down navigation keys to
scroll down to Function Setups. Press [OK].
130B
T113.1
0
Illustration 2.10: Step 4: Function Setups choices appear.
Choose 03-1
General Settings
. Press [OK].
130B
T114.1
0
Illustration 2.11: Step 5: Use the up/down navigation keys
to scroll down to i.e. 03-11
Analog Outputs
. Press [OK].
130BT115.1
0
Illustration 2.12: Step 6: Choose parameter 6-50
Terminal
42 Output
. Press [OK].
130B
T116.1
0
Illustration 2.13: Step 7: Use the up/down navigation keys
to select between the different choices. Press [OK].
NB!
For the quickest and easiest setup of the AKD102,
please use the AKD Wizard (see chapter
Introduction
)
ADAP-KOOL
®
Drive Programming Guide 2 How to Programme
MG.11.N1.02 - VLT
®
is a registered Danfoss trademark
25
