Warnings are shown on display, programmed output or serial bus.
4-50 Warning Current Low
Range: Function:
0.00 A* [0.00 - par. 4-51 A] Enter the I
LOW
value. When the motor current falls below this limit (I
LOW
), the display reads CURRENT
LOW. The signal outputs can be programmed to produce a status signal on terminal 27 or 29 and

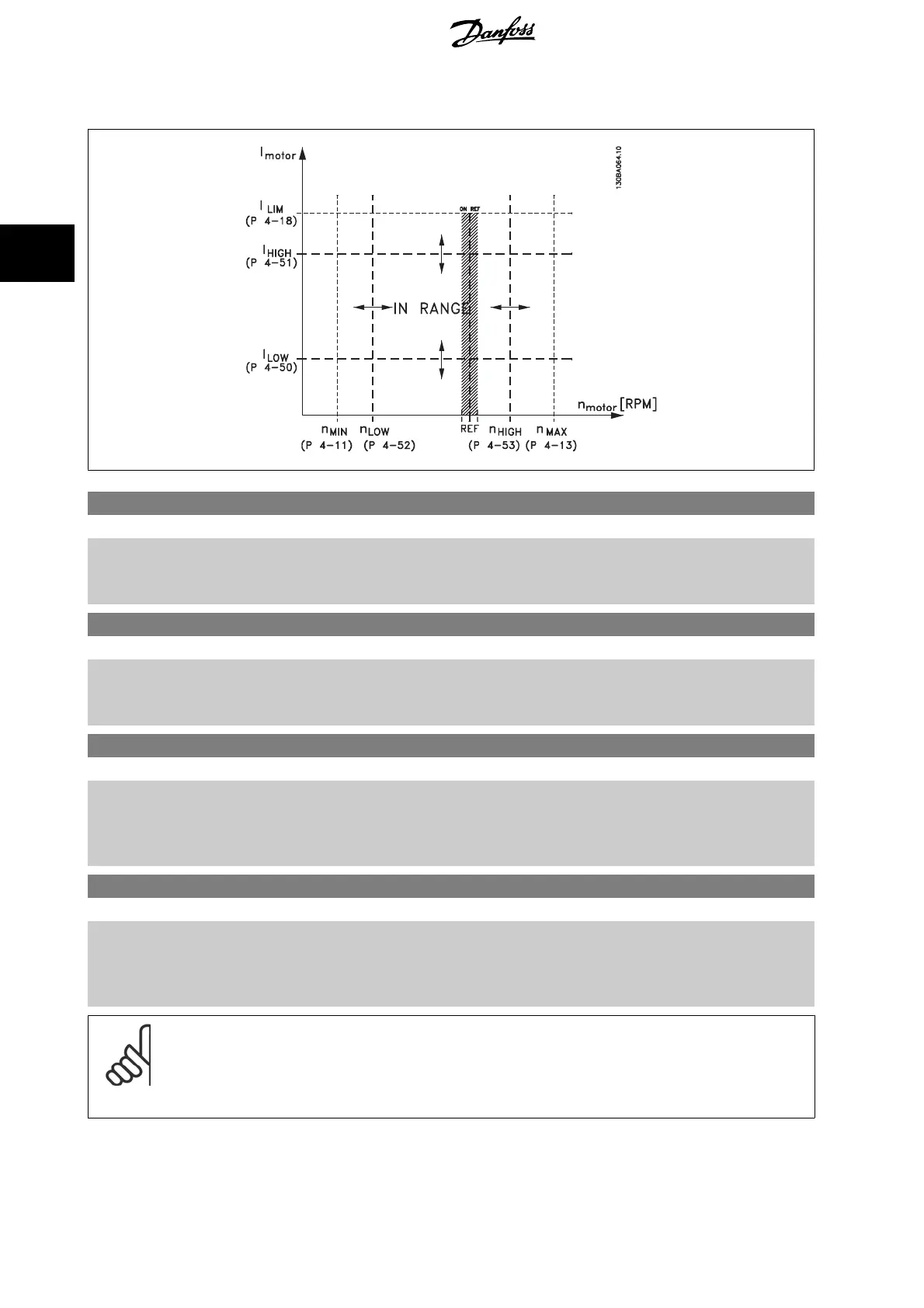

on relay output 01 or 02. Refer to the drawing in this section.
4-51 Warning Current High
Range: Function:
par. 16-37
A*
[par. 4-50 - par. 16-37 A] Enter the I
HIGH
value. When the motor current exceeds this limit (I
HIGH
), the display reads CURRENT
HIGH. The signal outputs can be programmed to produce a status signal on terminal 27 or 29 and
on relay output 01 or 02. Refer to the drawing in this section.
4-52 Warning Speed Low
Range: Function:
0 RPM* [0 - par. 4-53 RPM] Enter the n
LOW
value. When the motor speed falls below this limit (n
LOW
) the display reads SPEED
LOW. The signal outputs can be programmed to produce a status signal on terminal 27 or 29 and
on relay output 01 or 02. Programme the lower signal limit of the motor speed, n
LOW
, within the
normal working range of the frequency converter. Refer to the drawing in this section.
4-53 Warning Speed High
Range: Function:
par. 4-13
RPM*
[par. 4-52 - par. 4-13 RPM] Enter the n
HIGH
value. When the motor speed exceeds this limit (n
HIGH
), the display reads SPEED
HIGH. The signal outputs can be programmed to produce a status signal on terminal 27 or 29 and
on relay output 01 or 02. Programme the upper signal limit of the motor speed, n
HIGH
, within the
normal working range of the frequency converter. Refer to the drawing in this section.
NB!
Any changes in par.4-13
Motor Speed High Limit [RPM] will reset the value in par.4-53 Warning Speed High to the same value as set
in par.4-13
Motor Speed High Limit [RPM] .
If a different value is needed in par.4-53
Warning Speed High , it must be set after programming of par.4-13 Motor Speed High Limit
[RPM]
!
