36 RS8FR302 © Danfoss 2015-08 AK-LM 330
11

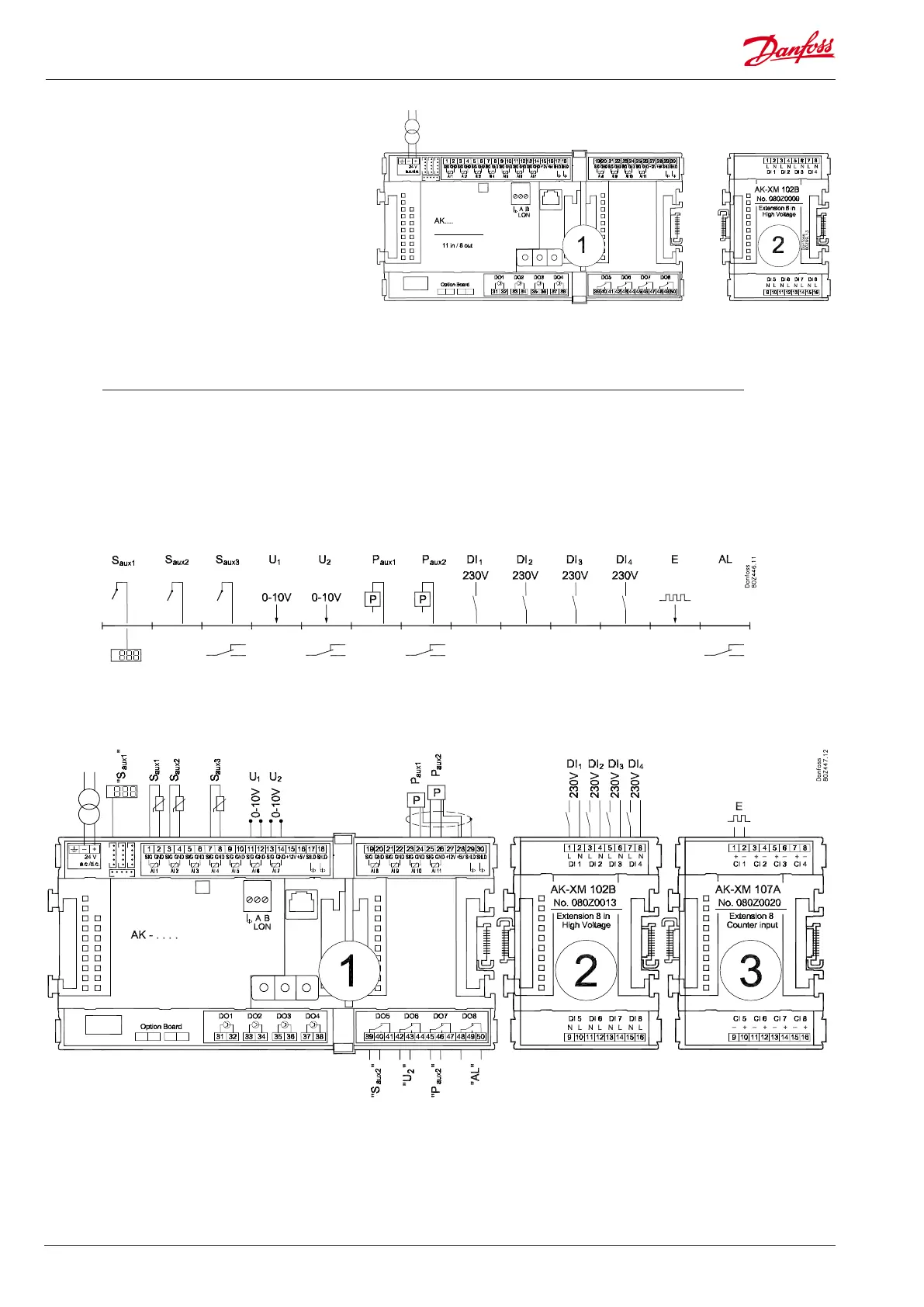

Connection diagram
Drawings of the individual modules may be
ordered from Danfoss.
Format = dwg and dxf.
You may then yourself write the module
number in the circle and draw the individual
connections.
