50 RS8FR302 © Danfoss 2015-08 AK-LM 330

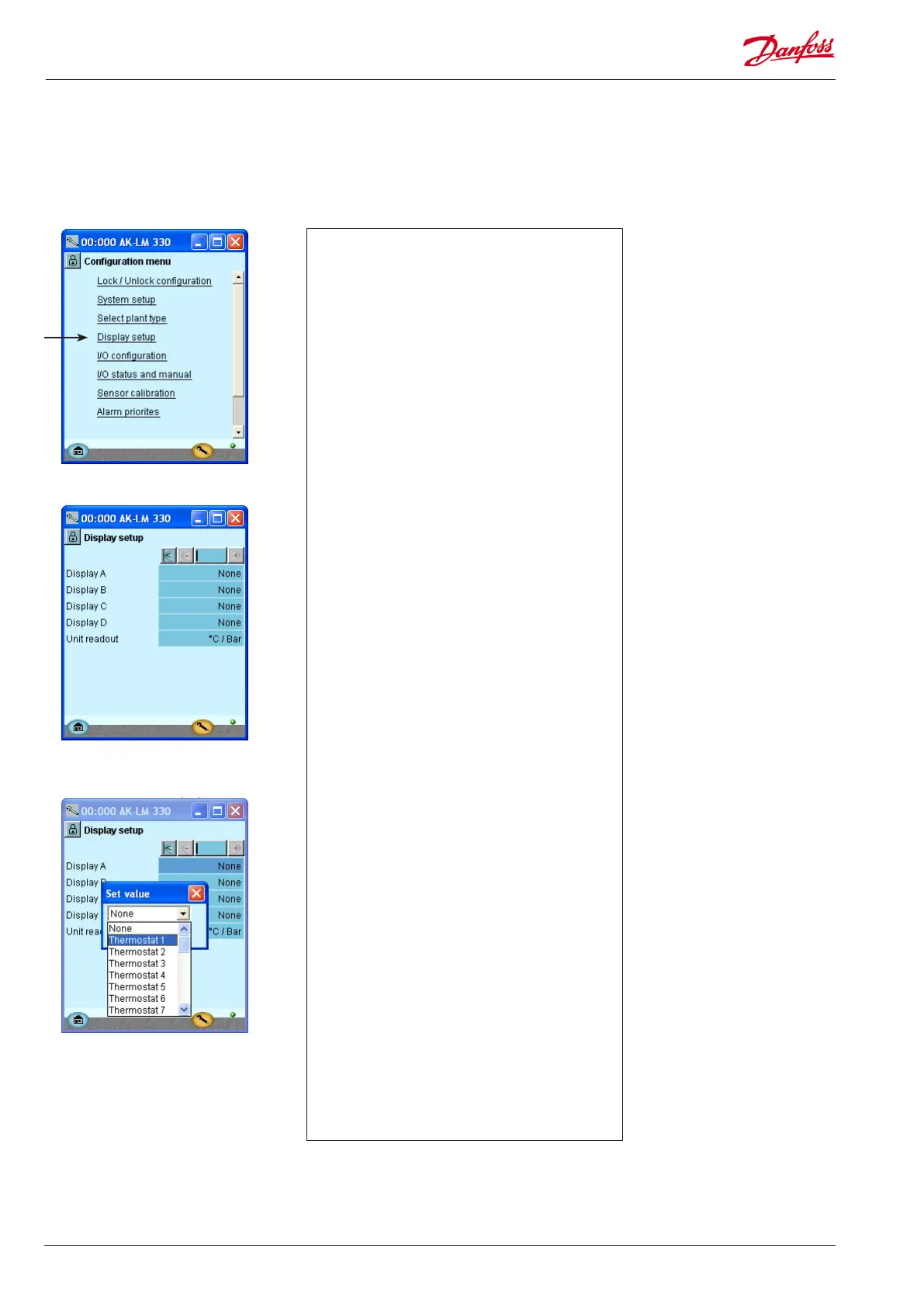

Set Display setup
1. Go to Conguration menu
2. Select Display
Press the line Display setup
3. Set display
4. Select view in display A
5. Select view for other display
6. Select measuring unit i.e. °C
In our example, the temperature display for
Thermostat 1 is to be read on Display A.
Up to four displays can be tted.
Each display can continuously
show a value for the function
concerned.
For thermostats it is the tempera-
ture reading after calibration.
For pressostats it is the pressure
reading after calibration.
For On/O signals it is the current
alarm's status (the input status
after the end of the delay time).
The following displays can be
selected:
Thermostat 1
Thermostat 2
Thermostat 3
Thermostat 4
Thermostat 5
Thermostat 6
Thermostat 7
Thermostat 8
Thermostat 9
Thermostat 10
Pressostat 1
Pressostat 2
Pressostat 3
Pressostat 4
Pressostat 5
DI1 ALM
DI2 ALM
DI3 ALM
DI4 ALM
DI5 ALM
DI6 ALM
DI7 ALM
DI8 ALM
DI9 ALM
DI10 ALM
DI11 ALM
DI12 ALM
DI13 ALM
DI14 ALM
DI15 ALM
DI16 ALM
