5. Conguration of Analog
inputs signals
Conguration - continued

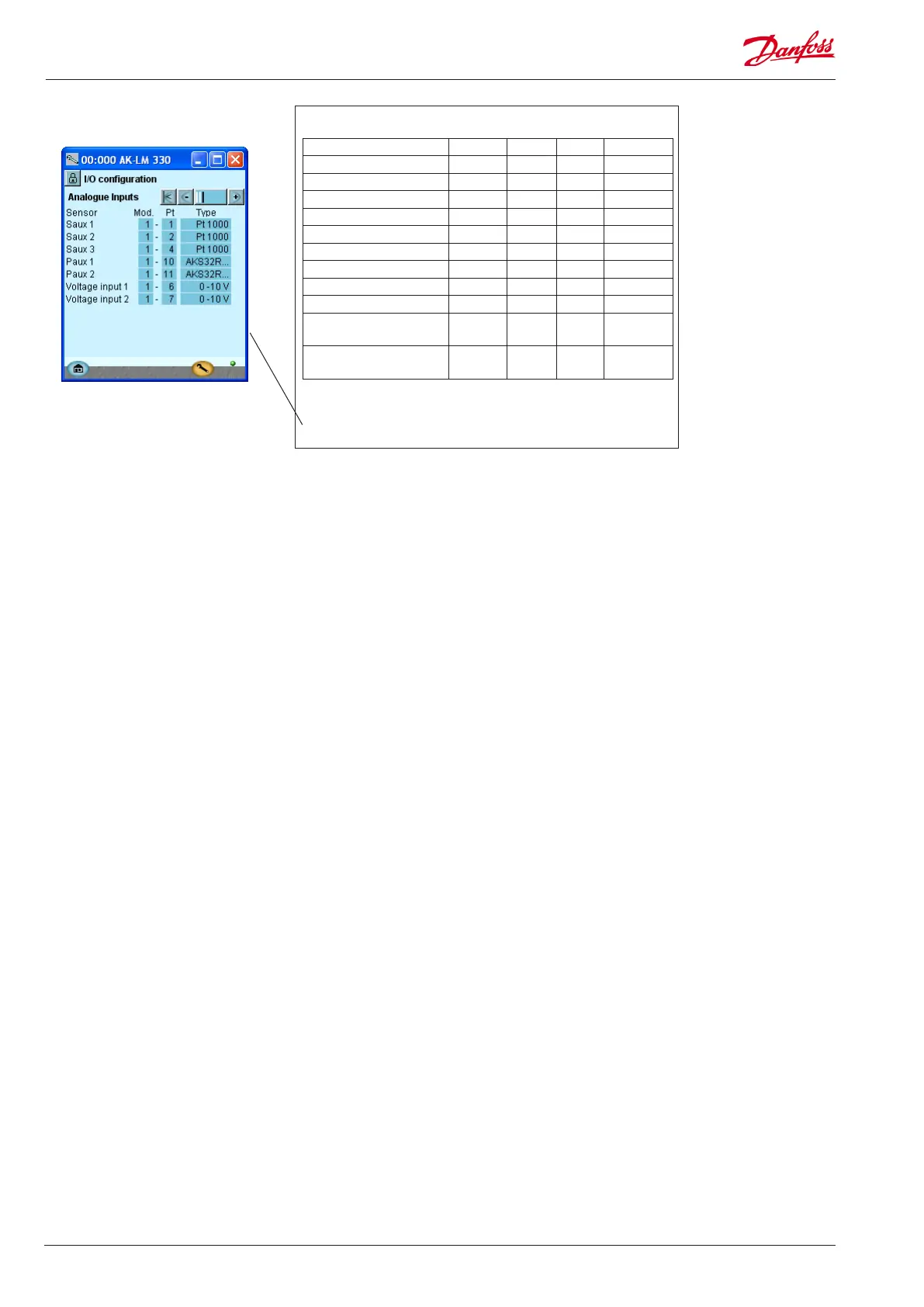

We set up the analog inputs for the sensors.
5 - Analog inputs
The possible signals are the
following:
Temperature sensors:
Saux 1 - 10
Setting:
• Pt1000
• PTC 1000
Pressure transmitters::
Paux 1 - 5
Setting:
• AKS 32, -1 – 6 Bar
• AKS 32R, -1 – 6 Bar
• AKS 32, - 1 – 9 Bar
• AKS 32R, -1 – 9 Bar
• AKS 32, - 1 – 12 Bar
• AKS 32R, -1 – 12 Bar
• AKS 32, - 1 – 20 Bar
• AKS 32R, -1 – 20 Bar
• AKS 32, - 1 – 34 Bar
• AKS 32R, -1 – 34 Bar
• AKS 32, - 1 – 50 Bar
• AKS 32R, -1 – 50 Bar
• AKS 2050, -1 – 59 Bar
• AKS 2050, -1 – 99 Bar
• AKS 2050, -1 – 159 Bar
• User dened (only ratio-
metric. The min. and max.
values of the pressure
interval must be set).
Voltage signals:
Voltage input 1 - 5
Setting:
• 0 - 5
• 1 - 5
• 0 - 10
• 2 - 10
Analog signales Indgang Modul Punkt Type
Air temperature - Saux1 AI1 1 1 Pt 1000
Air temperature - Saux2 AI2 1 2 Pt 1000
AI3 1 3
Air temperature - Saux3 AI4 1 4 Pt 1000
AI5 1 5
Voltage signal - U1 AI6 1 6 0-10 V
Voltage signal - U2 AI7 1 7 0-10 V
AI8 1 8
AI9 1 9
Pressure measurement, to 12
bar - Paux1
AI10 1 10 AKS 32R-12
Pressure measurement, to 34
bar - Paux2
AI11 1 11 AKS 32R-34
