Operation guide Installation, Operation and Maintenance APP 53-92 pumps

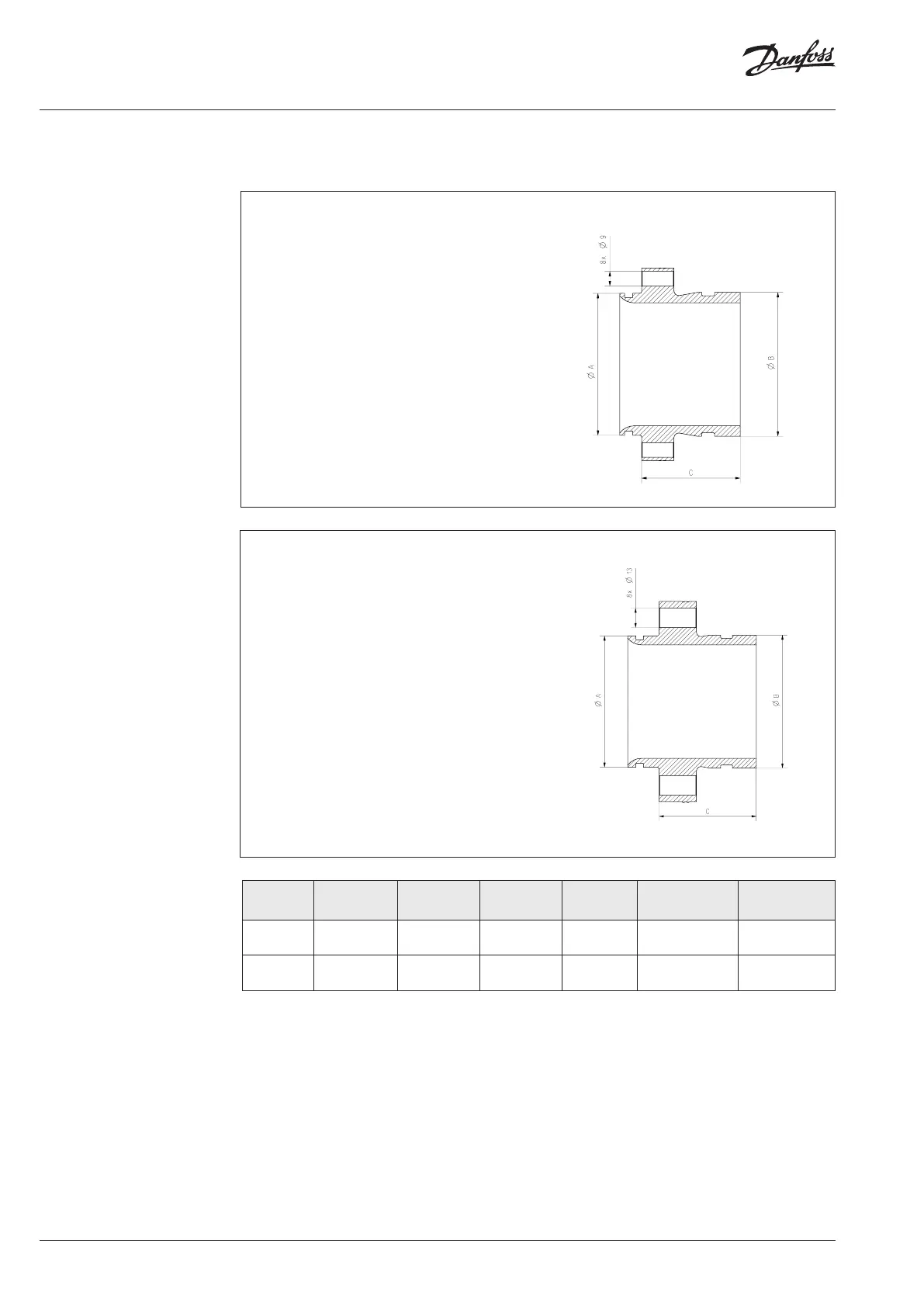

11. Pump connections 11.1 APP 53 - 92
3” Victaulic OSG LP Inlet
3” Victaulic OSG HP Outlet
Connection
Diameter
(A)
Victaulic
1)
(B)
Length
(C)
Material Max. Pressure Code number
3” Inlet
connector
87.8 mm
(3.46 inch)
3” Vic. OSG
61.0 mm
(2.40”)
Super
Duplex
10 barg
(145 psig)
180Z1991
3” outlet
connector
87.8 mm
(3.46 inch)
3” Vic. OSG
65.0 mm
(2.56”)
Super
Duplex
80 barg
(1160 psig)
180Z1992
1
) The installation instuction for Style 77DX is located in the Victaulic document I-100 Field Installation
Handbook (htpp://static.victaulic.com)
Use only Style 77DX coupling or equivalent.
