Operation guide Installation, Operation and Maintenance APP 53-92 pumps
BoWex-ELASTIC
®
Operating/Assembly instructions
Type HEW, HEW Compact and HEW-ZS
KTR-N
Sheet:
Edition:
40114 EN
13
of 22
7
Please observe protection
note ISO 16016.
Drawn:
2017-04-24 Shg/Hk
Replacing:
KTR-N dated 2013-06-10
Verified:
2017-04-24 Shg
Replaced by:
Please note:
 The displacement figures specified in tables 13 and 14 are maximum figures which must not arise in parallel. If
radial and angular displacements arise at the same time, the permissible displacement values may only be
used proportionally (see illustration 14).
 The displacement figures specified are general standard figures that apply up to an ambient temperature of
80 °C, ensuring a sufficient service life of the BoWex-ELASTIC
®
coupling.
Displacement figures between the speeds specified have to be interpolated accordingly. If necessary, please
ask about the displacement for the corresponding coupling type.
 Please inspect with a dial gauge, ruler or feeler whether the permissible displacement figures of tables 13 and
14 can be observed.

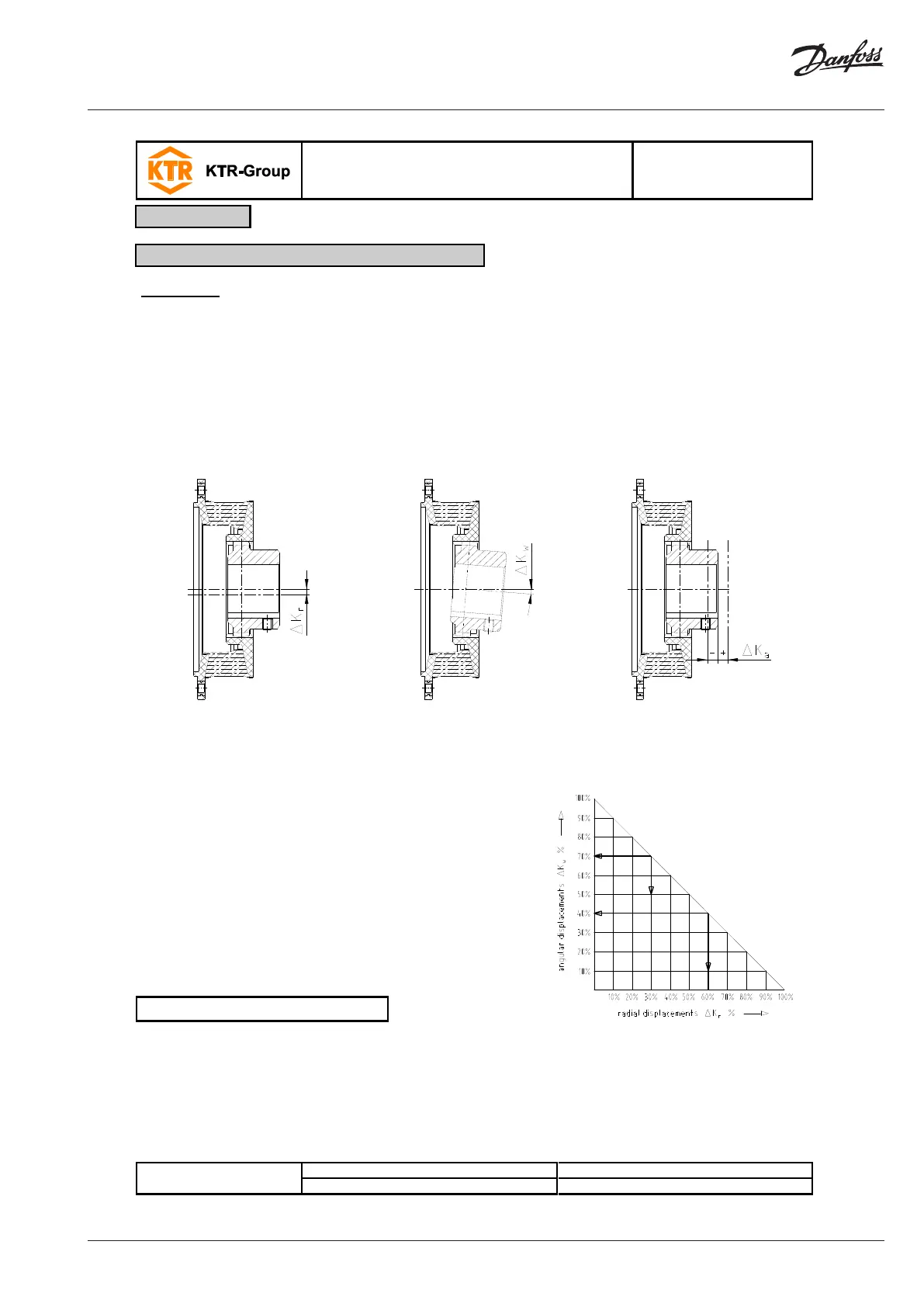

Radial displacement
Angular displacement
Axial displacement
Illustration 13: Displacements
Examples of the displacement combina-
tions specified in illustration 14:
Example 1:
K
r
= 30 %
K
w
= 70 %
Example 2:
K
r
= 60 %
K
w
= 40 %
Illustration 14: Combina-
tions of displacement
K
total
= K
r
+ K
w
 100 %
4 Assembly
4.4 Displacements - alignment of the couplings
