4.1.6 Initial Commissioning
The easiest way of carrying out the initial commissioning is by pressing [Quick Menu] and following the quick setup procedure us-
ing LCP 102 (read the following table from left to right). The example applies to open-loop applications.

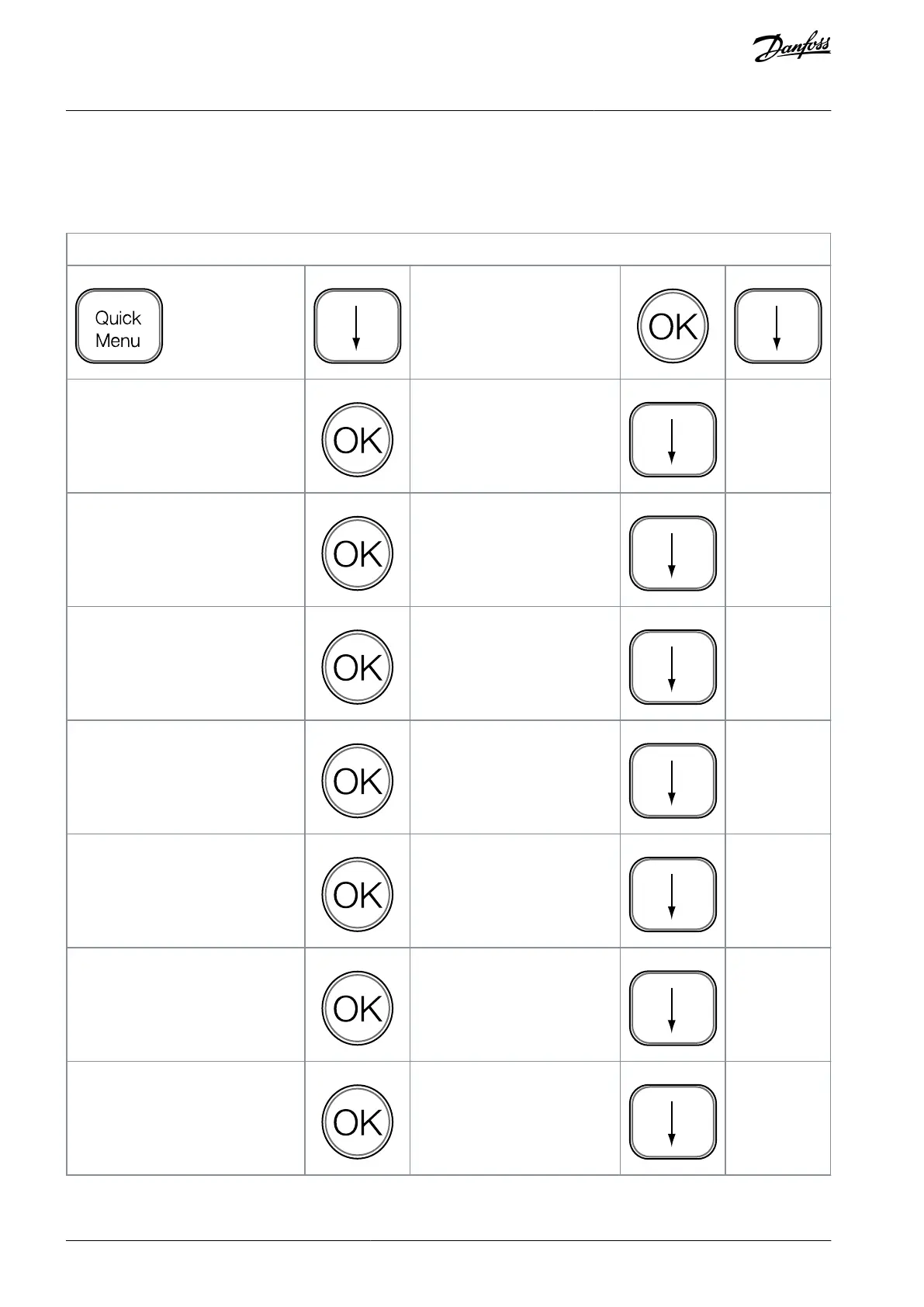

Table 3: Quick Setup Procedure
Press
Q2 Quick Menu.
Parameter 0-01 Language
Set language.
Parameter 1-20 Motor Power [kW]
Set motor nameplate power.
Parameter 1-22 Motor Voltage
Set nameplate voltage.
Parameter 1-23 Motor Frequency
Set nameplate frequency.
Parameter 1-24 Motor Current
Set nameplate current.
Parameter 1-25 Motor Nominal Speed
Set nameplate speed in RPM.
Parameter 5-12 Terminal 27 Digital In-
put
If terminal default is [2] Coast in-
verse, it is possible to change this
setting to [0] No function. No con-
nection to terminal 27 is then
needed for running AMA.
