DEVIreg™ 850 IV
Installation instruction14

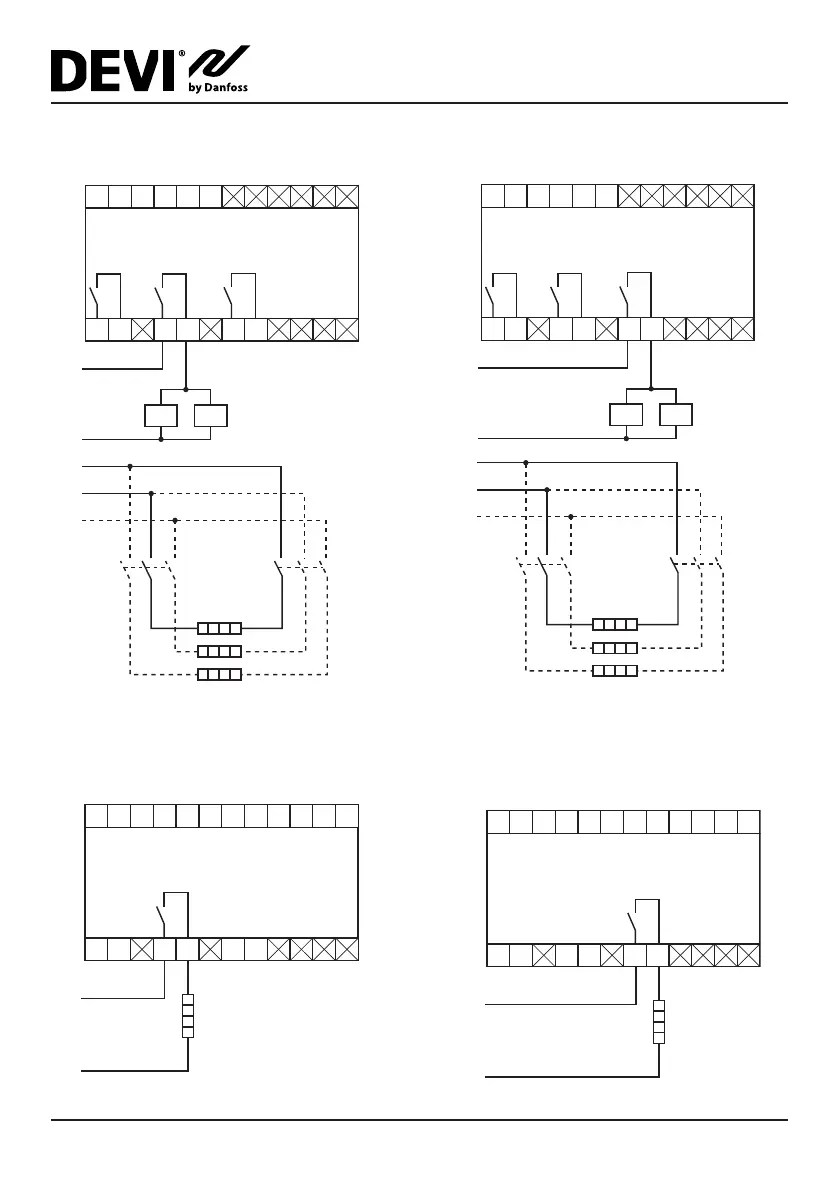

400 V cables, 2–3 Phase/1–3 Loads — System A
13 14 15 16 17 18 19 20 21 22 23 24
1 2 3 4 5 6 7 8 9 10 11 12
L1
L2
L3
N
L
K1 K2
K1 K2
DEVIreg™ 850 IV
400 V cables
400 V cables, 2–3 Phase/1–3 Loads — System B
DEVIreg™ 850 IV
13 14 15 16 17 18 19 20 21 22 23 24
1 2 3 4 5 6 7 8 9 10 11 12
L1
L2
L3
N
L
K1 K2
K1 K2
400 V cables
Direct connection — System A
13 14 15 16 17 18 19 20 21 22 23 24
1 2 3 4 5 6 7 8 9 10 11 12
L
N
max. 15 A
DEVIreg™ 850 IV
230 V cables
Direct connection — System B
DEVIreg™ 850 IV
13 14 15 16 17 18 19 20 21 22 23 24
1 2 3 4 5 6 7 8 9 10 11 12
L
N
max. 15 A
230 V cables
Fig� D
Fig� F
Fig� E
Fig� G
