Design piping
Included in tandem kit
Supplied with the compressor

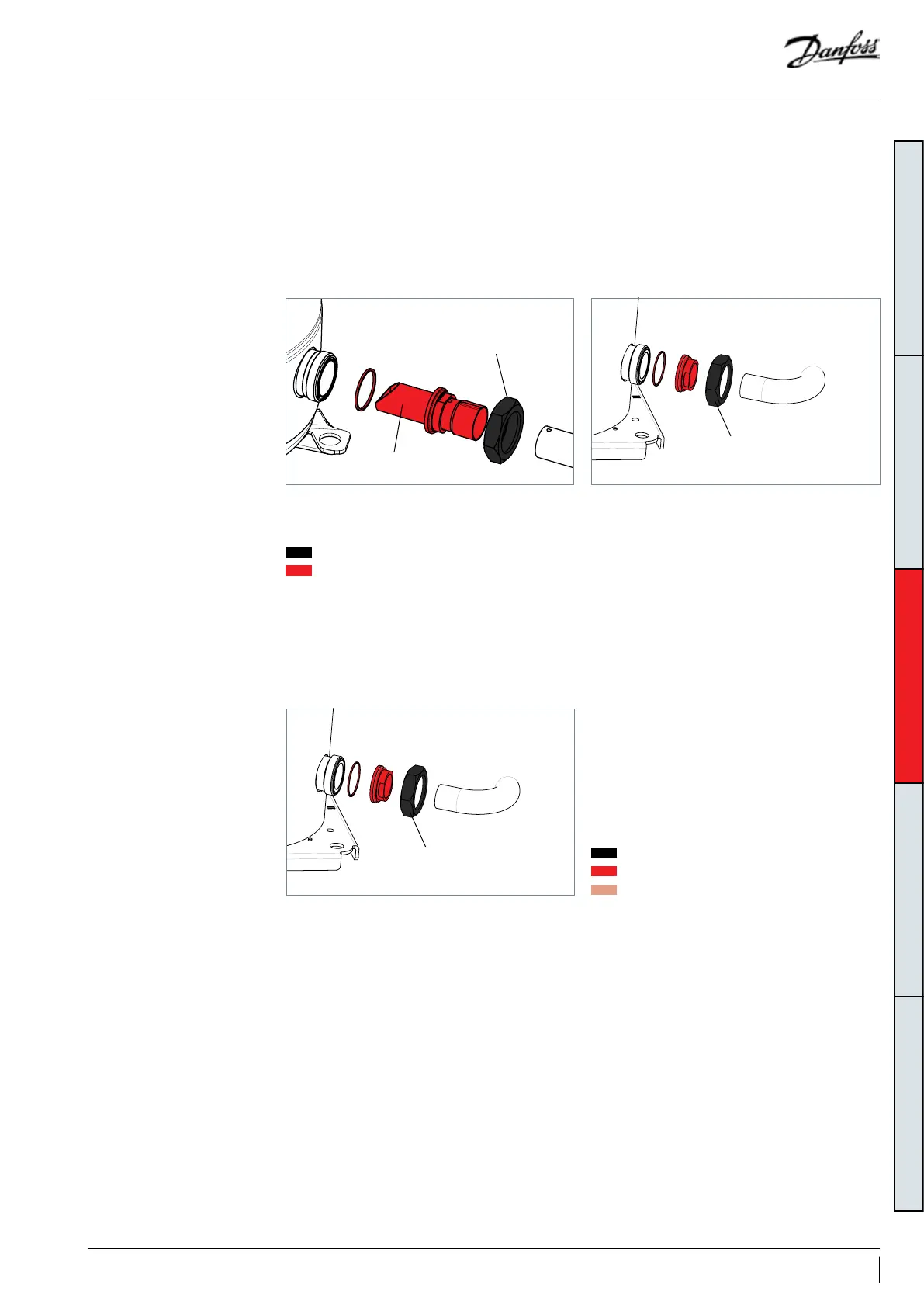

The oil level is balanced by a pipe of 1"3/8 oil
equalization line.
In order to ensure best oil balance, the organ
pipe need to be mounted inside the DSH120, 161
or 184 oil equalization port as indicated on below
picture. DSH240, 295 or 381 has integrated organ
pipe inside the oil equalization port.
To connect the equalization line on rotolock
connections, the organ pipe, adaptor sleeves,
Teflon gaskets included in the tandem accessory
kit must be used.
For DSH120, DSH161 or DSH184 For DSH240, DSH295 or DSH381
DSH360X-424X-456X-
479X-565X
DSH482-535, DSH590 to
DSH1350
Tightening torque 100Nm
Organ pipe
The oil level is balanced by a pipe of 1"3/8
or 1"5/8. To connect the equalization line on
rotolock connections, the adaptor sleeves
included in the tandem or trio accessory kit must
be used.
Supplied with the compressor
Included in tandem or trio accessory kit
Not supplied
Tightening torque 145Nm
Tightening torque 145Nm
27FRCC.PC.045.A7.02
