Compressor model designation
Danfoss scroll compressor DSH for R410A is
available as single compressor and can be
assembled in tandem or trio combinations.
The example below presents the compressor
nomenclature which equals the technical
reference as shown on the compressor
nameplate. Code numbers for ordering are listed
in section “Ordering information”.

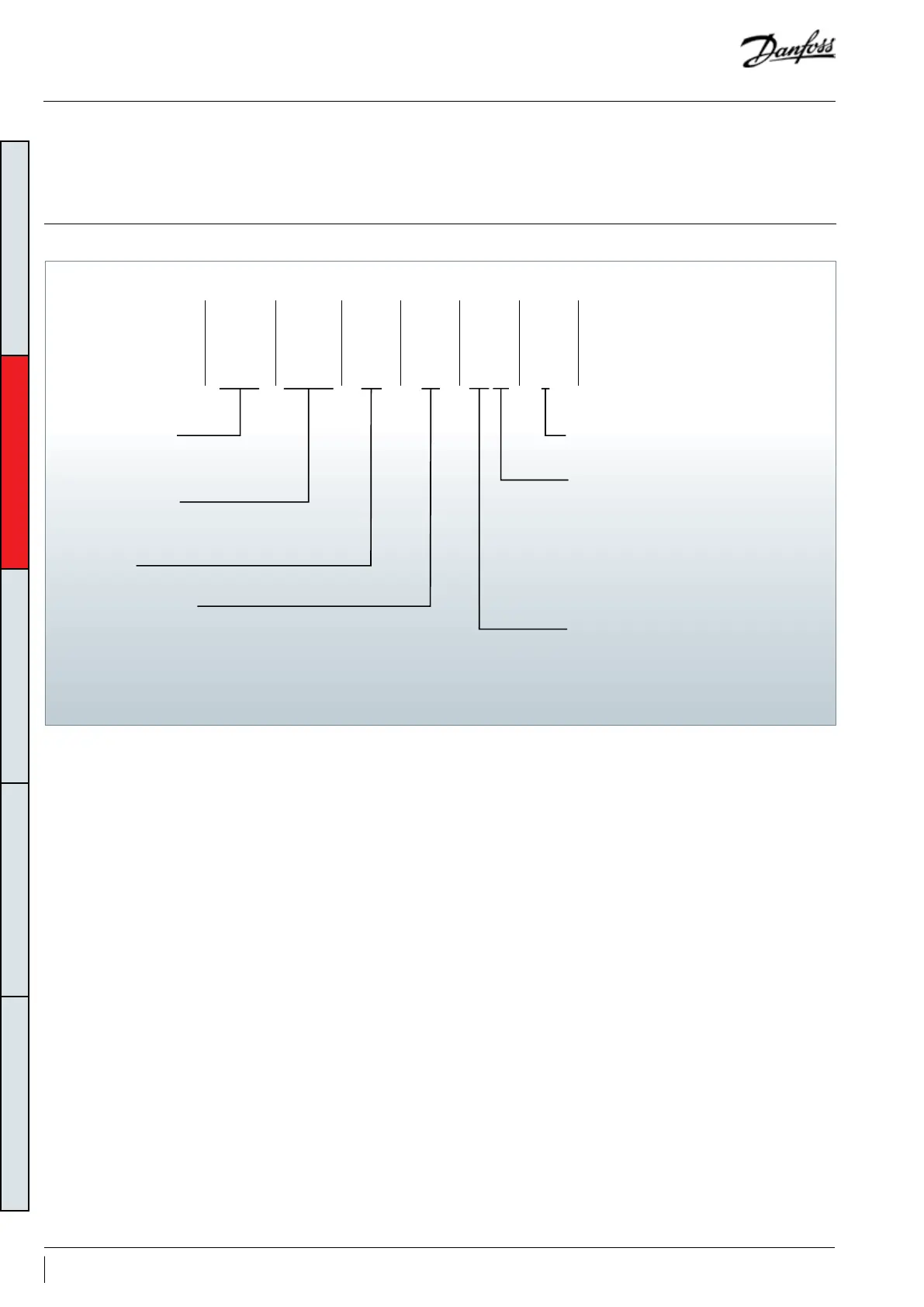

Nomenclature
Family, lubricant
& refrigerant
DSH: Scroll, POE lubricant,
for R410A
Motor protection
A: Electronic module, 24V AC
B: Electronic module, 110-240V
L: Internal overload protector
Suction and discharge connections
A: Brazed connections
Family,
lubricant
& refrigerant
Nominal
capacity
Approvals Voltage Version Evolution
index
Evolution index
A~Z
A4DSH AAB485
Motor voltage code
3: 200-230V/3~/60Hz
4: 380-415V/3~/50Hz - 460V/3~/60Hz
for DSH240 and DSH381: 380-400V/3~/50Hz - 460V/3~/60Hz
7: 575V/3~/60Hz
9: for DSH090 to DSH184: 380-400V/3~/60Hz
for DSH240 to DSH485: 380V/3~/60Hz
UL index
Nominal capacity
in thousand Btu/h at 60Hz, R410A,
ARI conditions
6 FRCC.PC.045.A7.02
