Installation

12a

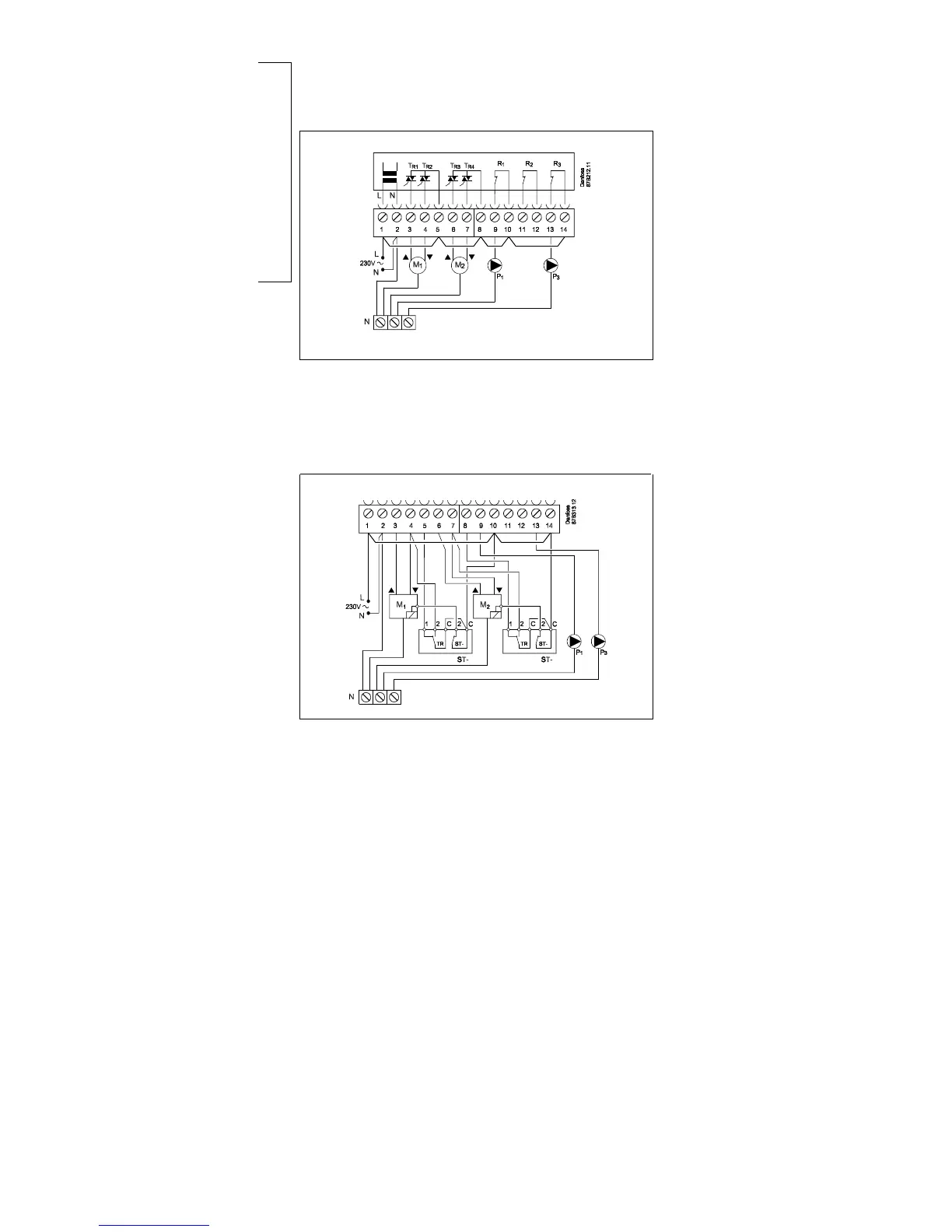

230 V a.c. connections - without safety thermostat

Establish these jumpers:

1-5-8-10-14

and jumper 2 to common N-terminal.

230 V a.c. connections - with safety thermostat

This circuit diagram is only valid if Danfoss actuators are used

Establish these jumpers:

1-10-14

and jumper 2 to common N-terminal.

Safety thermostat:

4, 5 and 10 with ST- (safety thermostat)

and jumper 2 to common N-terminal.

Electrical connections -

230 V a.c. - in general
