Installation
The ECL Comfort controller is a universal controller that can
be used for various systems. Based on the shown standard
systems, it is possible to congure additional systems.
In this section you nd the most frequently used systems. If
your system is not quite as shown below, nd the diagram
which has the best resemblance with your system and make
your own combinations.
The functions can only be realized with ECL Comfort 300 and as of
controller version 1.08.

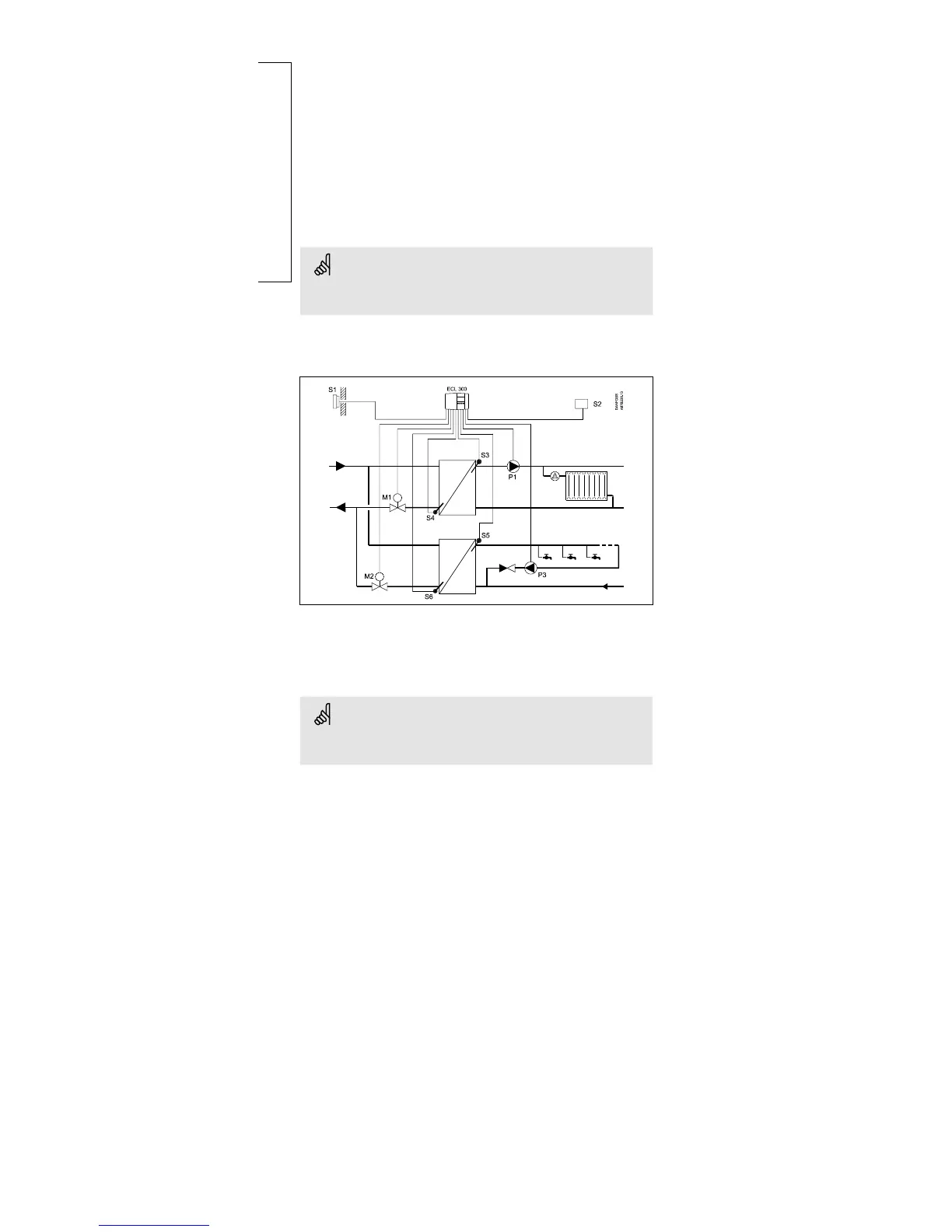

10.1 Indirectly connected heating system and DHW
circuit
System settings
Check that the setting in line 24, gear motor / thermo actuator,
is set correctly in both circuits.
System diagrams in this instruction are principal drawings and do
not contain all components which are necessary in your systems.
Identifying the system type
10a
