4 Applications

EKE series devices are used where precise control of superheat in air conditioning system is needed. It helps

achieving high energy eciency and reliable operation

EKE serves 2 main applications:

• Controller Mode

◦ Standalone Superheat control

◦ Temperature control

• Driver Mode

The need for cooling can either be dened by the incoming media (S3) or the outgoing media (S4) temperature

4.1 Controller Mode

4.1.1 Superheat control mode

EKE can serve as a PI controller for stepper motor valve that controls the superheat of the evaporator based on a

pressure Pe and temperature (S2) sensors. In superheat mode the controller will control the superheat to be stable

and close to the superheat reference. If superheat is too low the ow in the expansion is decreased and superheat

will be higher

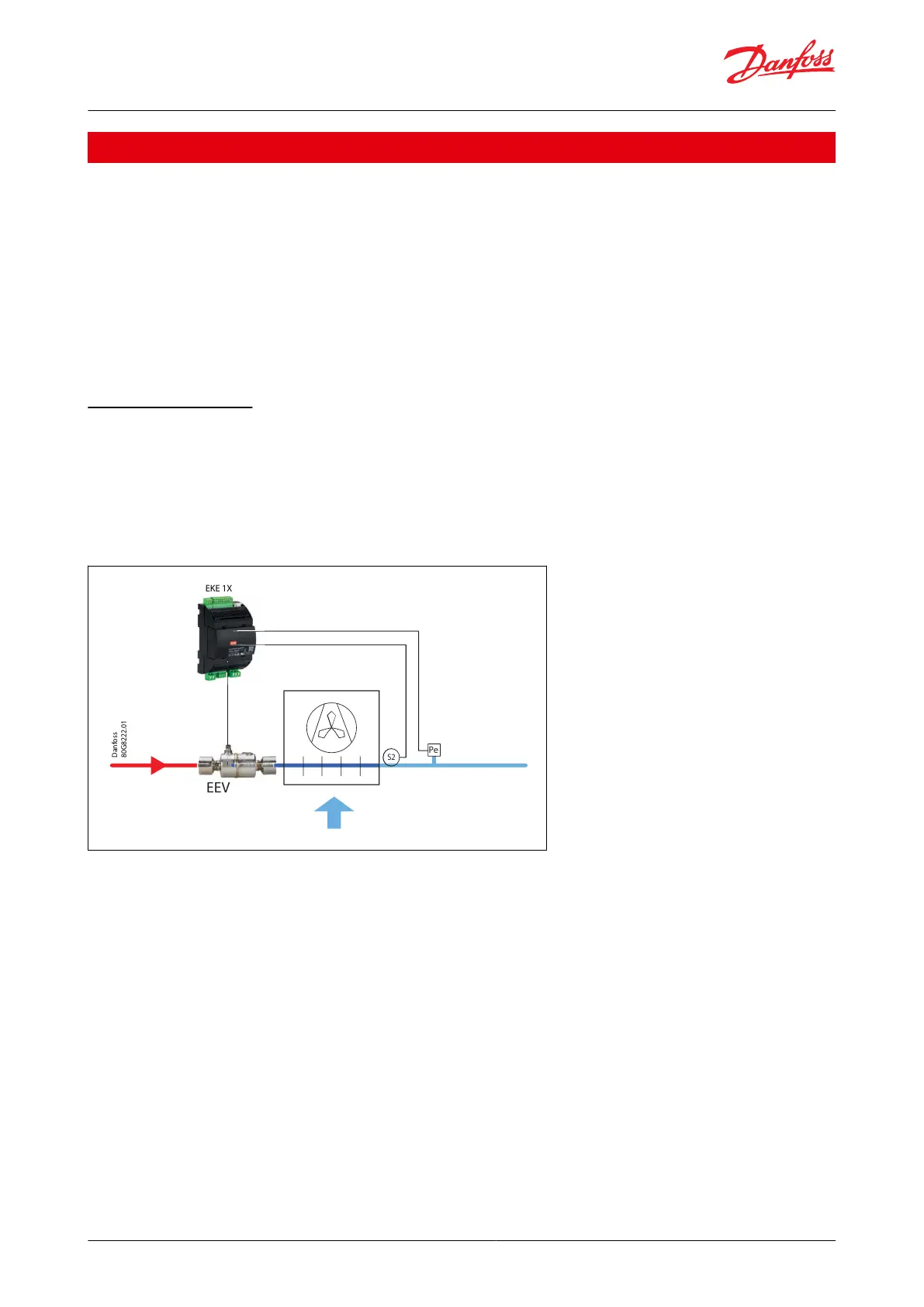

Figure 19: Superheat control application

Danf

oss

80G8222.01

EEV

EKE 1X

4.1.2 Temperature control mode

Temperature control Can be accomplished via a signal from temperature sensor S3 placed in the air ow before the

evaporator or S4 placed in the air ow after the evaporator.

EKE has 2 methods of controlling temperature:

• ON/OFF thermostat

• Modulating thermostat (MTR)

The temperature control can be done using an ON/OFF thermostat that opens/closes the stepper valve as per S3/S4

temperature values or modulating thermostat that regulates the stepper valve more smoothly based on S3/S4

temperature setpoints. The need for cooling can either be dened by the incoming media (S3) or the outgoing

media (S4) temperature

Superheat controller, Type EKE 1A, 1B, 1C, 1D
