NOTE:
This mode only has a home screen and do not have any menu structure. All function is carried out using the
“Escape”, “Up”, “Down” and “Enter” buttons on MMIGRS2
Service mode is only available via MMIGRS2 display. This function is not possible in KoolProg

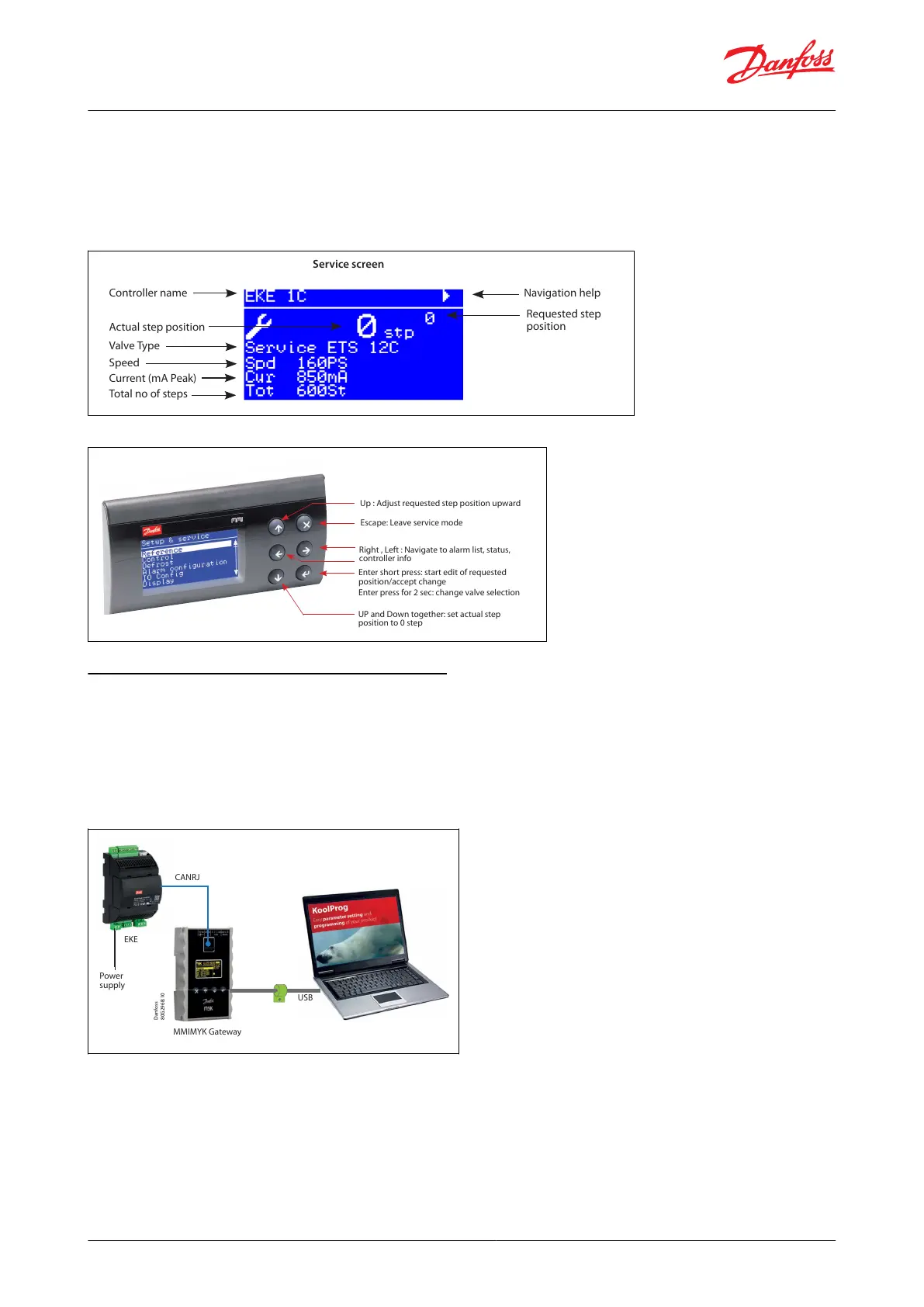

Figure 34: Service mode through MMIGRS2
Service screen
Controller name
Actual step position
Valve Type
Speed
Current (mA Peak)
Total no of steps
Navigation help
Requested step
position
Figure 35: Service mode through MMIGRS2
Right , Left : Navigate to alarm list, status,
controller info
UP and Down together: set actual step
position to 0 step
Up : Adjust requested step position upward
Escape: Leave service mode
Enter short press: start edit of requested
position/accept change
Enter press for 2 sec: change valve selection
5.2 Conguration using KoolProg Software:
KoolProg is a software tool that can congure the EKE Controllers in fast and easy way. The main features of the
KoolProg are listed as follows
• Make Online changes to parameter congurations
• Monitor live status of inputs and outputs
• Quickly analyze controller behavior. and program patterns by using the graphical trending tool
Figure 36: Connecting koolprog to EKE 1x
CANRJ
USB
Danfoss
80G296B
.1
0
MMIMYK Gateway
EKE
Power
supply
NOTE:
• Make sure to install the latest version of the EKE.
• The connection of the EKE to the koolprog software, must be done through the MMIKYK gateway.
• KoolProg software do not support multiple EKE controllers in a daisy chain network.
© Danfoss | Climate Solutions | 2022.06 BC398828796060en-000101 | 31
Superheat controller, Type EKE 1A, 1B, 1C, 1D
