Table 35: Start OD without protection
Parameter
Function
Description
N102
Startup mode
2 = Minimum OD without protection
N105
Startup time
Min value: 1 second | Max value: 600 seconds
After startup time the Startup OD is Disabled, and controller will switch to the set control mode.
N017
Startup OD
Starting OD degree of the valve.
Defrost sequence
Defrost Sequence must be initiated by the master controller. In a standalone conguration, the defrost mode is not
possible.
To initiate defrost, the system mode is changed from Heat pump to A/C, hereby the outdoor unit will act as a
condenser and the hot discharge gas from the compressor will defrost the coil. In some system electrical heaters are
used instead of reversible system but defrost sequence can still be used.

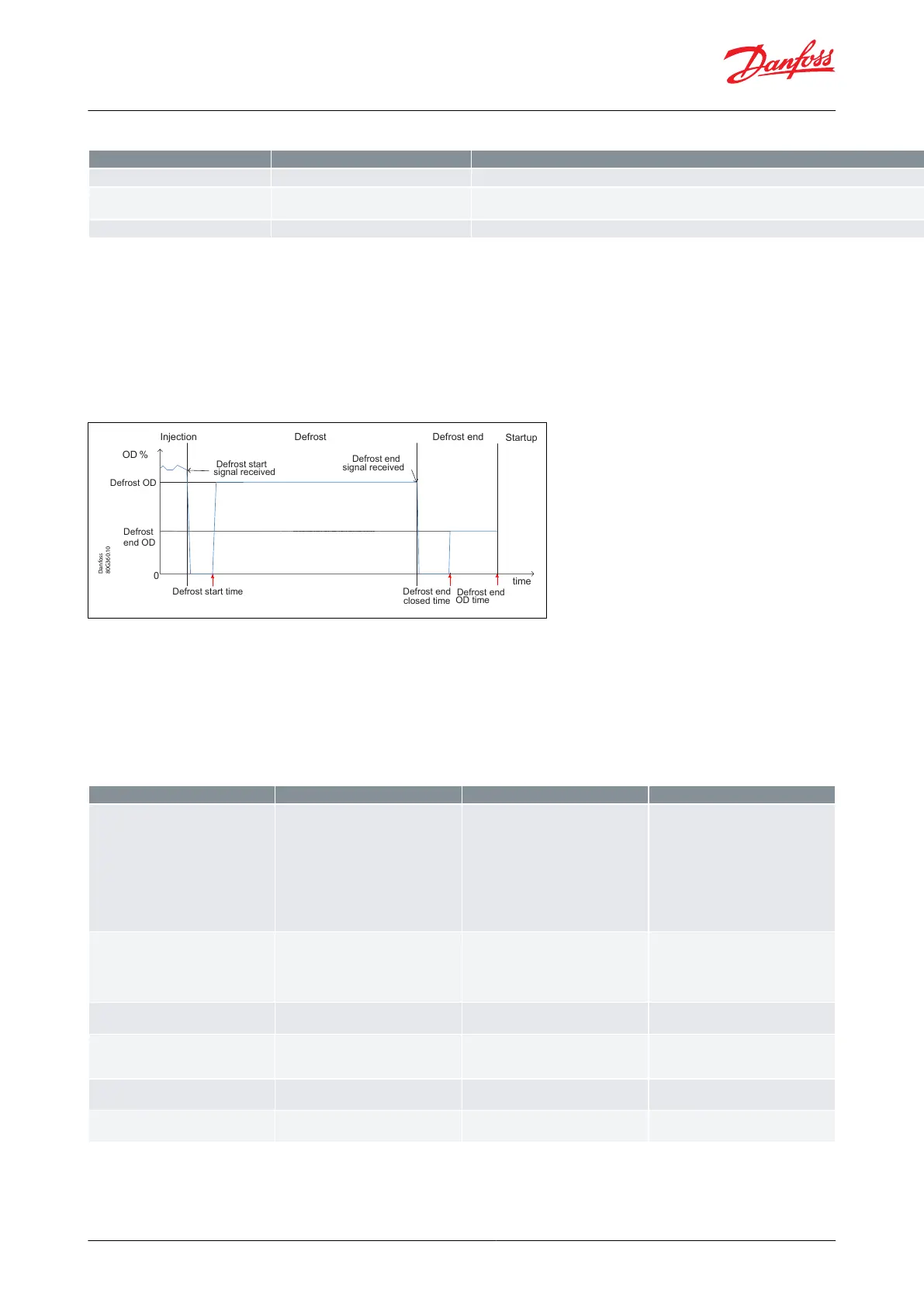

Figure 76: Defrost sequence
OD %
time
0
Defrost end
closed time
Defrost end
OD time
Defrost
end OD
Defrost OD
Injection
Defrost
Defrost end
Startup
Defrost end
signal received
Defrost start
signal received
Defrost start time
Danf
oss
80G360.10
The user sets the Defrost OD, the Defrost end OD, defrost start and end time (see table below).
The defrost start/end commands are received from one of the following options:
Modbus register (nonvolatile memory) – default OFF at power-up
DI’s for use as defrost start/stop. Only one DI can be assigned for defrost start/stop. Start is dened as a transition
from o to on, a transition from on to o is a stop signal.
Table 36: Defrost Sequence parameters
Parameter
Function
Description
Default
D101
Defrost start low pressure limit
The defrost sequence starts by closing
the valve, which is kept closed until the
‘D101 Defrost start low pressure limit’ is
reached or D102 ‘Defrost start time’ is
exceeded.
 WARNING:
This parameter is valid only if the de-
frost start time >0
1.0 brag
D102
Defrost start time
The defrost sequence starts by closing
the valve, which is kept closed until the
‘D102 ‘Defrost start time’ is exceeded or
‘D101 Defrost start low pressure limit’ is
reached
0 s
D100
Defrost OD
Sets the valve opening degree after the
Defrost start time is passed.
0%
D104
Defrost end closed time
After the defrost stop signal, the valve
closes and will open again after ‘Defrost
end closed time’ is exceeded
1s
D103
Defrost end OD time
End of the defrost, start of the startup
mode.
1s
D105
Defrost end OD
Sets the valve opening degree after De-
frost end closed time.
50%
6.3.2 Protection features
EKE 1x series has protection features that prevents the system from operating under bad conditions, these
protection features are:
Superheat controller, Type EKE 1A, 1B, 1C, 1D
© Danfoss | Climate Solutions | 2022.06 BC398828796060en-000101 | 52
