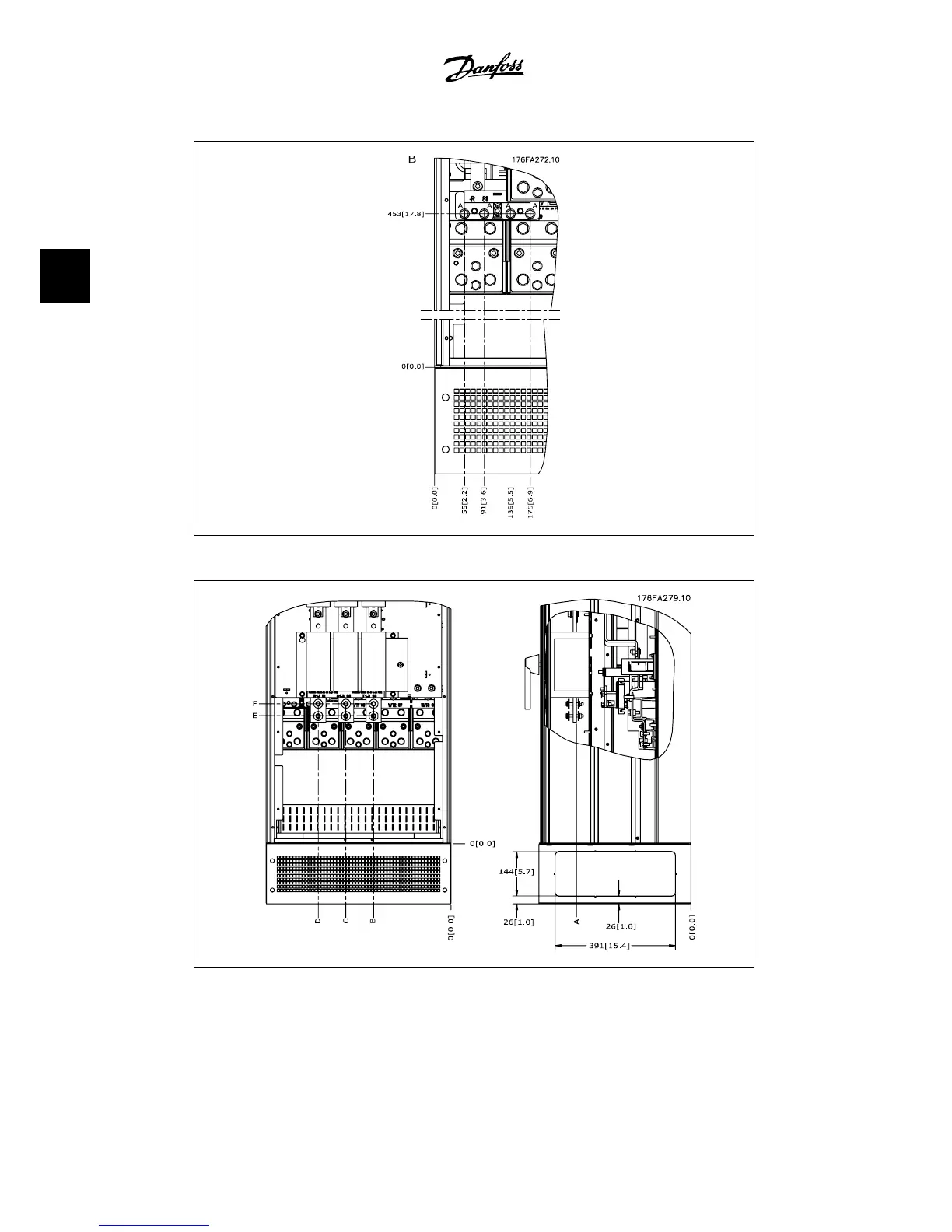

3.11: IP 21 (NEMA type 1) and IP 54 (NEMA type 12) enclosure power connection positions (detail B)
3.12: IP 21 (NEMA type 1) and IP 54 (NEMA type 12) enclosure power connection position of disconnect
switch
Terminal locations - E2 enclosures
Give thought to the following terminal positions when designing the cable access.
3. How to Install
VLT
®
HVAC DRIVE High Power
Instruction Manual
26 MG.11.F1.22 - VLT
®
