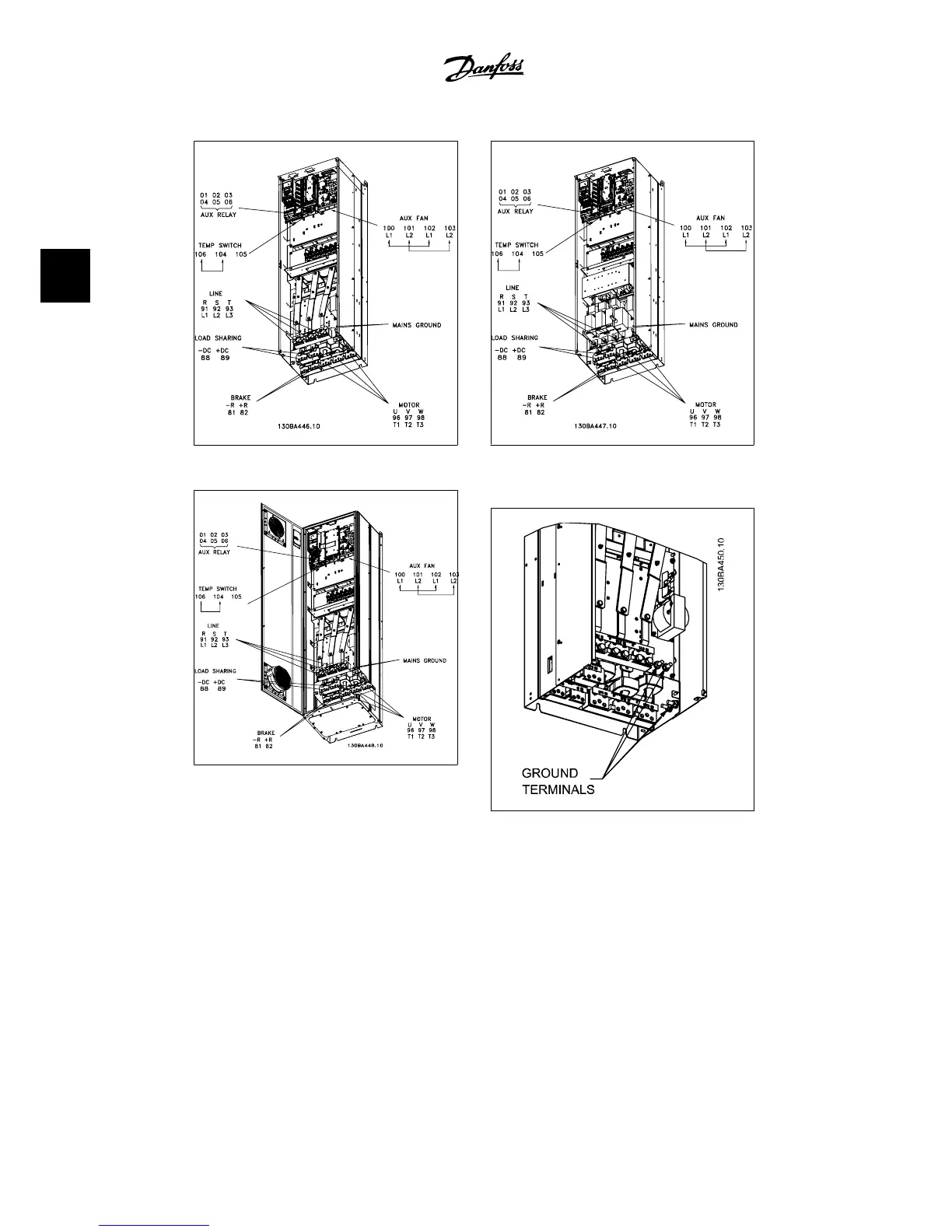

3.70: Compact IP 00 (Chassis), enclosure D3
3.71: Compact IP 21 (NEMA 1) and IP 54 (NEMA
12), enclosure D1
3.72: Compact IP 00 (Chassis) with disconnect,
fuse and RFI filter, enclosure D4
3.73: Position of ground terminals IP 00, D en-
closures
3. How to Install
VLT
®
HVAC DRIVE High Power
Instruction Manual
52
MG.11.F1.22 - VLT
®
